Wacker Neuson LTN6L-V - Generator Capacitor Excitation Schematic 50 Hz

wc_tx003106gb.fm
74
Schematics LTN 6L-V

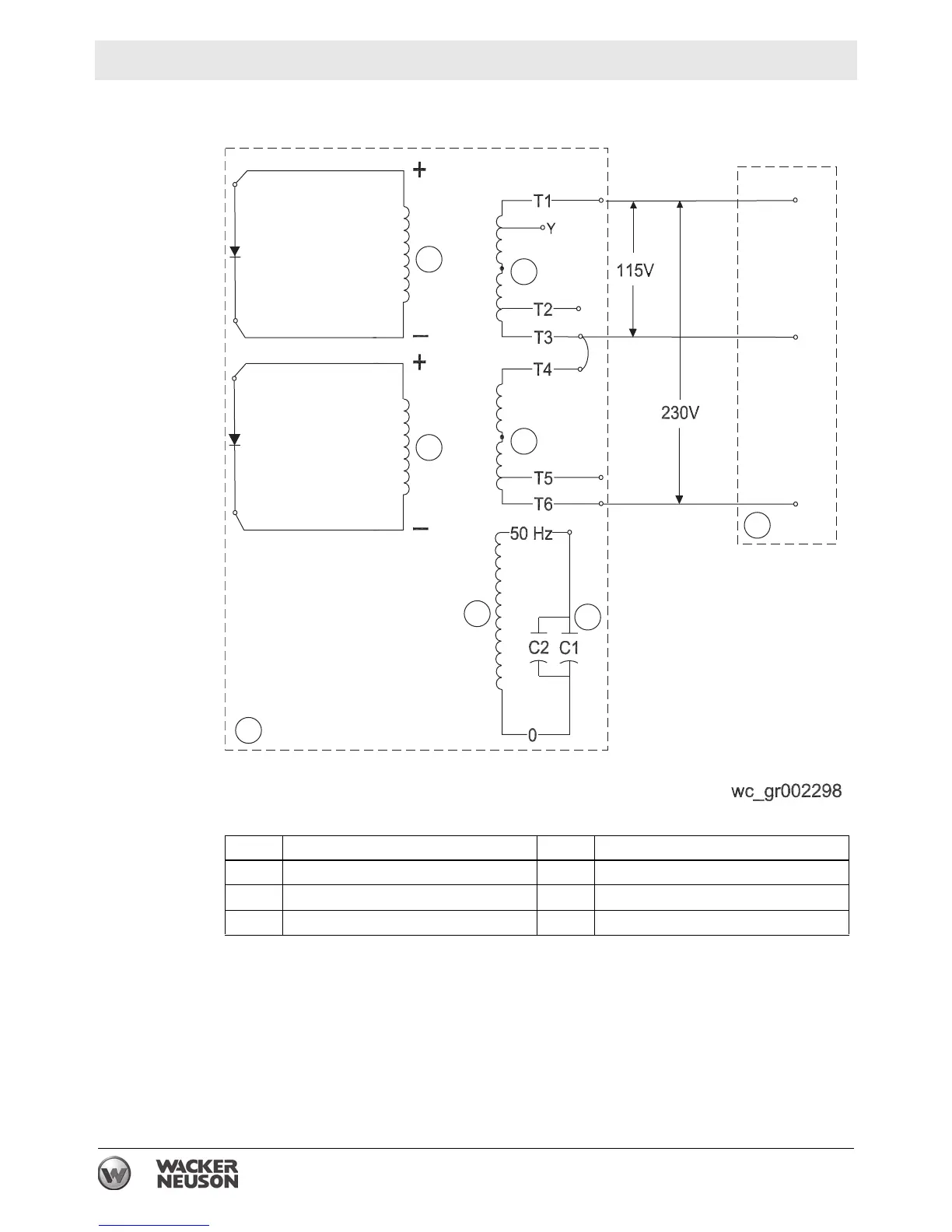

9.2 Generator Capacitor Excitation Schematic 50 Hz
Ref. Description Ref. Description
1 Rotor 4 Capacitor
2 Stator 5 Generator/Terminal block
3 Excitation coils 6 Control box-Main circuit breaker
P3
P2
P1
1
1
2
2
3
5
4
6
