LTN 6L-V Maintenance
Continued from the previous page.
Perform the procedures below to remove and install the lamp.
Removing the
lamp

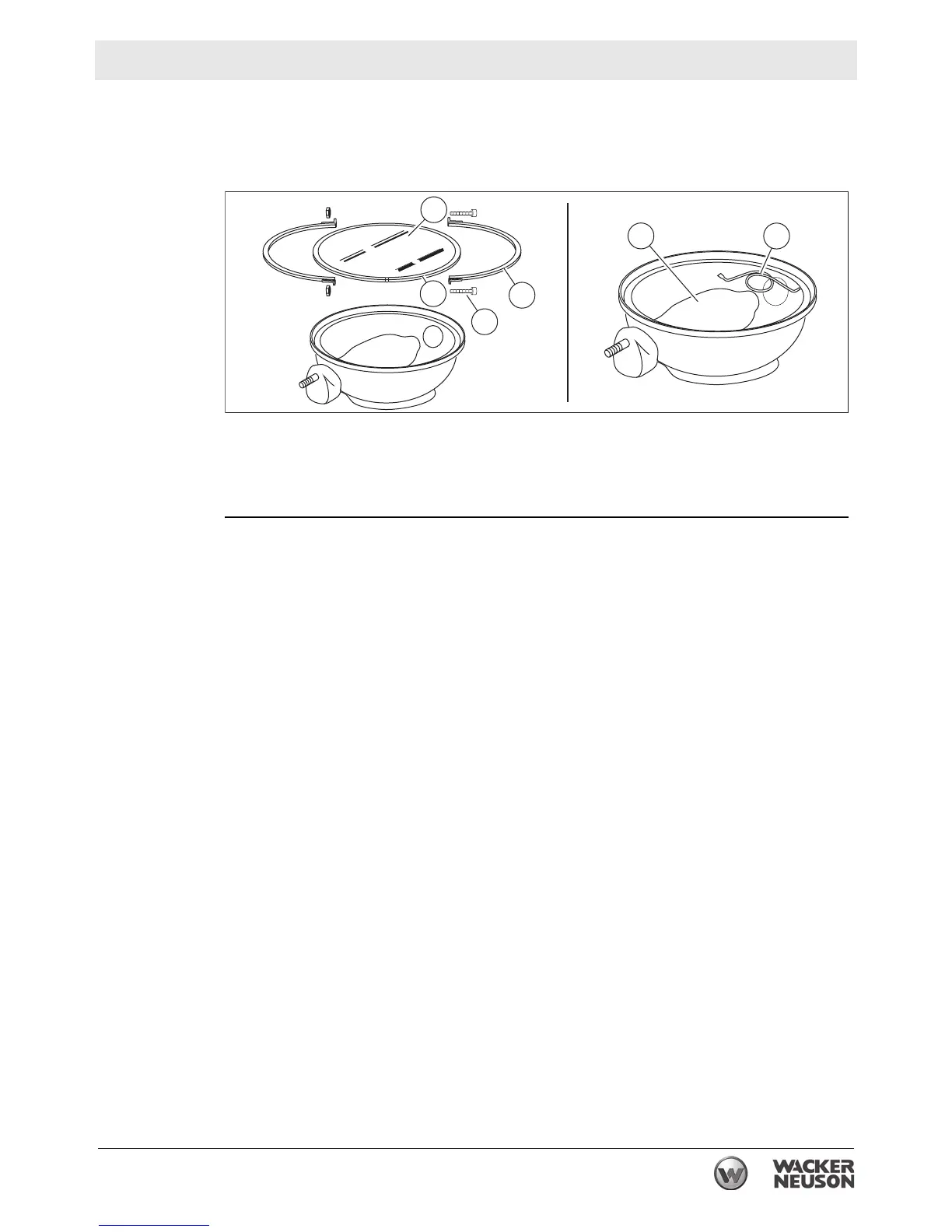

1. Remove the screws (a) securing the flange rings (b) and remove the flange
rings.
2. Remove the lens (c) with the gasket (d) attached.
3. Remove the hardware securing one side of the lamp stabilizer (e). Once
removed, swing the lamp stabilizer to the side and unscrew the lamp (f).
Installing the
lamp
1. Screw the lamp in firmly, but not forcibly, to minimize loosening due to vibration.
Secure it with the lamp stabilizer.
2. Install the gasket around the lens and secure the lens to the reflector with the
flange rings and screws.
wc_gr005881
a
f
e
d
b
c
