4.16 Parking Brake

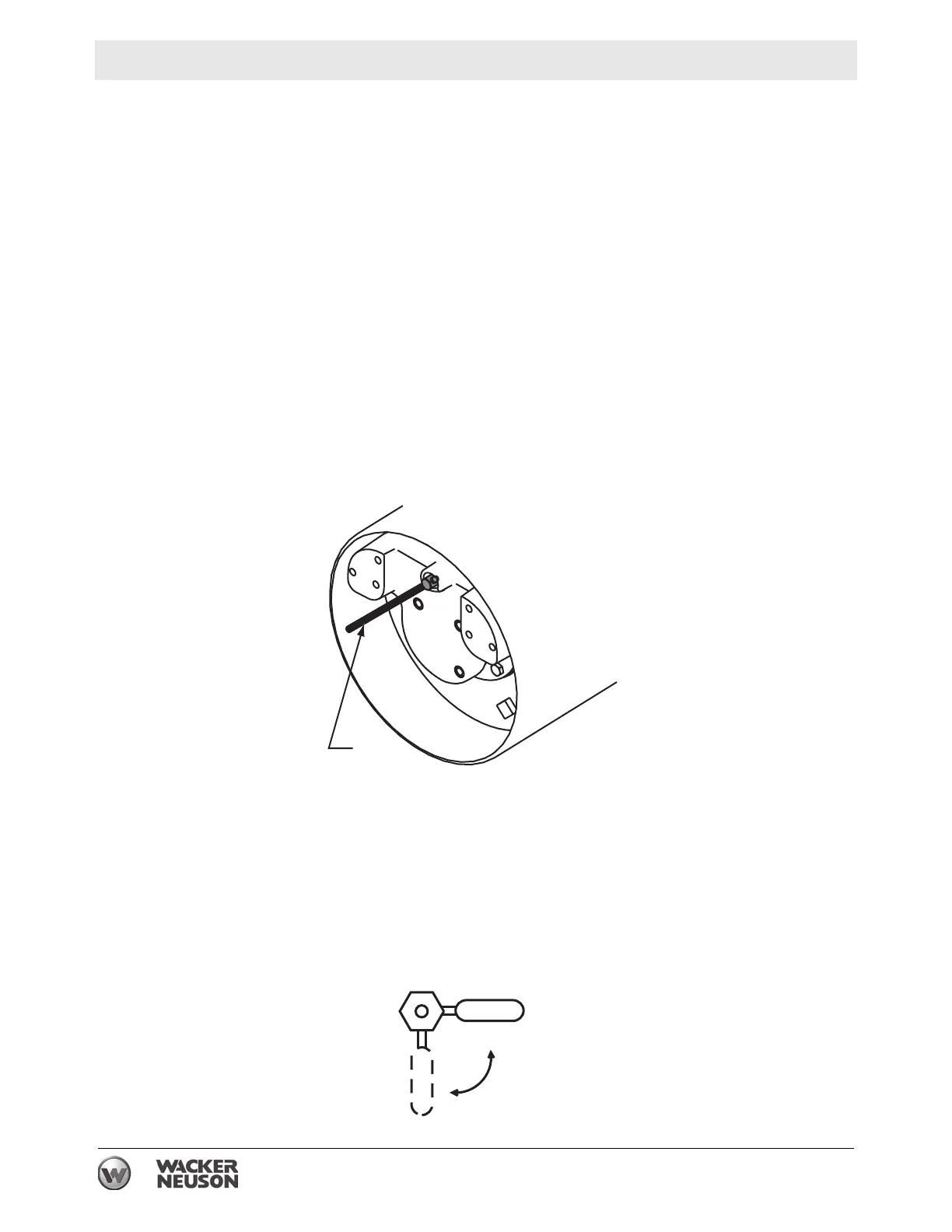

See Graphic: wc_gr001343
The parking brake is used to ensure that the machine will not roll when
not in use. It engages the weld stops on the drum, therefore a small
amount of movement is possible before the brake will catch and stop
the machine.
To disengage the parking brake:
Rotate the handle (a) 90° clockwise and bring it to rest in a shallow
detent.
To engage the parking brake:
Rotate the handle (a) 90° counterclockwise and allow it to rest in the
deep detent.
NOTICE: The parking brake is designed to hold the machine on an
incline with the engine off. Do not drive against the parking brake in the
engaged position. The brake may bend and damage the machine.
4.17 Watering System
See Graphic: wc_gr001344
The RD 7 is equipped with a water control valve which allows the roller
to be used wet or dry, and a sprinkler system to distribute the water
evenly across the drums. The water is gravity fed to the sprinklers
when the control valve is in the OPEN (horizontal) position (a).
