WM 90 Repair Recoil Starter
wc_tx000627gb.fm 83
Reassembly

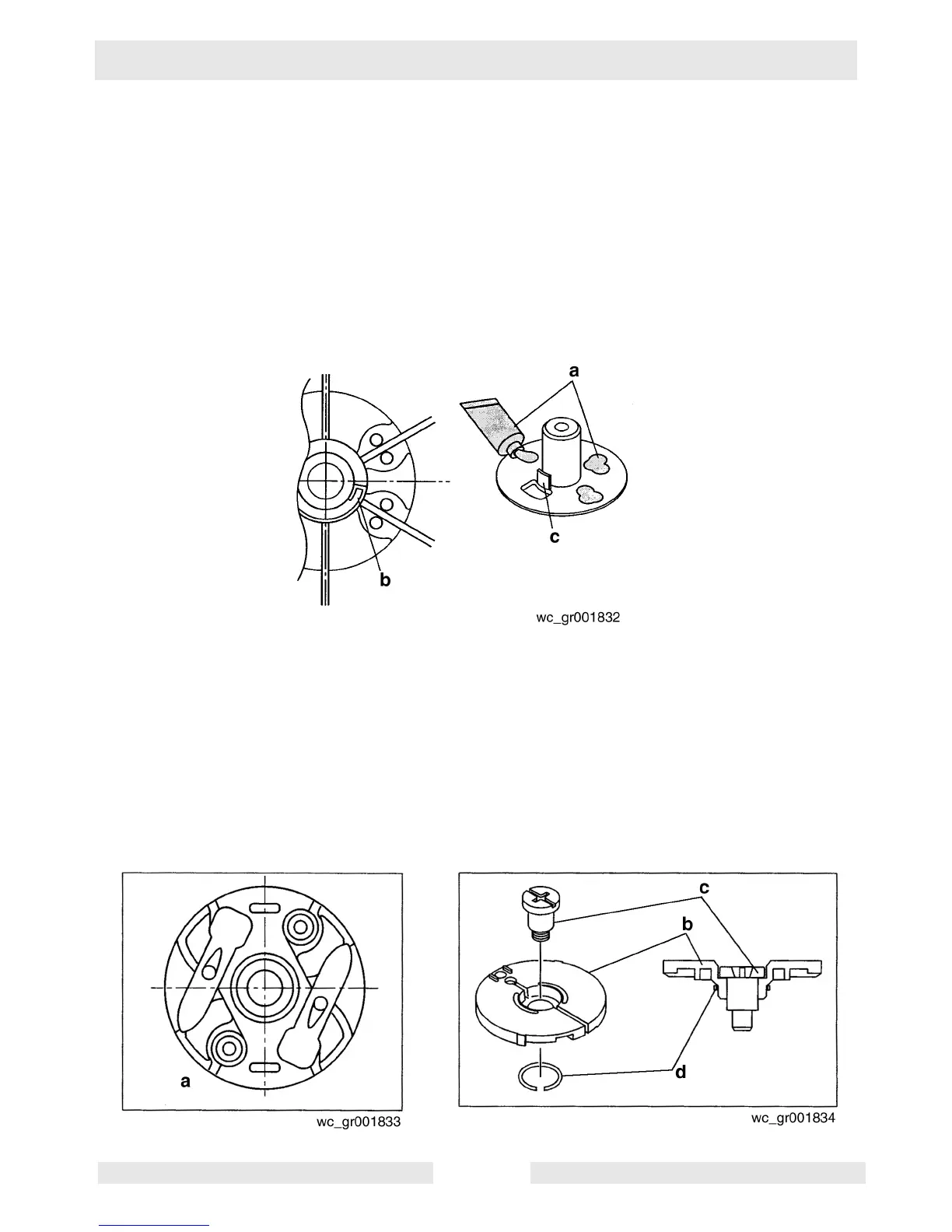

See Graphic: wc_gr001832
Re-installing the reel:
10.1.11 Apply grease (Exxon Unirex or equivalent) (a) to the surface of the
case.
10.1.12 Adjust the position of the inner end of the spring reel. Reference (b):
position where the inner end of the spring touches the rib of the
bearing.
10.1.13 Hold the reel in such a way that the inner end of the spring hooks onto
the shaft hook (c) and then place the reel carefully back into the case.
See Graphic wc_gr001833 and wc_gr001834
Reinstalling the components:
10.1.14 Mount the ratchet into the reel. The ratchet should be in the closed
position (a).
10.1.15 Mount the ratchet guide assembly (b), taking care to not move the
ratchet or lose the friction spring (d).
10.1.16 Tighten the set screw (c). Torque to 5.5 Nm (4.0 ft.lbs.).
