Recoil Starter WM 90 Repair
wc_tx000627gb.fm 84

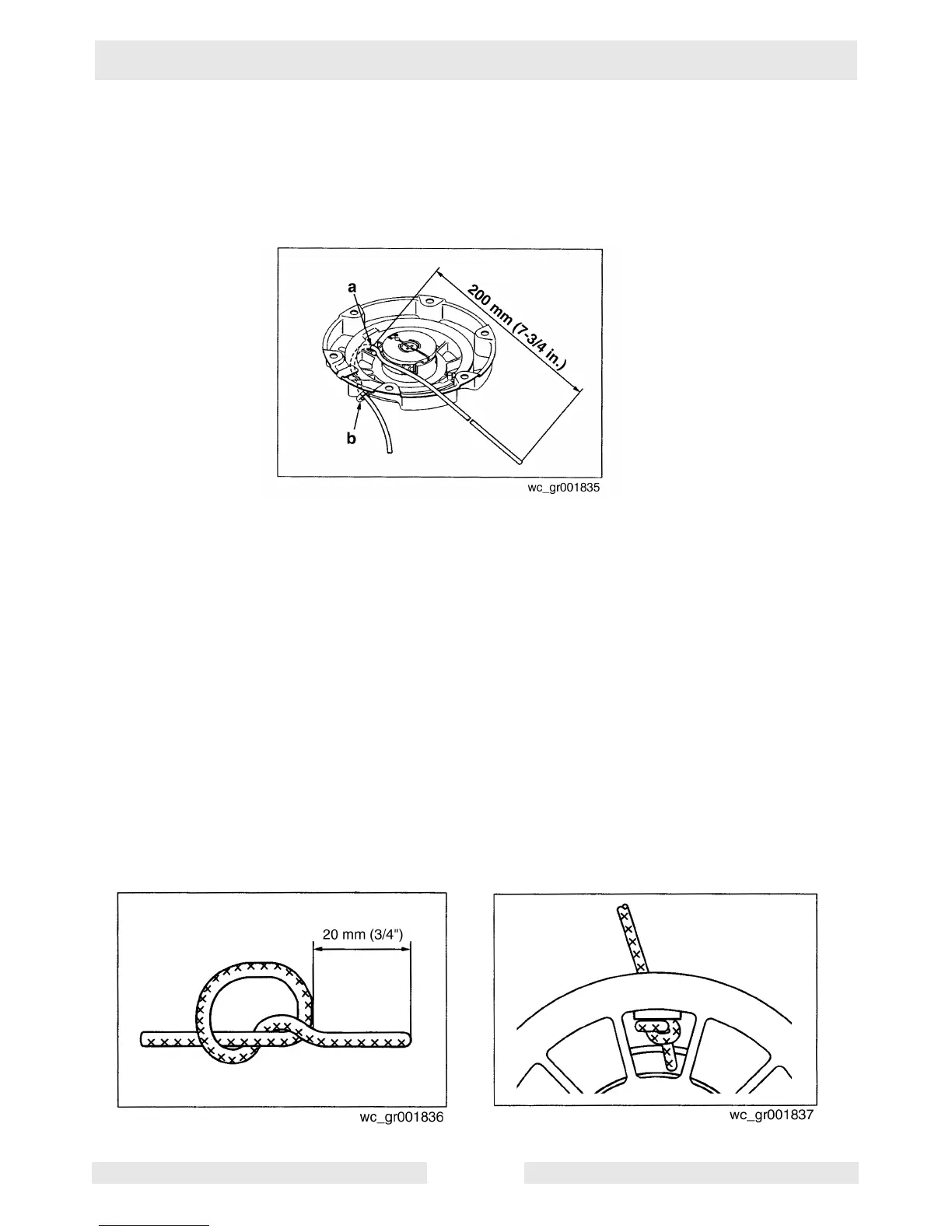

See Graphic: wc_gr001835
Tensioning the reel spring:
10.1.17 Grip the case and turn the reel 6 times counterclockwise.
10.1.18 Rotate the reel so that the rope hole (a) is aligned with the rope guide
(b).
See Graphic: wc_gr001836 and wc_gr001837
Installing the rope:
Note: This procedure requires help from an assistant.
10.1.19 Pass the rope through the rope guide and the rope hole of the reel and
pull through approximately 20 cm (7-3/4 in.) out of the reel.
10.1.20 Tie a knot in the end of the rope.
10.1.21 Put the rope into the reel, taking care that the rope end does not stick
up.
10.1.22 Grasp the rope firmly with one hand approximately 50 cm (19-5/8 in.)
from the rope guide and keep the rope tense, taking care that the rope
is not pulled into the reel.
10.1.23 Release the reel carefully and allow the rope to be wound back slowly
by the force of the spring until the knob reaches the rope guide.
