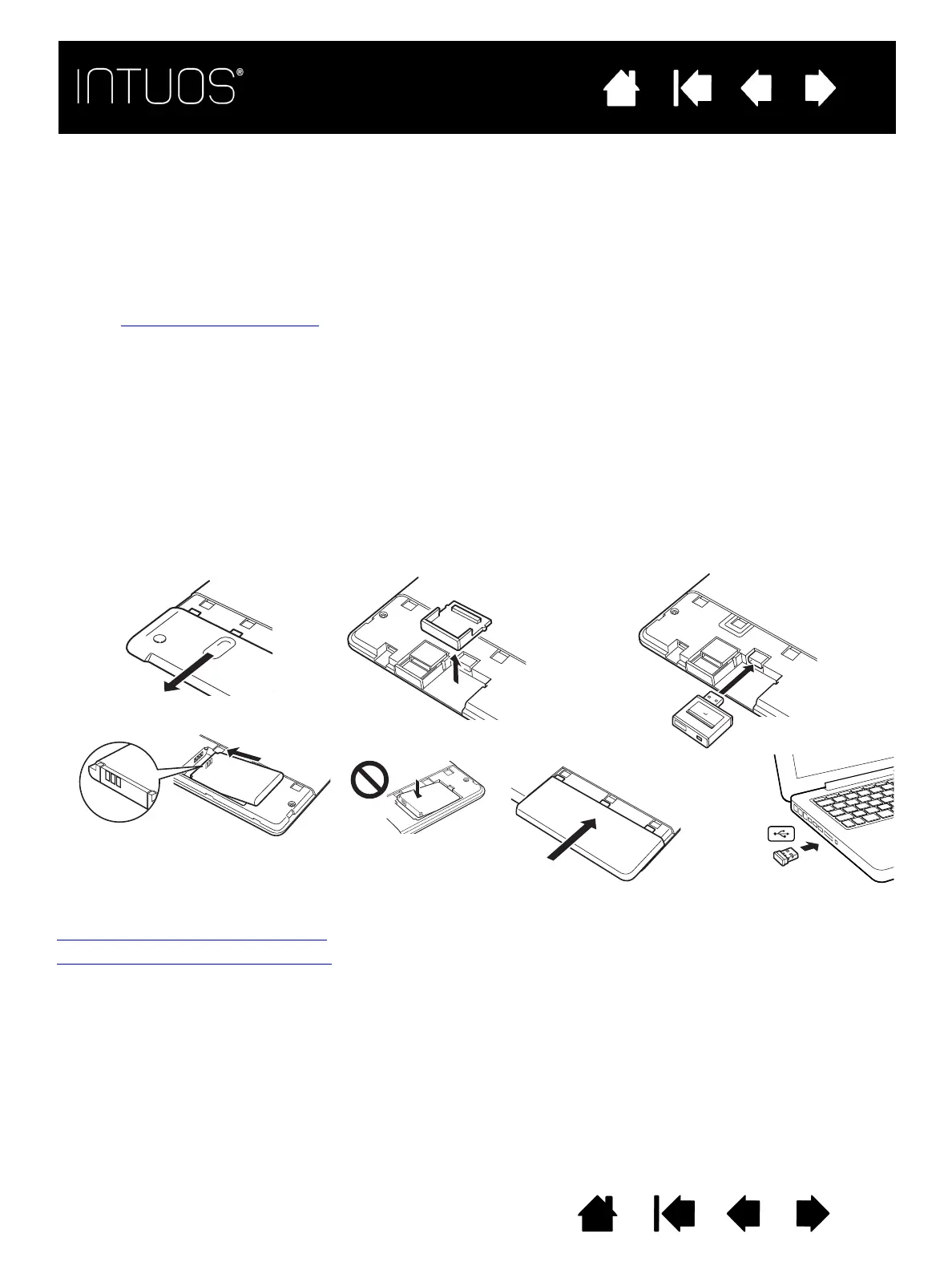

WIRELESS SETUP
Configure Intuos for wireless operation.
1. If you have been using Intuos as a wired tablet, disconnect the USB cable.
2. Turn the tablet over. The wireless compartment is on the left, and the battery compartment is on the
right.
3. Remove the wireless compartment cover (A) and the wireless module spacer (B).
Important: Save the module spacer. You may want to use it as a tool for removal of the wireless module.
See Wireless module removal
.
4. Install the wireless module and receiver components (C). Make sure the connector is fully seated.
5. Replace the wireless compartment cover.
6. Remove the cover from the battery compartment.
7. Install the battery by aligning the contacts as shown (D) and pressing the battery into place.
Note: Do not press straight down on the battery to install it. Align the contacts and press that end of the
battery into place before pressing down the other end.
8. Connect the Wacom wireless receiver to an active USB port on your computer or USB hub (F).
9. If you have not already done so, turn on your computer and wait until it is ready to use.
Continue for instructions on how to connect wirelessly.
Establishing a wireless connection
Optimizing the wireless connection
B
C
D
EF
A

WACOM INTUOS CTL-480 Specifications

General

Model Number	CTL-480
Tablet Type	Pen Tablet
Pressure Levels	1024
Resolution	2540 lpi
Connection	USB
Report Rate	133 pps
Touch Ring	No
Active Area	152 x 95 mm (6.0 x 3.7 in)
Compatibility	Windows, macOS
ExpressKeys	4 customizable keys
