WAGNER EPG-SPRINT - Connecting the Automatic Spray Guns

24
EPG-SPRINT.
P_01114
I
O
OPERATING MANUAL
VERSION 08/2010 ORDER NUMBER DOC 2305222

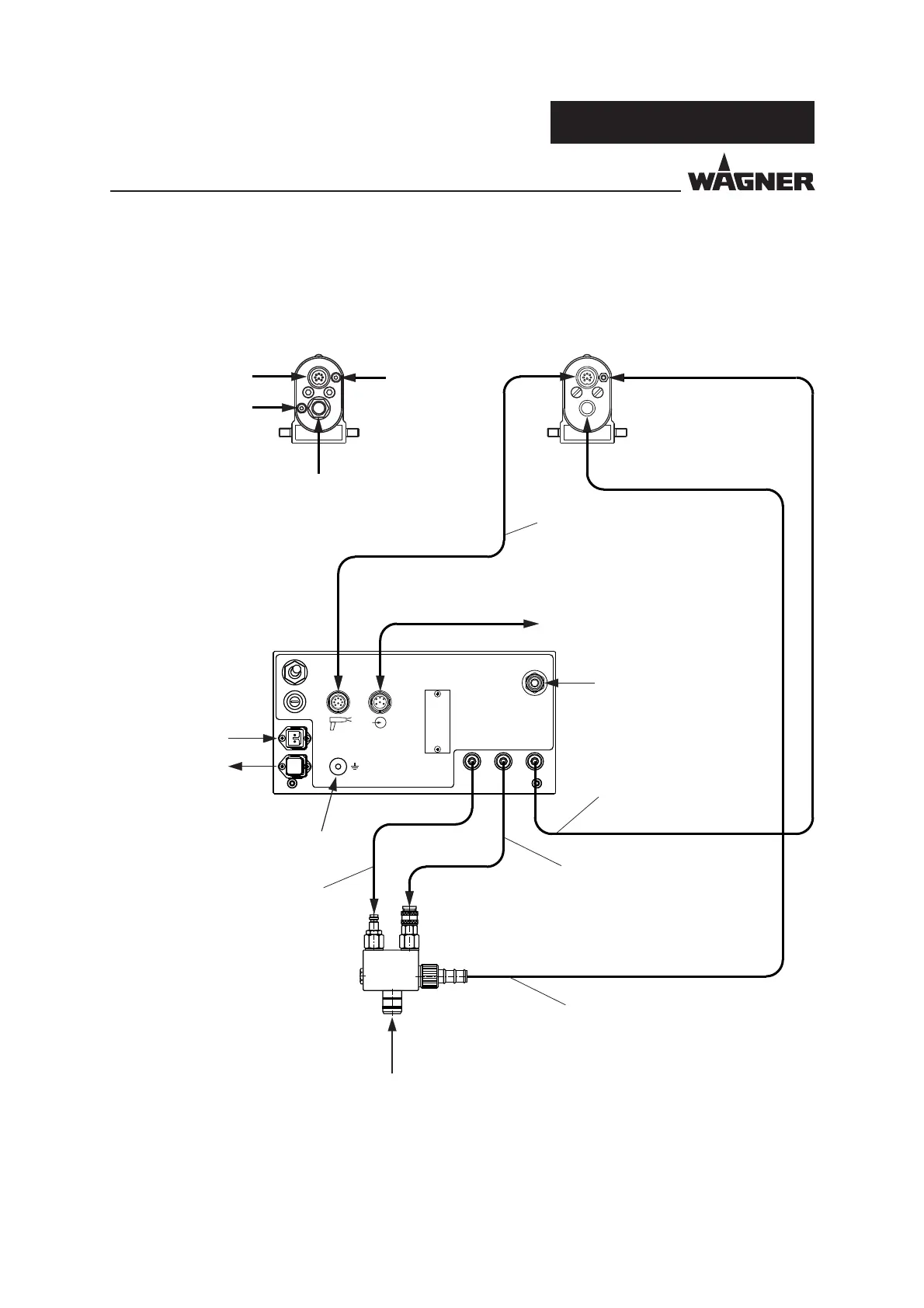

5.2 CONNECTING THE AUTOMATIC SPRAY GUNS
Tribo
spray gun*
Corona
spray gun
Mains power
Grounding cable to system ground
e.g. from the powder container
Compressed air main supply
(0.6-0.8 MPa; 6-8bar;
87-116 psi)
Hose diameter:
8 mm; 0.315 inches
Powder injector
Dosage air, blue
Feed air, red
Pulver feed, transparent
Atomizing or Tribo air,
black
Electrical connection cable
EPG-SPRINT
Mains power
output to the
next control unit
Electrical connection
Tribo air
Atomizing air
Powder hose connection
to the CCM Prima
* A Y distributor (order no. 9990149) is needed to divide the different types of air.
