6.5.5 DISPLAY OF ACTUAL HIGH-VOLTAGE VALUE
Procedure:
1. Press “high-voltage“ button 27 for
around 2 seconds. Yellow LED 28
fl ashes quickly.
The actual high-voltage value is
shown in the LED display 19 for
5 seconds, the display returns to
the previous display after this time.
The actual value display can be inter-
rupted also before expiration of the
5 seconds by pressing a selection
button or turning rotary controller.

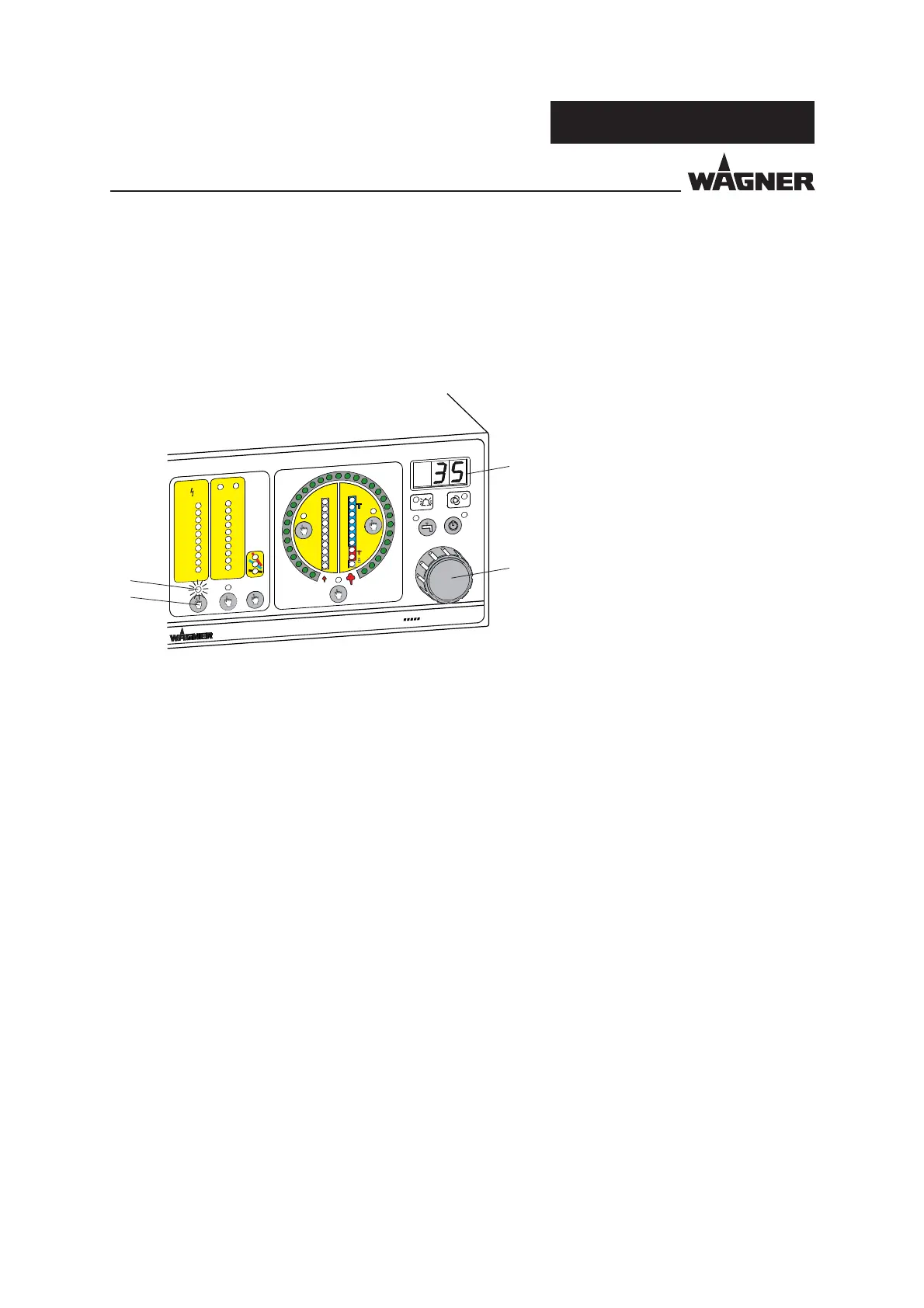

The actual high-voltage value can be displayed during the coating process in LED display
19.
28
27
19
24
