OPERATING MANUAL
VERSION 08/2010 ORDER NUMBER DOC 2305222
Setting example: Parameter C11
This parameter is used to set the gun type (Tribo or Corona). The control unit is factory-set
to Corona “cor“.
Procedure:

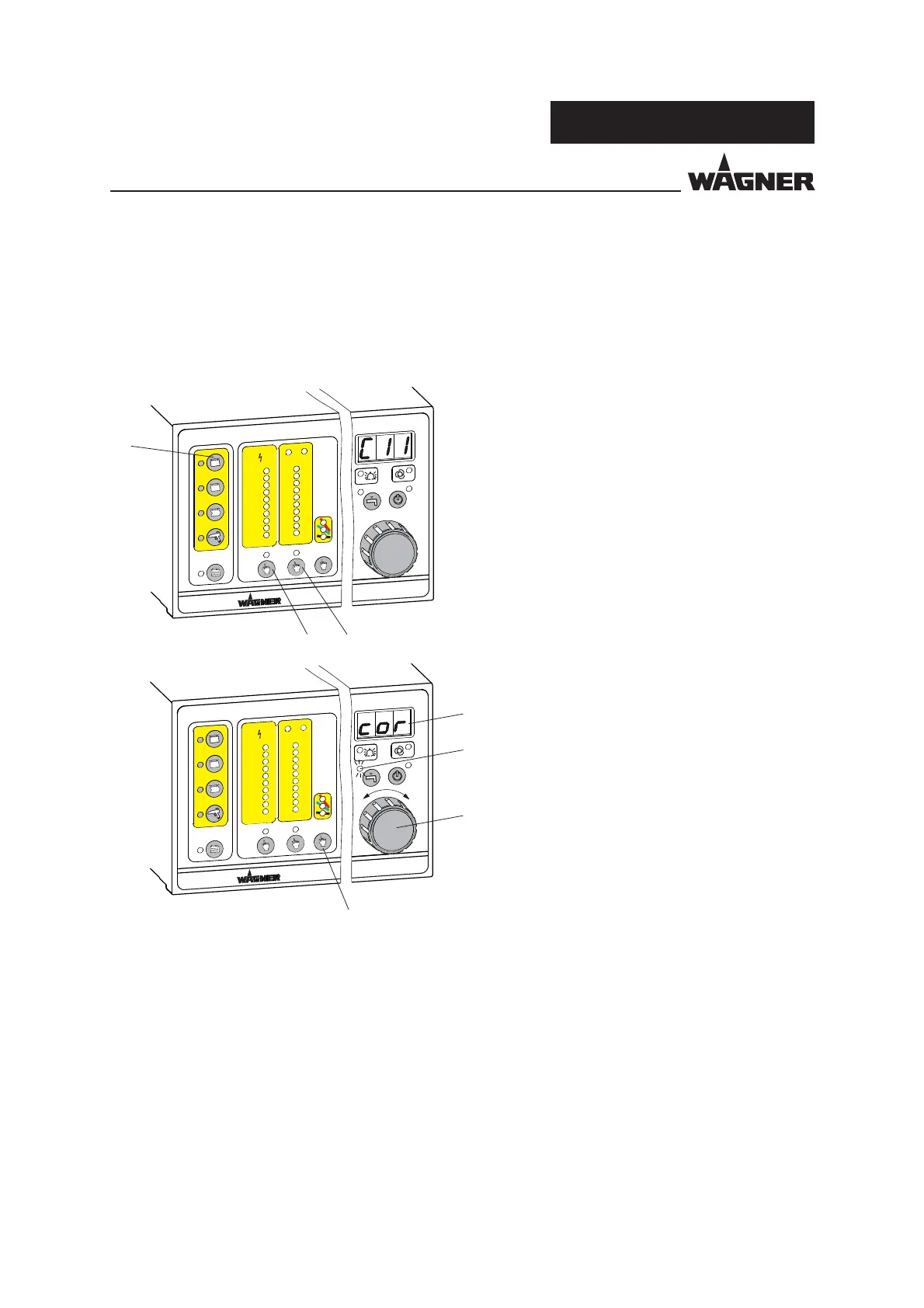

1. If parameter C11 is not set on the
control device, select parameter group 1
by pressing program button 5 and use the
“high-voltage“ button 27 and the “current
limiting“ button 29 to set the parameter
to C11.
2. The parameter value is now shown by
pressing the “characteristic slope“ button
31.
3. The LED display 19 shows “cor“. At the
same time, the blue “rinse“ LED 18 will
fl ash.
4. All setting options can then be viewed
in turn by turning the Universal rotary
controller 24.
The display shows:
● “cor“ for Corona manual and automatic
guns.
● “tri“ for Tribo manual and automatic
guns.
● “aut“ for automatic switching from Tribo
to Corona, if the user frequently
switches between Tribo and Corona.
Limitation: When the control unit is
switched on, a Corona gun is always
shown. Only when the high-voltage and
powder feed are switched on is a Tribo
gun recognized.
This setting is retained until the control
unit is switched off.
31
19
24
27
29
18
5
