Operating manual Piston Pump EvoMotion 5-125
14 Spare Parts
Order number 2316596 | Edition 03/2021 53

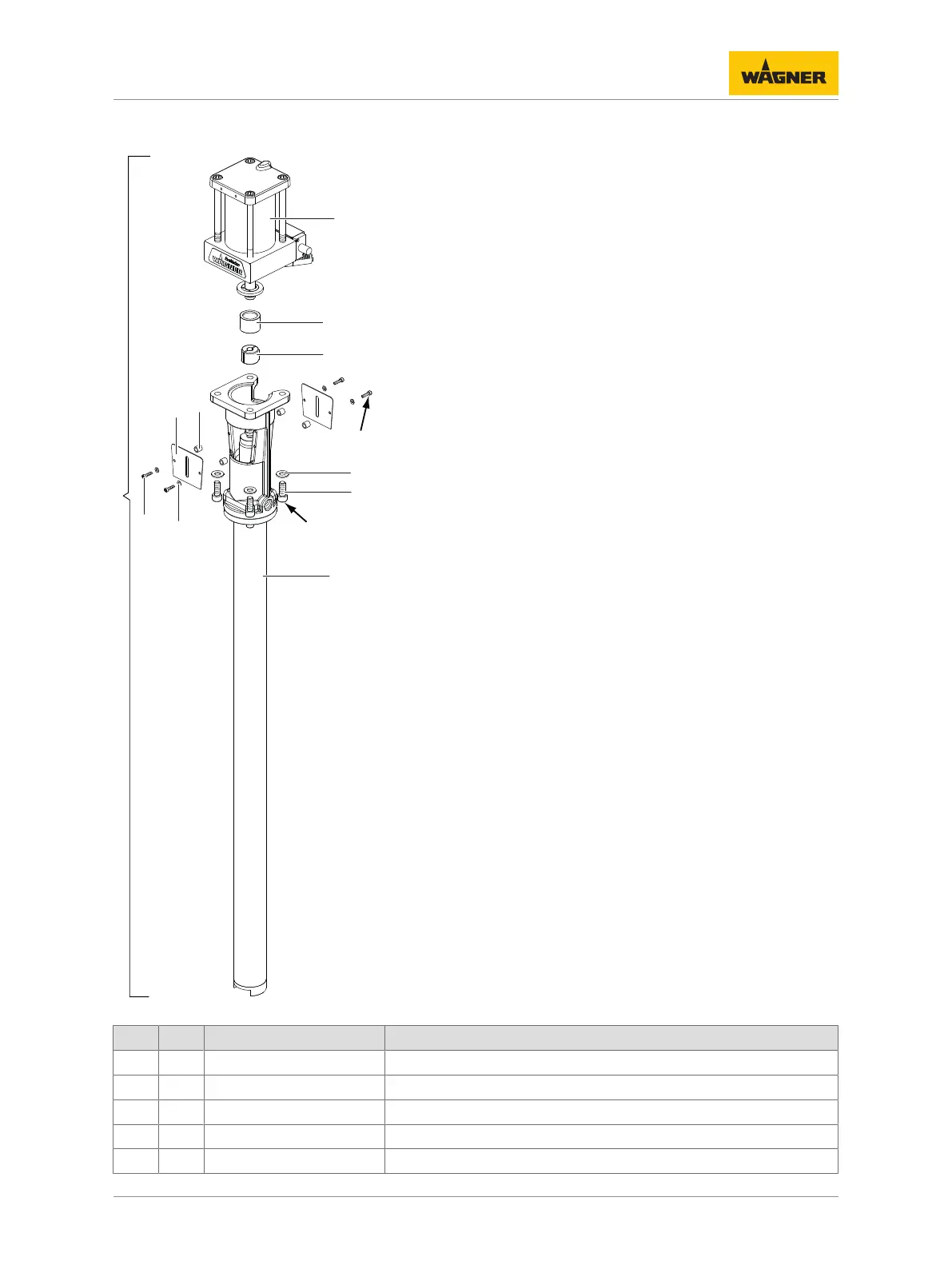

14.3 OVERVIEW OF THE COMPONENTS
1
2
B_03468
3
4
5
6
7
8
9
10
11
20 Nm; 14.7 lbft
7 Nm; 5.1 lbft
Pos Stk Order no. Designation
1 1 U1B05125D EvoMotion 5-125 PE/T
2 1 U3B08018060A Air motor M80 EM C60
3 1 U2B125FC Fluid section 125 St PE/T
4 1 A112.62 Protection - connecting piece
5 1 A111.02 Connecting piece M/P
