WAGNER EvoMotion 5-125 - Fluid Section 125

Operating manual Piston Pump EvoMotion 5-125
14 Spare Parts
Order number 2316596 | Edition 03/2021 57

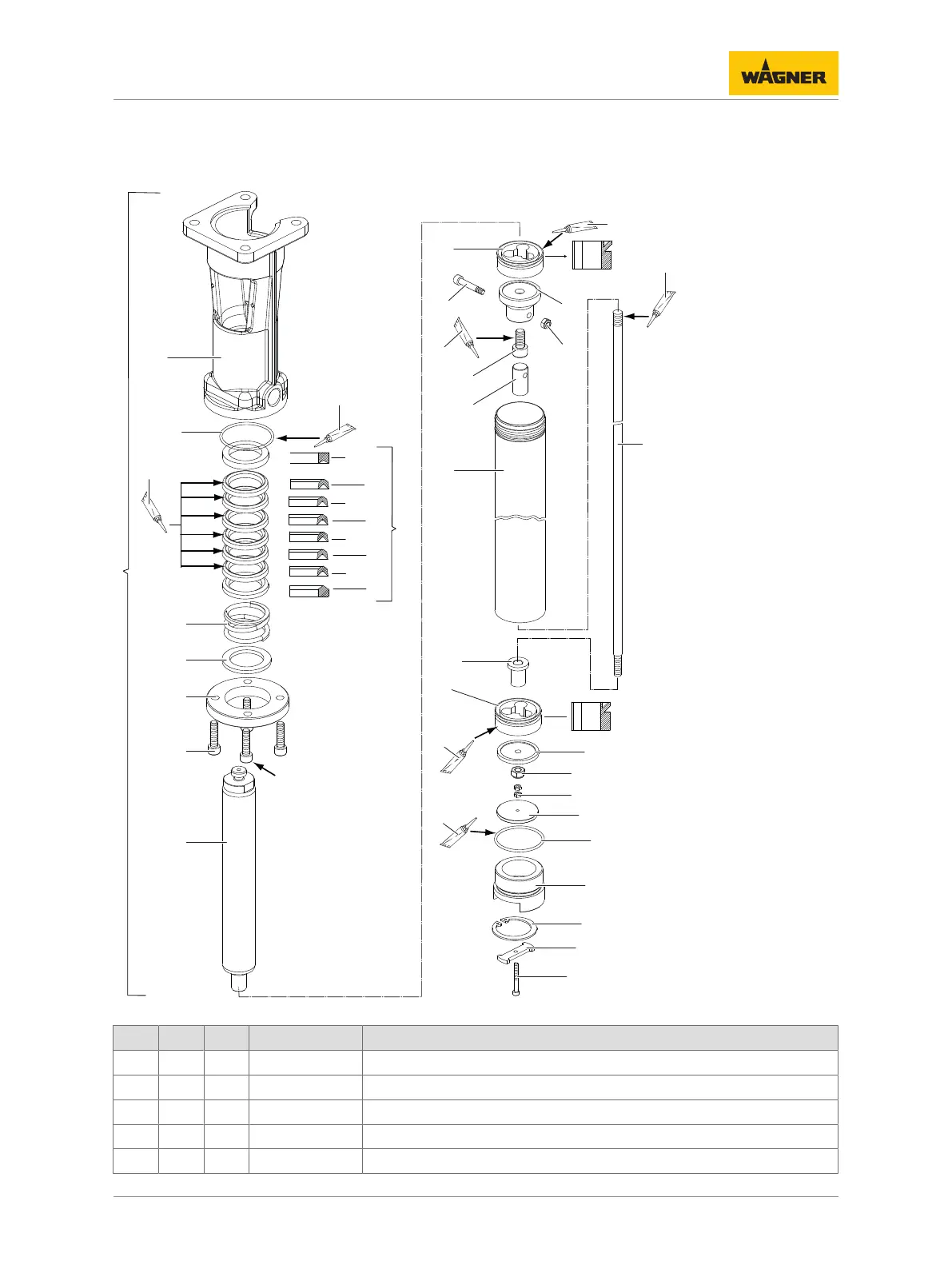

14.5 FLUID SECTION 125
B_03470
1
2
12
14
15
16
18
10
19
20
21
22
23
24
25
26
27
3
5
6
7
8
9
28
10
11
13
17
30
31
30
4
31
30
31
29
33
33
32
33
33
32
18 Nm; 13.2 lbft
33
Pos K Stk Order no. Designation
1 U2B125FC Fluid section 125 St PE/T
2 1 F142.21 Spacer MP
3 ♦⋆ 1 L136.06 O-ring
4 ♦⋆ 1 T971.00E Packing PE/T 36/50
5 1 H212.03 Spring, upper
