WAGNER GA 5000EACIC - Page 41

41
GA 5000EAC
B_00137
Rmax < 1MΩ
OPERATING MANUAL
VERSION 09/2016 ORDER NUMBER DOC2360922
Minimum cable cross-section
Control unit 4 mm² (AWG 12)
Pump 4 mm² (AWG 12)
Paint tank 4 mm² (AWG 12)
Reciprocator 16 mm² (AWG 6)
Conveyor 16 mm² (AWG 6)
Booth 16 mm² (AWG 6)
Spraying stand 16 mm² (AWG 6)

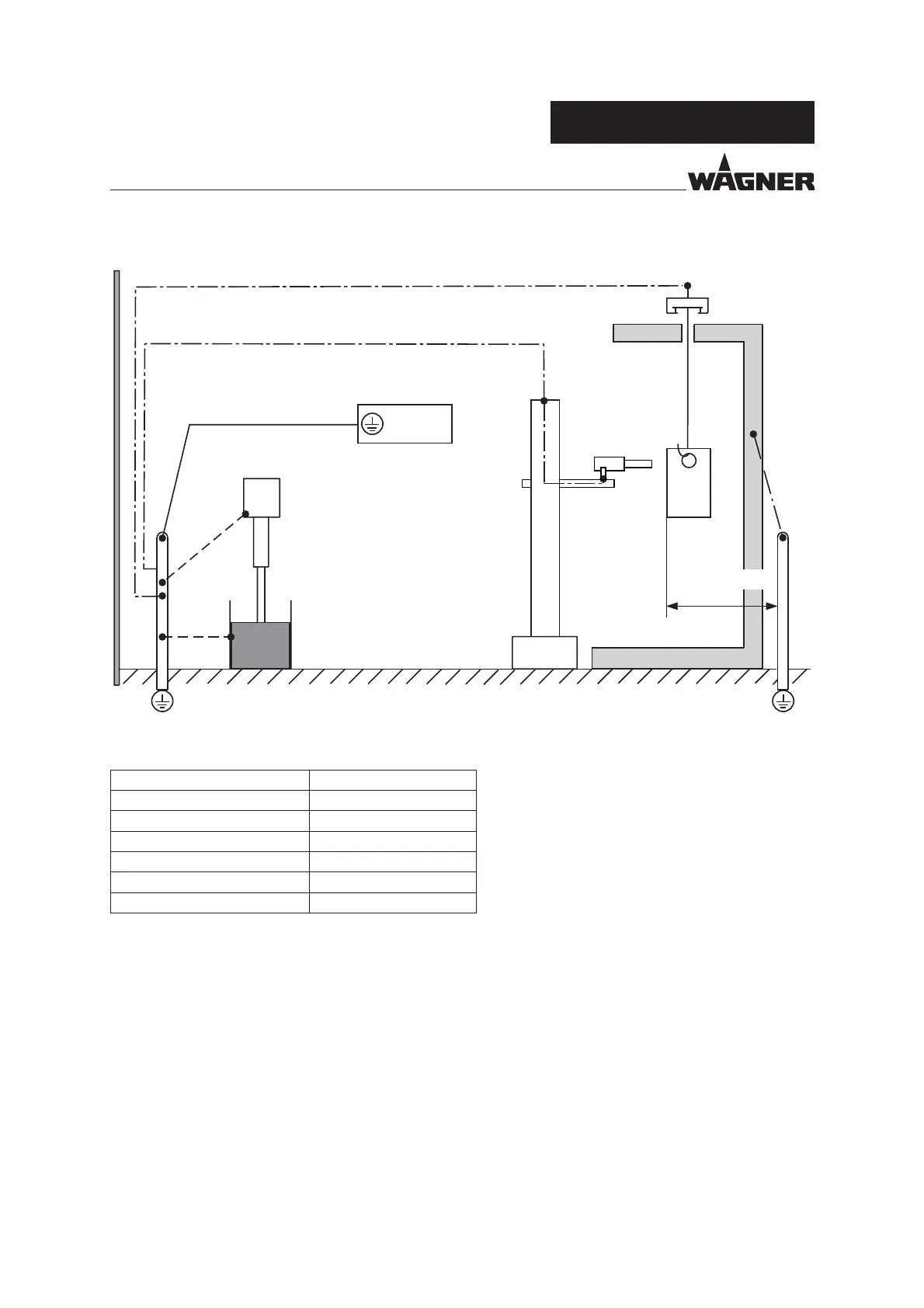

Grounding scheme (example)
Conveyor
Control unit
Grounding cable
Spraying stand
Floor, static dissipative
Work piece
Pump
Paint tank
Signal ground Signal ground
