WAGNER GA 5000EACIC - Accessories; Flat Jet Nozzles and Air Caps

86
GA 5000EAC
B_03210
"?
B_03209
B_03454
OPERATING MANUAL
VERSION 09/2016 ORDER NUMBER DOC2360922

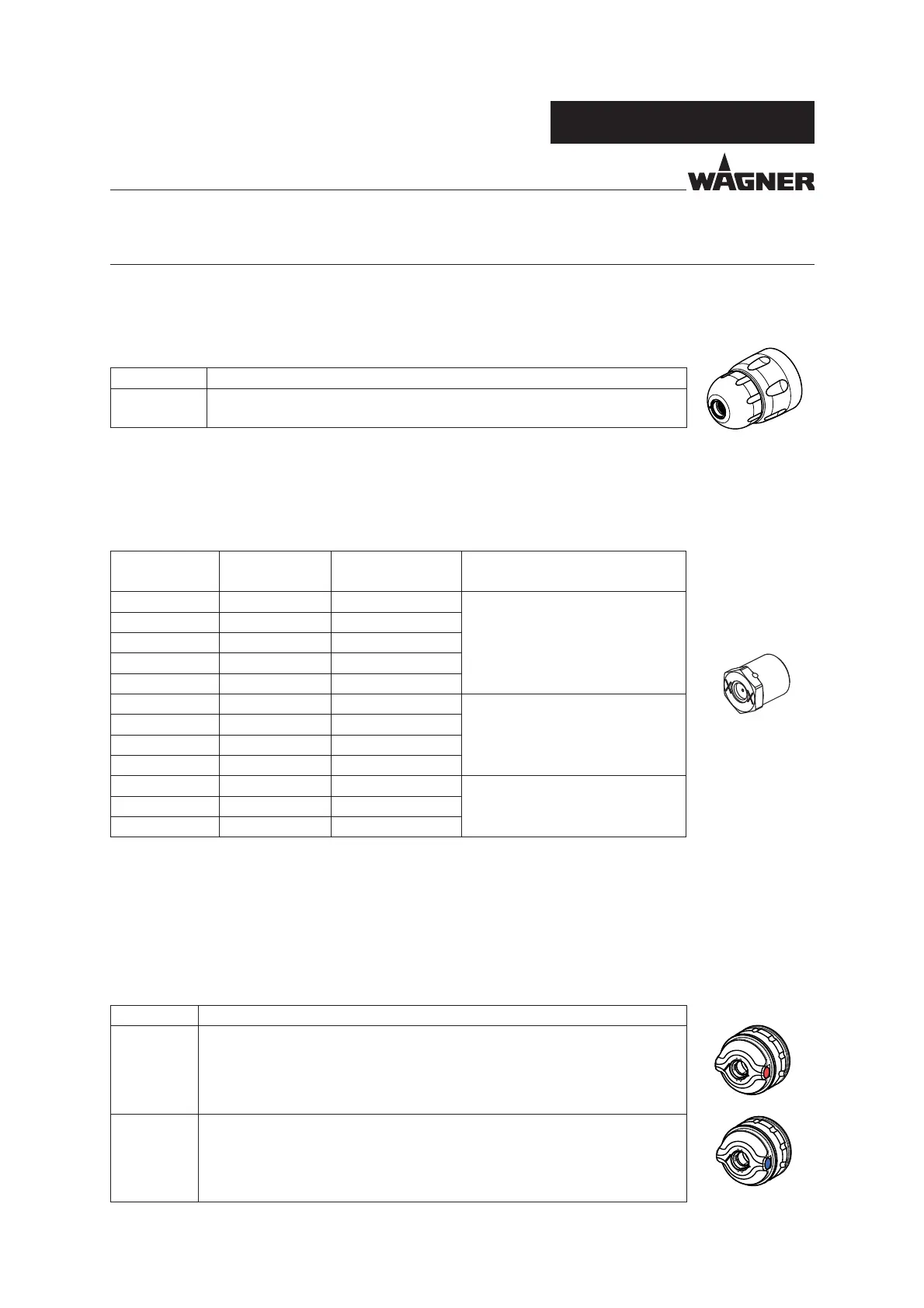

13 ACCESSORIES
13.1.1 ACR 5000 ROUND JET NOZZLE ATTACHMENT
Order No. Designation
2309883 ACR 5000 round jet nozzle attachment
(with nozzle spanner, without AC round jet nozzle insert)
Order No. Designation
2309882 Air cap ACF 5000 - LV suitable for low viscosity products (marked red).
2314203 ACF 5000 air cap - HV suitable for high viscosity products (marked blue).
13.2.1 ACF 5000 AIR CAPS FLAT JET
Order No. Marking Jet width Recommended edge  lter
mm; inch
132720 11 approx. 250; 10 yellow
132721 12 approx. 250; 10 200 mesh
132722 13 approx. 250; 10
132723 14 approx. 250; 10
132724 * 15 approx. 250; 10
132725 16 approx. 250; 10 black
132726 17 approx. 250; 10 100 mesh
132727 18 approx. 250; 10
132728 19 approx. 250; 10
132729 20 approx. 250; 10 white
132730 21 approx. 250; 10 60 mesh
132731 22 approx. 250; 10
* Standard version
Jet width in mm; inches at a distance of 30 cm; 11.8 inches from the object and at a pressure
of 10 MPa; 100 bar; 1450 psi.
13.1.2 AIRCOAT ROUND JET NOZZLE INSERTS
The round jet nozzles are especially suitable for spraying delicate parts, tubes, pro les and
complex work pieces.
13.1 ROUND JET NOZZLES
13.2 FLAT JET NOZZLES
