10.3.4 ASSEMBLING THE SPRAY GUN
Assembly aids:
Pos Order No. Description
2 * 9992698 Vaseline white, PHHV II
4 9992511 Loctite® 243
* Use Vaseline sparingly
Coat the hollow section with a brush.
Note: avoid the pin and hexagon.
(sparingly)

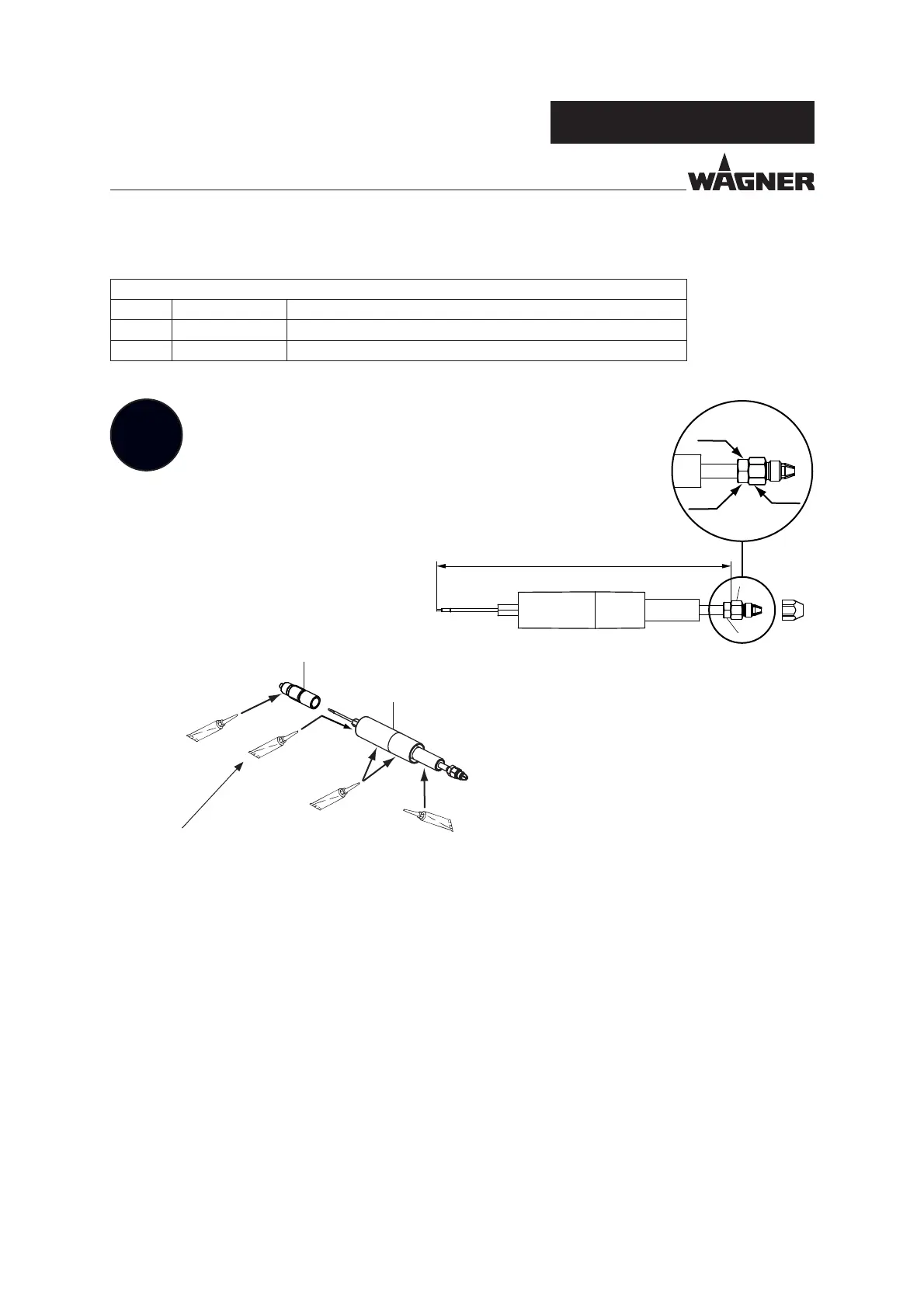

Valve rod unit:
Set length adjusting measure X with collet chuck (6)
and lock with a hexagon nut (2).
