76
GA 5000EAC
2
2
3
4
2
SW5
10
5
0.5 Nm
0.37 lb ft
SW7
0.4 - 0.5 Nm
0.3 - 0.37 lb ft
B_05787
1
0.8 Nm + 0.1 Nm;
0.6 + 0.07 lbft
OPERATING MANUAL
VERSION 09/2016 ORDER NUMBER DOC2360922
Wear gloves!
The outside thread of the packing (3) must be free of lacquer.

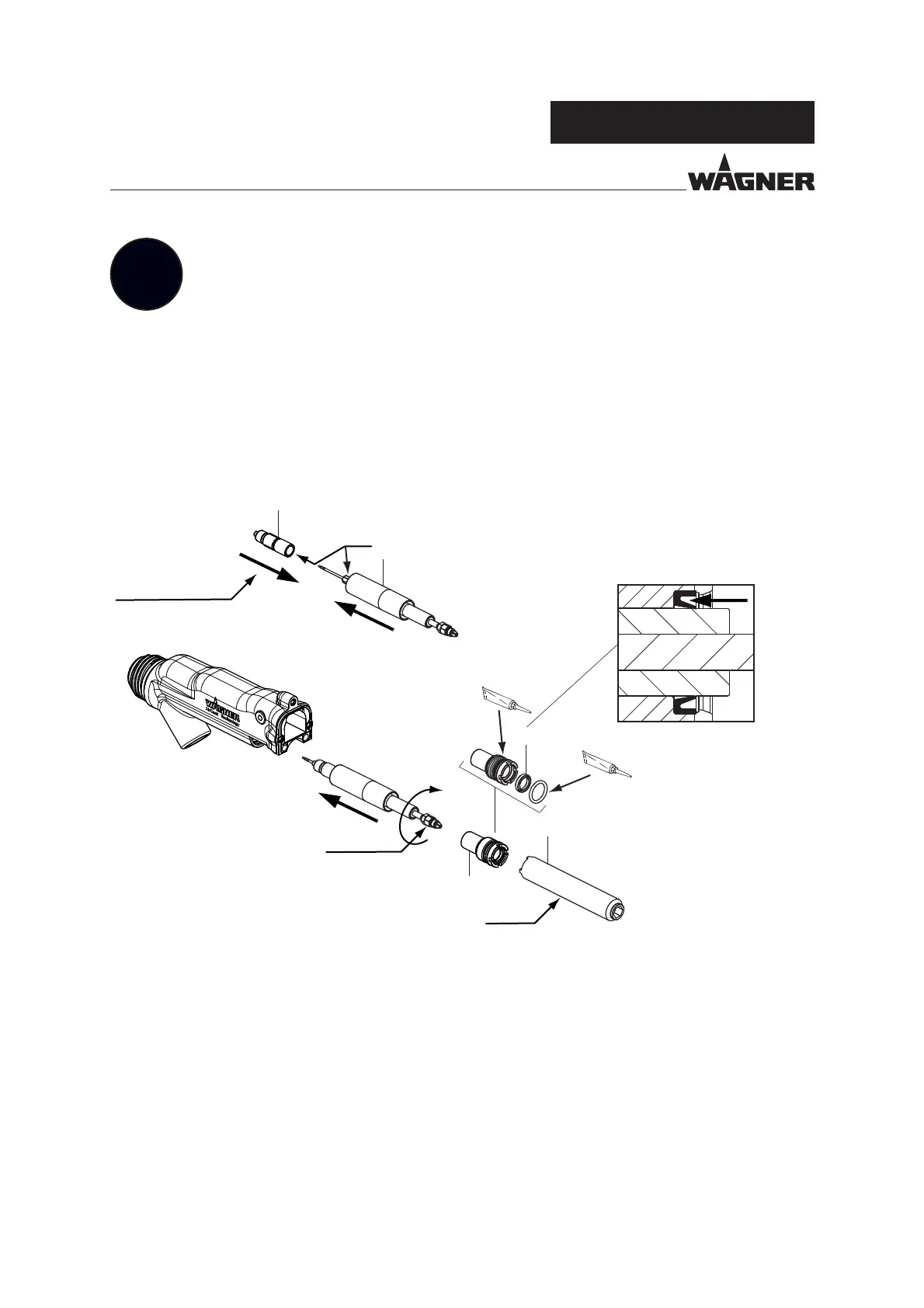

Valve rod unit (4) and packing (3):
- grease,
- slide together,
- screw together
Grease clamping screw (1) and mount using assembly tool (5).
Only as required (if the rod seal was
removed): Press in rod seal (10). In the
process, press only on the lowest area
of the rod seal.
