7.3 WORKING
Air regulation closed
= minimum shaping air
Air regulation fully opened
= maximum shaping air

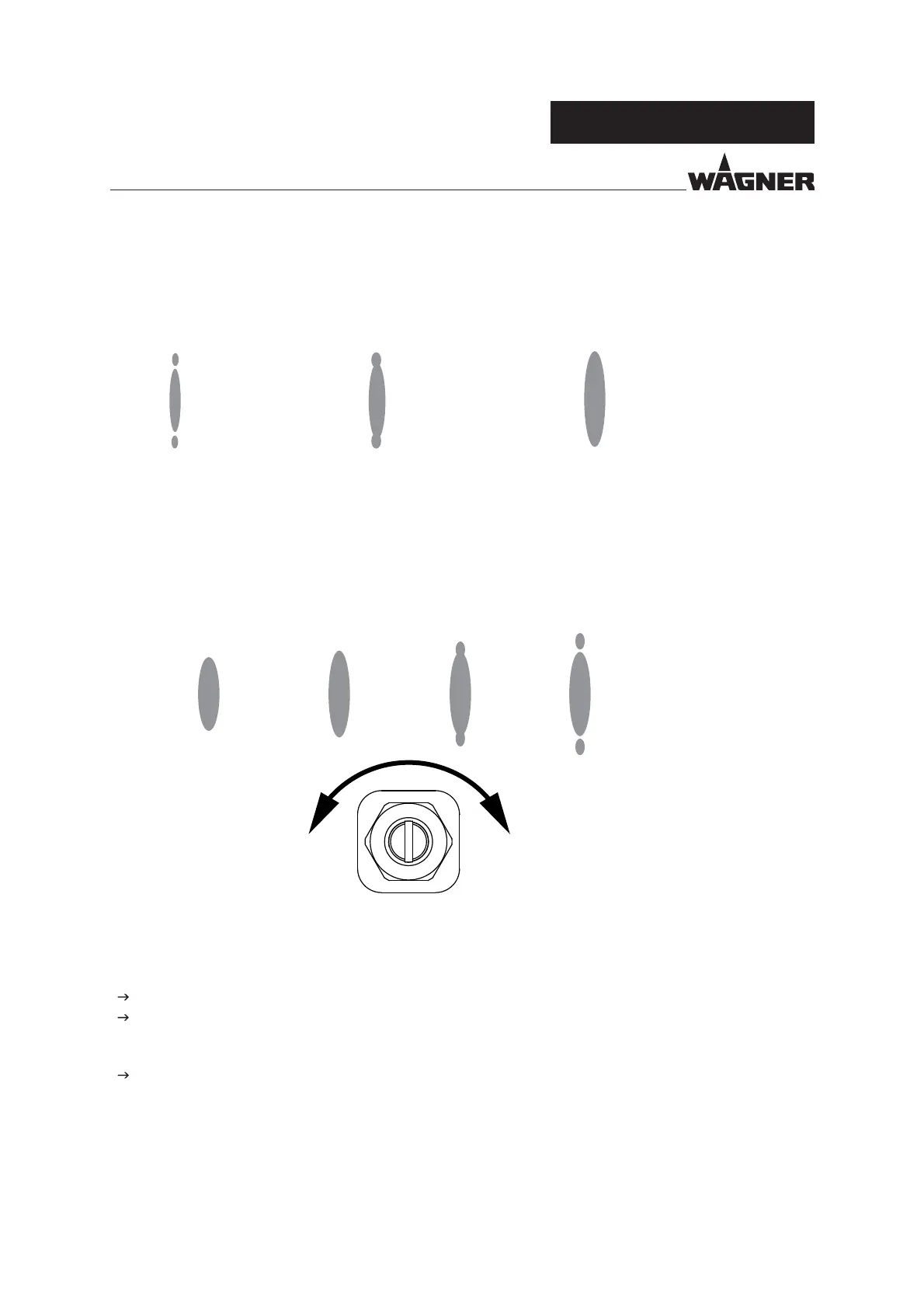

Spray pattern and air regulation
When IC variant the air regulation regulates the ratio of shaping/atomizing air.
When IC variant the shaping and atomizing air are set individually.
The spray pattern can then be adjusted to suit the object being sprayed. The illustration
shows the in uence of the regulator on the spray pattern.
Other nozzle sizes can be used to obtain larger or smaller spray patterns.
Changing the Flow Rate
Adapt product pressure
Use a di erent nozzle (see Chapter 13)
Changing the Spray Jet Width
Use a di erent nozzle (see Chapter 13)
No air Correct amount of airNot enough air
The air pressure regulator regulates the air supply (shaping and atomizing air) to the gun.
7.3.1 SETTING THE SPRAY PATTERN USING THE AIR PRESSURE REGULATOR
