WAGNER ProSpray 24 User Manual

38 ProSpray 24
g

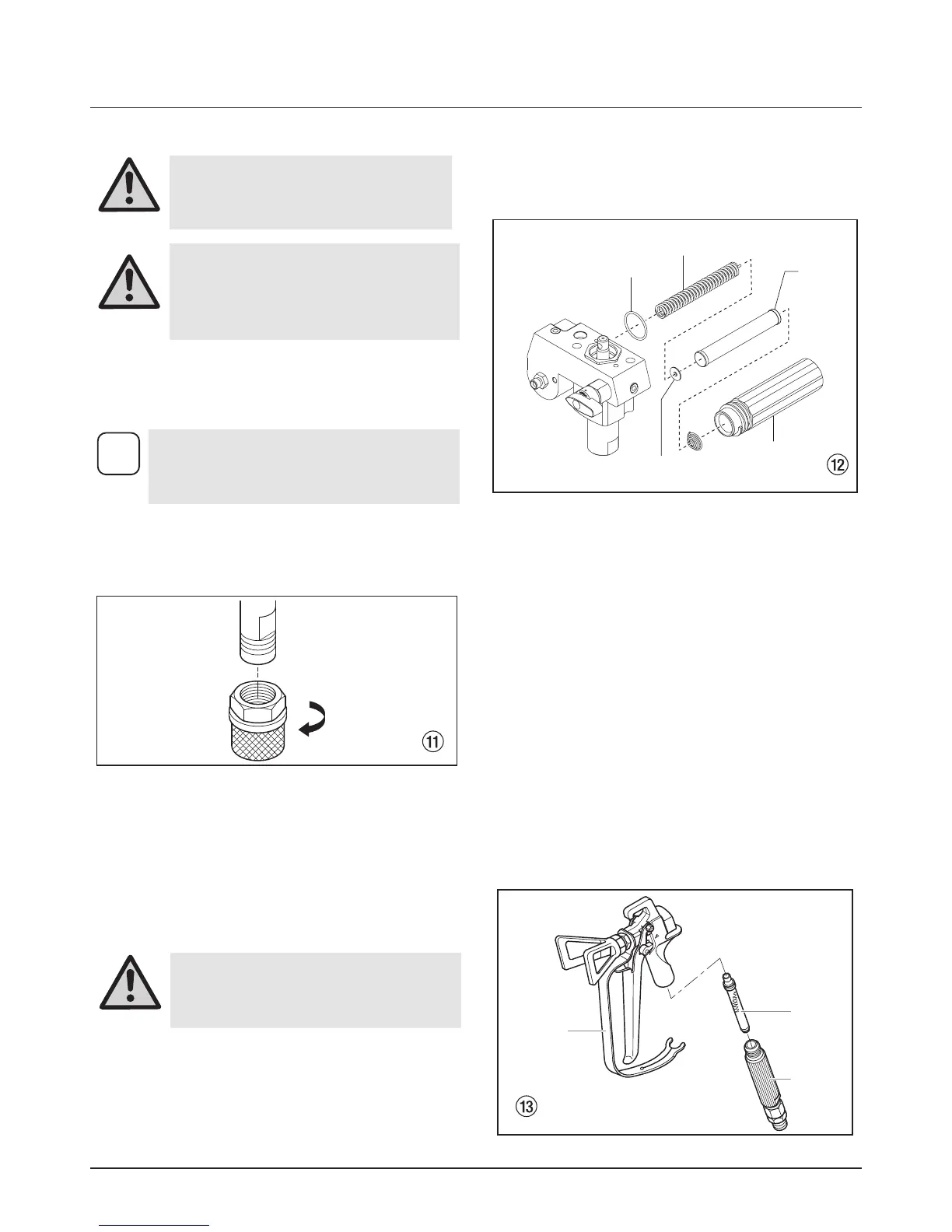

8.1 Cleaning unit from outside
Wipe down unit externally with a cloth which has been
immersed in a suitable cleaning agent.
8.2 Suction filter
– Screw off the filter (Fig. 11) from suction pipe.
– Clean or replace the filter.
Carry out cleaning with a hard brush and an appropri-
ate cleaning agent.
8.3
Cleaning the high-pressur
e filter
Clean the filter cartridge regularly.
A soiled or clogged high-pressure filter can cause a poor
spray patter
n or a clogged tip.
1. Turn the pressure regulator knob into the black zone
until it stops (no pressure).
2. Open the relief valve, valve position PRIME
(
k circulation).
3. Switch the unit OFF.
4. Unscrew the filter housing (Fig. 12, Item 1). with a
strap wrench.
5.
Pull the filter cartridge (2) fr
om the bearing spring (3).
6. Clean all the parts with the corresponding cleaning
agent. If necessary
, r
eplace the filter cartridge.
7. Check the O-ring (4), replace it if necessary.
Unplug the power plug from the outlet.
Danger
A clean suction filter always guarantees
maximum feed quantity, constant spraying
pressure and problem-free functioning
of the unit.
i
Danger of short circult through pane-
t
rating water!
Never spray down the unit with
high-pressure or high-pressure steam
cleaners.
Danger
F
irst of all pull out mains plug from
socket.
Danger
Cleaning the unit (shutting down)
8. Place the bearing ring (5) against the bearing spring
(3). Slide the filter cartridge (2) over the bearing
spring.
9. Screw in the filter housing (1) and tighten it as far as
possible with the strap wrench.
8.4 Cleaning Airless spray gun
– Rinse Airless spray gun with an appropriate clean-
ing agent.
– Clean tip thoroughly with appropriate cleaning
agent so that no coating material residue remains.
– Thoroughly clean the outside of the Airless spray
gun.
Intake filter in Airless spray gun
Dismounting (Fig. 13)
1. Pull protective guard (1) forward vigorously.
2. Screw grip (2) out of the gun housing. Remove
intake filter (3).
3. Intake filter congested or defective – replace.
Mounting
1. Place intake filter (3) with the long cone into the gun
housing.
2. Scr
ew in grip (2) into the gun housing and tighten.
3. Slot in protective guard (1).
W
ar
ni
ng:
k
eep
c
l
ear
of
t
i
p
250
bar
max
.
3600
ps
i
3
2
1
4
3
2
1
5
