ProSpray 24 49
g
Tip extension
Length 15 cm Order no. 0999 320
Length 30 cm Order no. 0999 321
Length 45 cm Order no. 0999 322
Length 60 cm Order no. 0999 323
13. Appendix
13.1 Selection of tip
To achieve faultless and rational working, the selection of the tip is of the greatest importance.
I
n many cases the correct tip can only be determined by means of a spraying test.
Some rules for this:
The spray jet must be even.
I
f streaks appear in the spray jet the spraying pressure is either too low or the viscosity of the coating material to high.
Remedy: Increase pressure or dilute coating material. Each pump conveys a certain quantity in proportion to the size
of the tip:
The following principle is valid: large tip = low pressure
small tip = high pressure
There is a large range of tips with various spraying angles.
13.2 Servicing and cleaning of Airless hard-metal tips
Standard tips
If a different tip type has been fitted, then clean it according to manufacturer’s instructions.
The tip has a bore processed with the greatest precision. Careful handling is necessary to achieve long durability.
Do not forget the fact that the hard-metal insert is brittle! Never throw the tip or handle with sharp metal objects.
The following points must be observed to keep the tip clean and ready for use:
1. Open the relief valve, valve position PRIME (
k
circulation).
2. Switch off unit.
3. Dismount the tip from the spray gun.
4. Place tip in an appropriate cleaning agent until all coating material residue is dissolved.
5. If there is pressure air, blow out tip.
6. Remove any residue by means of a sharp wooden rod (toothpick).
7. Check the tip with the help of a magnifying glass and, if necessary, repeat points 4 to 6.

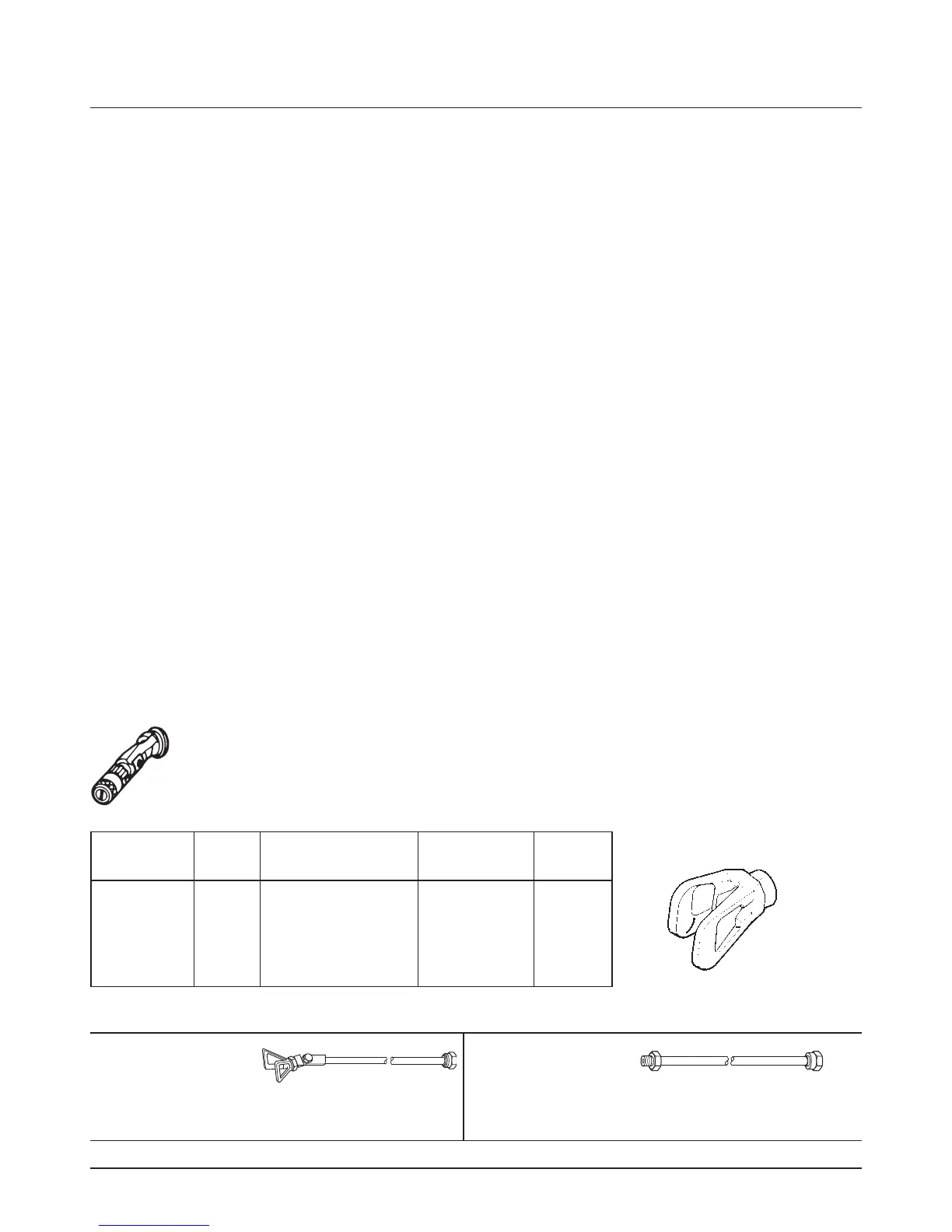

13.3 Spray gun accessories
Flat jet adjusting tip
up to 250 bar (25 MPa)
Appendix
Bore
Spray width at about 30 cm
Flat jet
T
ip marking
mm removal of spray object Use adjusting tip
Pressure 100 bar (10 MP
a)
Order no.
15 0.13 - 0.46 5 - 35 cm Paints 0999 057
20 0.18 - 0.48 5 - 50 cm Paints, fillers 0999 053
28 0.28 - 0.66 8 - 55 cm Paints, dispersions 0999 054
41 0.43 - 0.88 10 - 60 cm Rust protection
paints - dispersions 0999 055
49
0.53 - 1.37
10 - 40 cm
Lar
ge-area coats
0999 056
Contact protection
for the flat jet adjustment tip
Order no. 0097 294
Tip extension with
slewable knee joint
(without tip)
Length
100 cm
Or
der no.
0096 015
Length
200 cm
Or
der no.
0096 016
Length
300 cm
Or
der no.
0096 017
