ProSpray 24 45
g
I
tem Order No. Description
5 0034 038 Double socket for coupling high-pressure
hoses
6 0034 950 Metex-Reuse
Reuse for pre-filtering of coating material
in vessel.
Place suction pipe in the reuse.
0034 952 Sieve package (5 pcs) for paint
0
034 951 Sieve package (5 pcs) for dispersion
Accessories and spare parts
12. Accessories and spare parts
12.1 Accessories for ProSpray 24
(
accessories illustration, see Page 104)
I
tem Order No. Description
1 0296 388 Spray gun AG 08 (aluminium model)
0502 166 Spray gun AG 14 (aluminium model)
2 0096 004 Pole gun 30 cm
0096 019 Pole gun 100 cm
0096 005 Pole gun 150 cm
0096 006 Pole gun 270 cm
3 0345 010 In-line roller IR-100
4
9984 573 High-pressure hose DN 4 mm, 7.5 m
with stainless steel nipple
9984 574 High-pressure hose DN 6 mm, 15 m
for dispersion
9984 575 High-pressure hose DN 6 mm, 30 m
for dispersion
12.2 Spare parts list for main assembly
(spare parts diagram, see Page105)
Item Order No. Description
1 0551 810 Motor cover
2 0551 440 Screw (4)
3 9800 308 Cylinder head screw (4)
4 ------------ Power cord, (see below)
5 9800 340 Ground screw
6 0551 659 Screw (4)
7 0551 720 Pressure control knob
8 0551 721 Digital Electronic Spray Control (ESC)
System
9 0551 722 Digital ESC system cover
10 0551 723 Screw (2)
1
1
0508 585
Hex screw (stand and upright cart) (4)
0508 590 Hex screw ( low boy) (4)
12 0551 645 Control panel
13 0551 826 Fluid section (stand and low boy)
0551 827 Fluid section (upright cart)
14
0509 636 Plug (2)
Item Order No. Description
15 0508 553 Cylinder head screw (2)
16 0551 443 Pail hook (upright cart)
17 0508 549 Washer (upright cart) (2)
18 0508 550 Screw (upright cart) (2)
19 0507 783 Clamp (upright cart)
20 0551 556 Return hose (upright cart)
21 0508 552 Suction tube (upright cart)
22 0508 747 Filter, 10 mesh (upright cart)
0507 974 Wire assembly
0551 757 Pressure sensor wire assembly
0551 758
Surge suppressor
, 220~240 V
AC
0551 759 Surge suppressor, 100~120 V AC
0551 770 Surge protector, 100~120 V
0551 771 Surge protector, 230 V, EU
0551 772 Surge protector, 220~240 V,
AU and CN

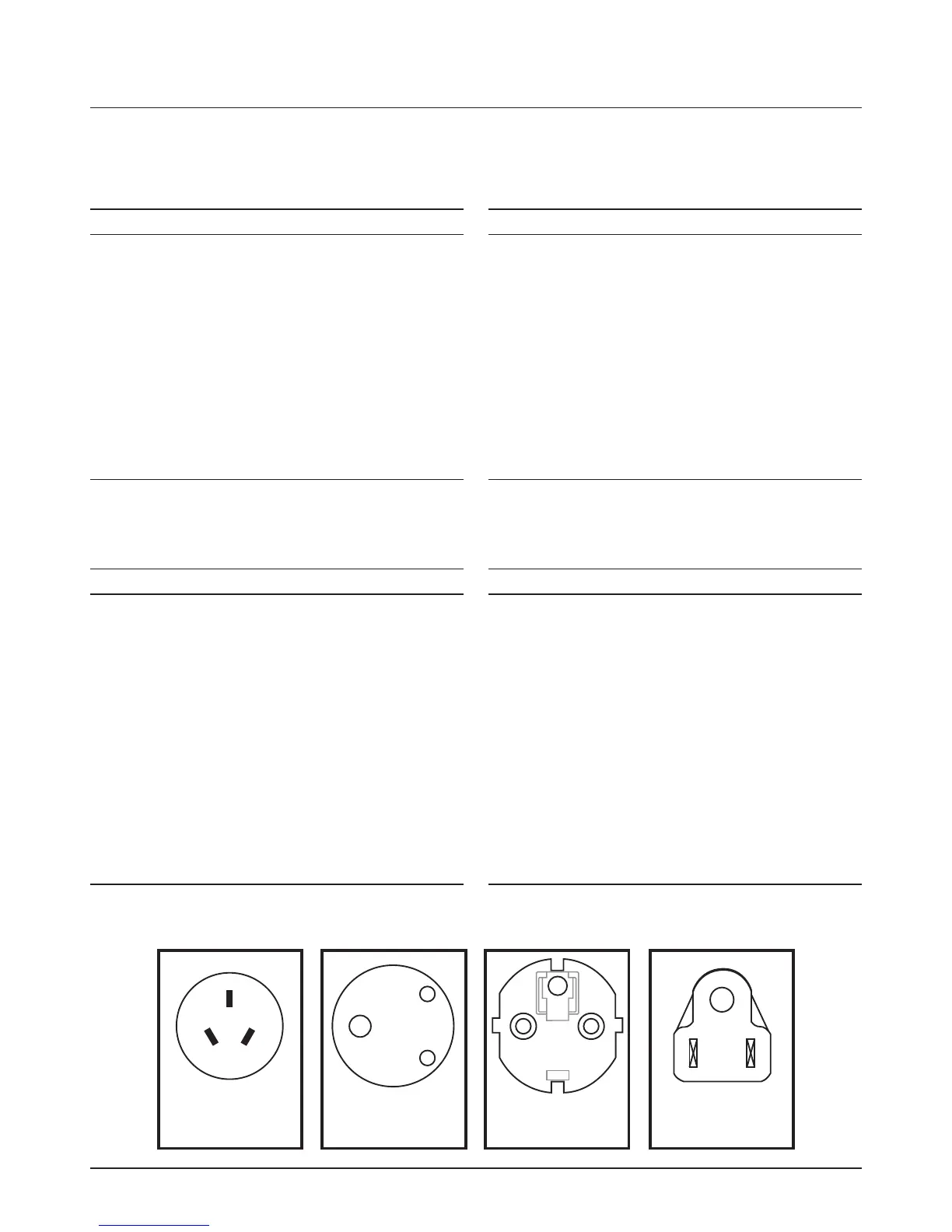

AS-3112
0551 726, 9'
0551 728, 20'
220V~240V
0508 775
110V~120V
0508 776
220V~240V
0551 727
100V
BS-546 CEE 7/7 NEMA 5-15P
