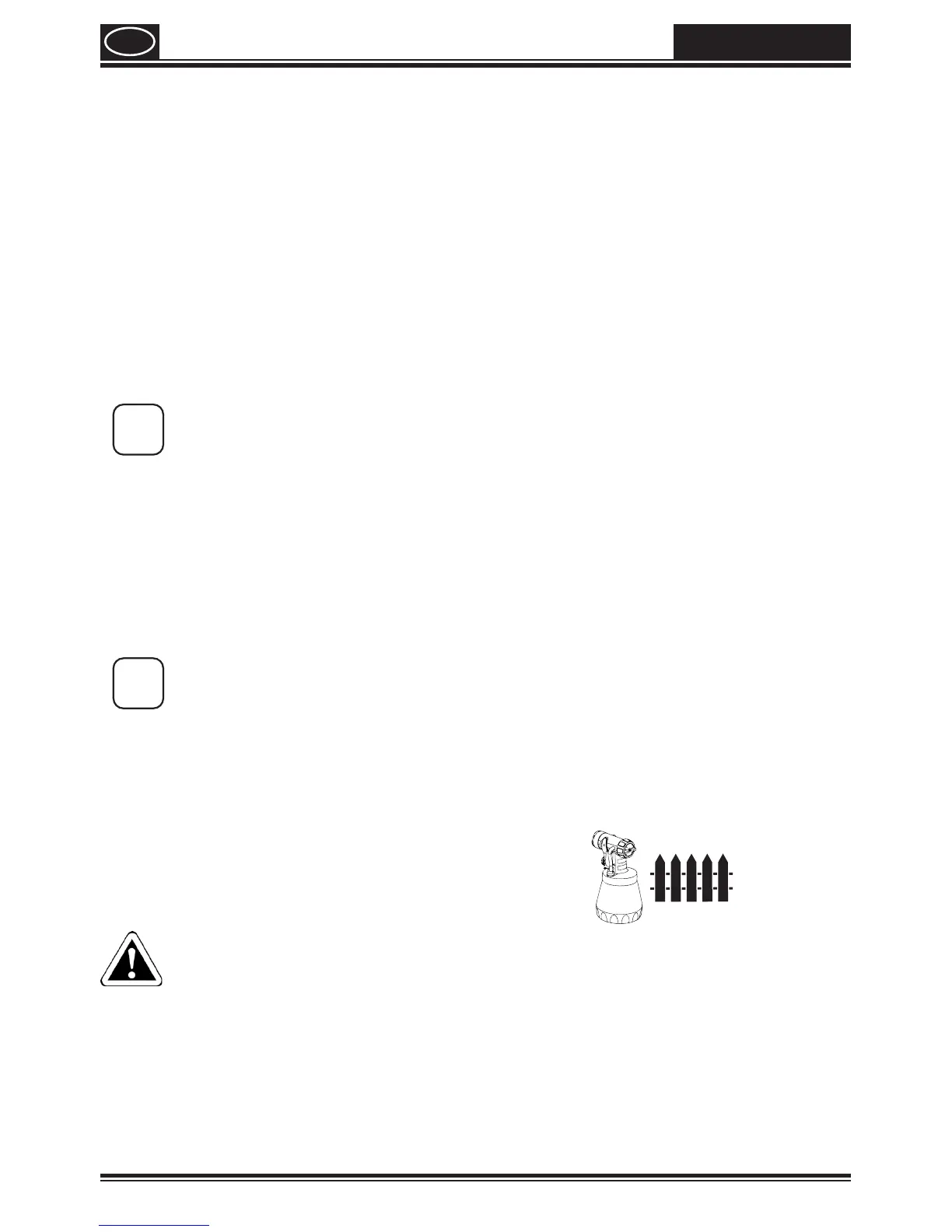

10. Start-up
Before connecting to the mains supply, be sure that the supply voltage is identical with
the value given on the rating plate.
Put the machine down only on a level, clean surface. Otherwise, the gun may suck in
dust, etc.
1. Attach the carrying strap to the unit. (Fig. 2)
2. Unscrew the container from the spray gun.
3.
Aligning suction tube. (Fig. 3)
If the suction tube is positioned correctly, the container contents can be sprayed
without almost any residue.
When spraying horizontal surfaces, turn suction tube forward. (Fig. 3 A)
When spraying objects overhead, turn suction tube back. (Fig. 3 B)
i
For easier coating of ceilings and lying objects, we recommend the 60 cm
Universal Extra Extension. (Order no. 2361756)
4.
Set the container on a sheet of paper, pour in the prepared coating material and screw
the container tightly onto the spray gun.
5. Connect the front part with the rear part of the gun. (Fig. 5)
6. Mount the air hose (Fig. 4, A + B). Insert the air hose rmly into the connection of the
unit and the gun handle. The position of the hose is not relevant.
7. Sling on the carrying strap with the unit.
8. Press the ON/OFF switch at the device.
i
The enclosed practice poster is ideal for familiarising yourself with
operation of the spray gun. After trying out the rst spray coatings, it
makes sense to test it further on cardboard or a similar surface in order
to nd out the right ow rate of paint and air for the best spray pattern.
Detailed information about these settings can be found in chapter
11-14.
11. Selecting the Spray Setting
(Standard spray attachment)
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
With the union nut (g. 6, 1) slightly unscrewed, turn the air cap (2) to the desired
spraysetting position (arrow). Then tighten the union nut.
Fig. 7 A = vertical at jet for horizontal surfaces
Fig. 7 B = horizontal at jet for vertical surfaces
Fig. 7 C = circular jet for corners, edges and hard-to-reach surfaces
