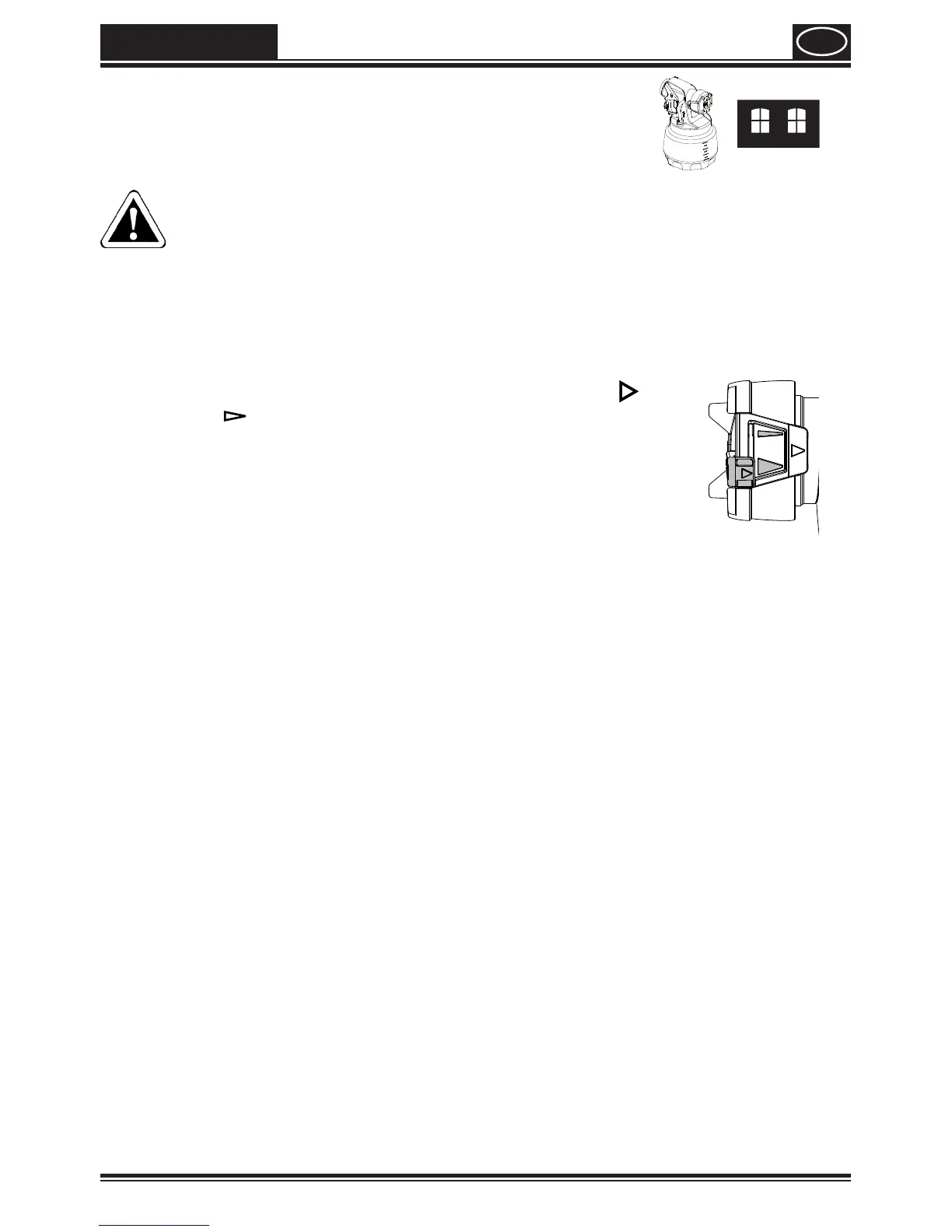

12. Selecting the Spray Setting
(Wall Extra I-Spray spray attachment)
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
2 dierent spray jet shapes can be set by turning the adjustment ring (g. 8, 1)
Fig. 9 A = vertical at jet
for horizontal surfaces
Fig. 9 B = horizontal at jet
for vertical surfaces
Use the red adjustment lever to also switch between a wide (
)
and a narrow ( ) spray jet.
13. Adjusting the Material Volume (Fig. 10)
Set the material volume by turning the regulator on the trigger guard of the spray gun.
- turn to the left lower material volume
+ turn to the right higher material volume
14. Setting the Amount of Air (Fig. 11)
Depending on the viscosity of the material to be sprayed and the nish of the object to be
coated, it may be advisable to vary the amount of air. Very low viscosity materials, such as
watery glazes do not have to be atomised with the maximum amount of air. In this case it
is advisable to reduce the amount of air and thus minimize the spray vapour.
This also applies for the use of the Detail and Corner&Reach spray attachment (accessory).
- turn to the right lower amount of air
+ turn to the left higher amount of air
