Control Features and Connections – Frontpanel Q Rack
7 Waldorf Q User´s Manual
Frontpanel Q Rack
UtilityGlobal
UndoMulti
CompareMatrix
RecallXphorm
StoreSound
Shift
Play OK
PeekMultimode
Alt1
Alt2
Shape
Octave Semi Detune FM Source Pulsewidth PWM Source Level
Balance
Shape Sync Speed Delay
Edit Glide Sync Osc2 Edit Edit
Oscillators Mixer
LFO
AMP FX1 FX2Filter
Envelopes Arpeggiator
Sequencer
Cutoff
Resonance Keytrack Type Env Velo Pan Drive
Edit Edit Edit Edit
Attack
Level
Decay
Decay2
Sustain
Sustain2
Release
Mode
Attack
Level
Decay
Decay2
Sustain
Sustain2
Release
Mode
Filter /
Amp
Env 3/4
Hold
One Shot
On
Edit
Edit
Cutoff
Velocity
Option
Step 1-8
Bank A
Step 9-16
Bank B
Step 17-24
Bank C
Step 25-32
Bank D /
Drum Map
1 2 3 4 5 6 7 8 9 0
Tempo
Start/Stop
Pause Hold
Pattern
Sound
Multi
Grab Control
System
Volume
Routing
Mixer
Amp
FX
L
R
Pan
2
Pan
1
Filter
1
Filter
2
Volume Velo
Power/Panic
Demo
Card
1
5/9/13
2
6/10/14
3
7/11/15
4
8/12/16
Instruments
햲
햳
햴
햵
햶
햷
햸
햹
햺
햻햽
햾

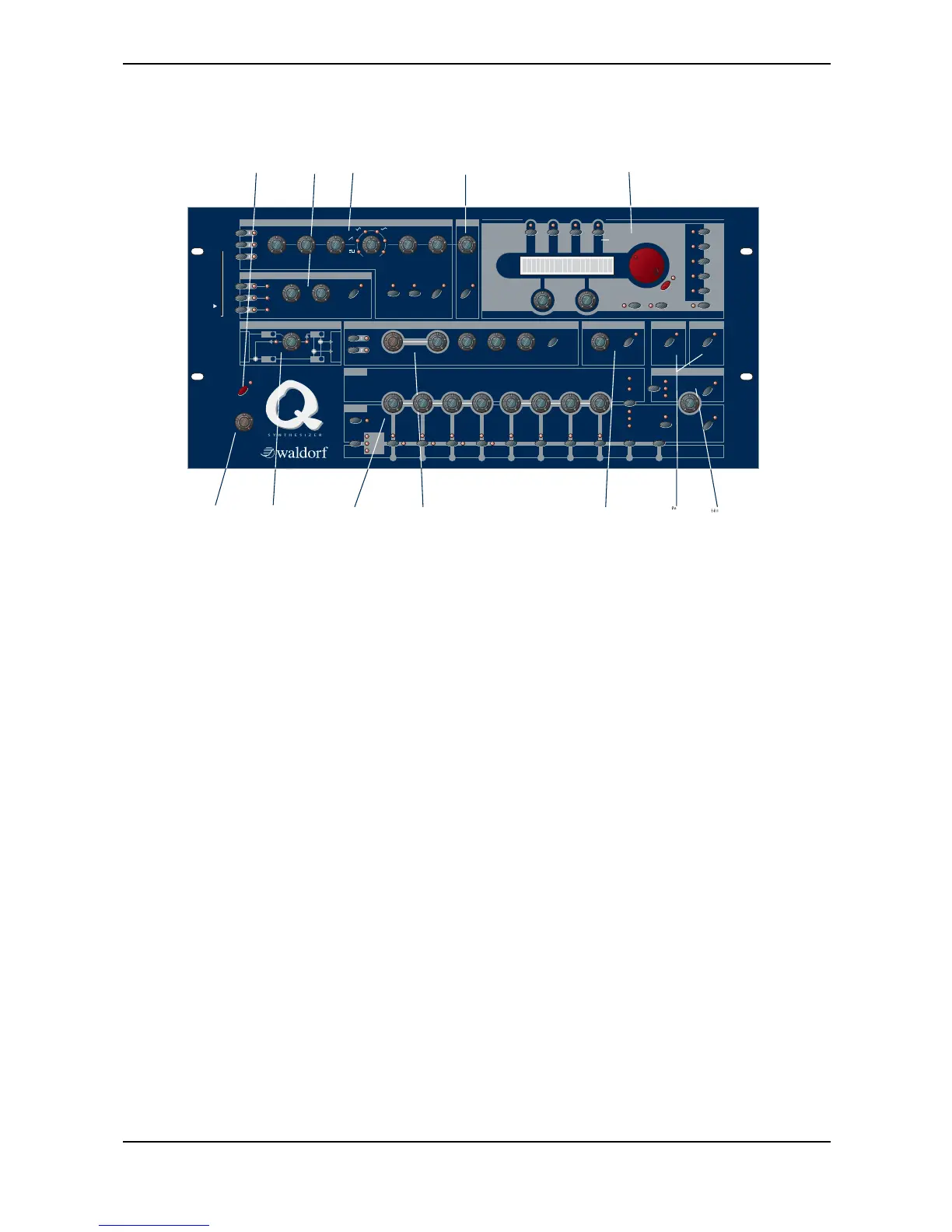

2. Frontpanel Q Rack
햲 System Volume rotary. Controls the overall
volume.
햳 LFO Section. Contains all the knobs and buttons
associated with the LFOs.
햴 Oscillators Section. Contains all the knobs and
buttons associated with the oscillators.
햵 Mixer Section. Contains all the knobs and
buttons associated with the mixer.
햶 Routing Section. Contains the Filter Routing
Control.
햷 Master Section with display, page dial, value
dials, Instrument Select and function buttons.
햸 Envelopes, Sequencer and Program Select
Section. Contains all knobs and buttons
associated with the envelopes, the step
sequencer and program selection.
햹 Filter Section. Contains all knobs and buttons
associated with the filters.
햺 Amplifier Section. Contains all knobs associated
with the amplifier.
햻 FX Section. Contains all knobs and buttons
associated with the Effects.
햽 Arpeggiator Section. Contains all knobs and
buttons associated with the arpeggiator.
