Control Features and Connections – Rear Panel
Waldorf Q User’s Manual 8
Rear Panel
To reduce the risk of electric shock, do not remove cover. No user-
serviceable parts inside. Refer servicing to qualified ser vice personnel.
Vorsicht! Gerät nicht öffnen. Gefahr eines Stromschlages. Servicear-
beiten nur von geschultem Fachpersonal durchführen lassen!
CAUTION
This device complies to
the FCC rules part 15
In Thru OutLeft/Stereo Right/Mono Left/Stereo Right/Mono Left/Stereo Right/Mono Tip:1 / Ring:2Stereo12 Coaxial
POWER
100…240V AC
max. 30VA
MIDIMAIN OUT SUB OUT 1 SUB OUT 2 PEDALINPEDAL CV IN D.OUT
/
! !
쐅쐈
쐉

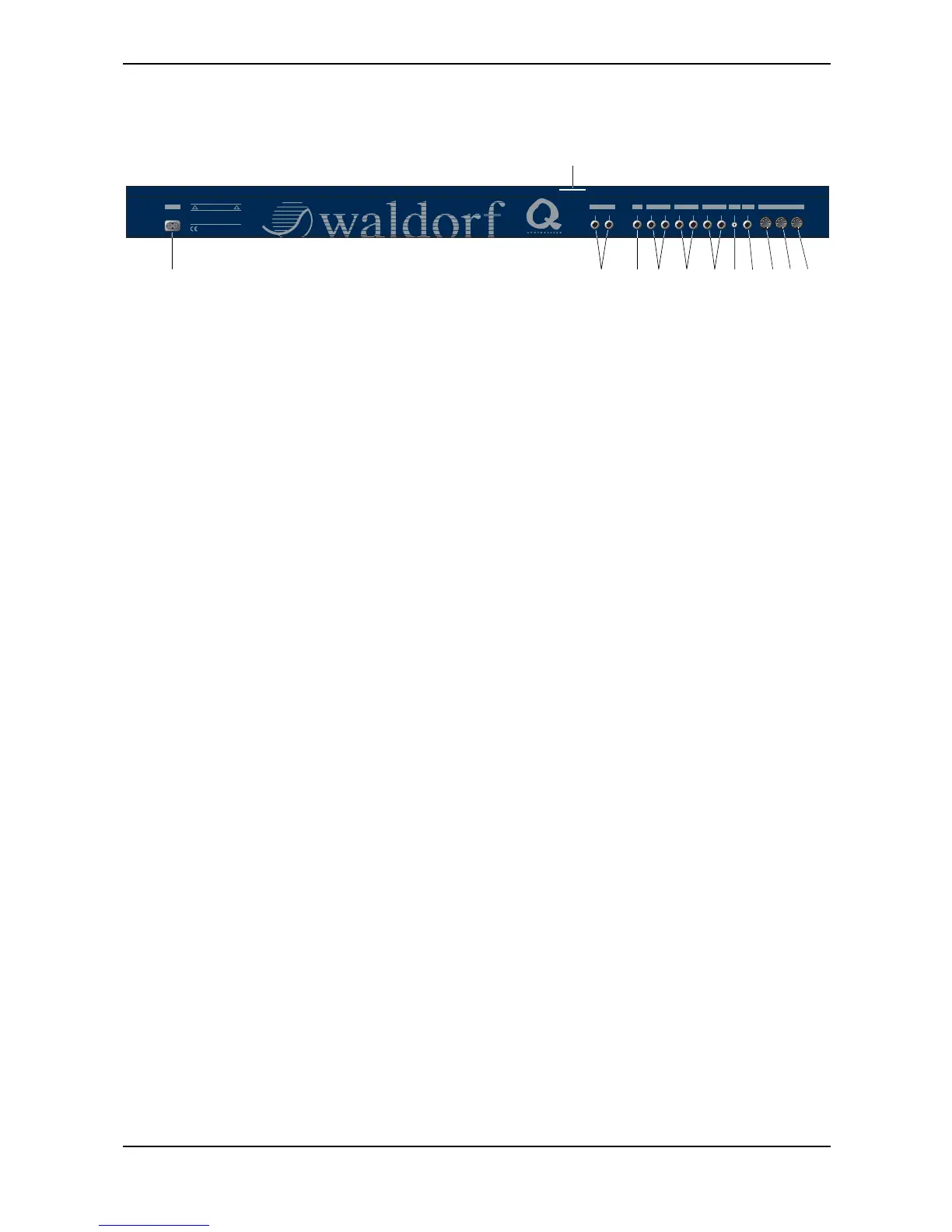

Picture 2: Rear Panel Q Keyboard
쐃 Power supply socket 100…240V AC
쐇 Control Pedal / CV In jacks for connecting foot
controllers or analog control voltages (only Q
Keyboard)
쐋 Stereo External In jack for feeding external audio
signals into the Mixer section.
쐏 Main Out jacks. Deliver a stereo line level
output signal for connection to a mixing desk or
amplifier.
쐄 Sub Out 1 jacks. Deliver a stereo line level
output signal for connection to a mixing desk or
amplifier.
쐂 Sub Out 2 jacks. Deliver a stereo line level
output signal for connection to a mixing desk or
amplifier.
쐆 Digital Out jack. S/PDIF type coaxial output for
connection to a digital mixing desk, DAT
recorder or hard disk recording system. Signal is
similar to the Main Out jacks.
쐊 Switch Pedal jack (stereo) for connecting one or
two footswitch controllers.
쐎 MIDI In jack. Used to receive MIDI data from an
external device.
쐅 MIDI Thru jack. Echoes MIDI data received at
the MIDI In.
쐈 MIDI Out jack. Used to transmit MIDI data to an
external device.
쐉 Card slot. Holds a card of type Q-Card 256 or
higher (located at the front of the Q Rack)
