Operating Instructions
48
Keeping the catcher exhaust screen clean and open
is essential to good performance of the catching
system. In some mowing conditions, e.g., wet and
dirty, it will be necessary to clean the screen fre-
quently to avoid clogging the mower deck, blower,
and chutes due to airow restriction.
Grass Catcher
Screen
Removal Knobs
(Not Visible)

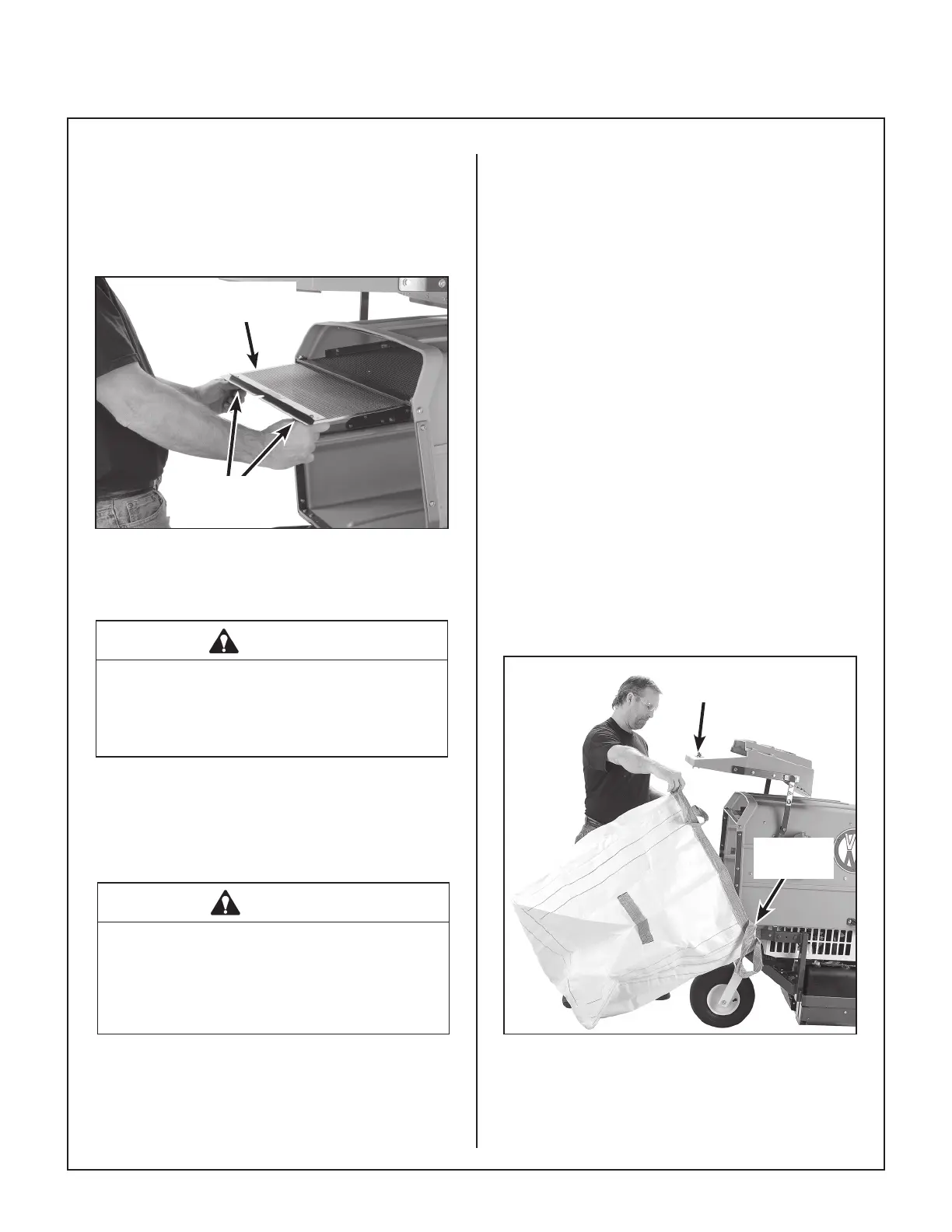

Grass Catcher Screen Removal for Cleaning
Dumping the Catcher
DANGER
Do not mow or dump grass within 5 feet
(1.5 meters) of an embankment or retaining
wall with drop o.
For dumping, the catcher either tailgate dumps into
a disposal area or dumps into the optional dump
bag. The dump bag is a reusable nylon fabric bag
designed to conveniently move grass clippings from
the catcher to a remote disposal area or container.
CAUTION
Use leg muscles and rm footing when lift-
ing the catcher to dump; avoid bending at
the waist and using back muscles in order
to prevent back injury.
Tailgate Dumping
1. Open the back door by lifting on the door handle.
2. Tilt the catcher back to dump by lifting on the
catcher lift/dump handle on the lower front cor-
ner of the catcher.
3. Lower the catcher smoothly down to the normal
operating position. DO NOT allow the catcher
to drop down—the gas spring, that holds the
catcher in the raised position, is not a shock
absorber for lowering the catcher.
4. Close the door by pulling down on the door
handle. The door should close smoothly with
the assistance of the gas springs. If the damp-
ening springs are not functioning properly, they
should be replaced to prevent the door from
slamming closed and possibly causing a pinch
point.
Using the Dump Bag
1. Open the back door by lifting on the door handle.
2. Orient the dump bag with one of the handle
straps on the bag opening facing up.
Tailgate Door
Handle
Hook Bag
on Bumper
Positioning Dump Bag on Catcher
3. Hook the bottom of the bag over the rear bum-
per while lifting on the handle strap on bag
opening.
To Next Page
