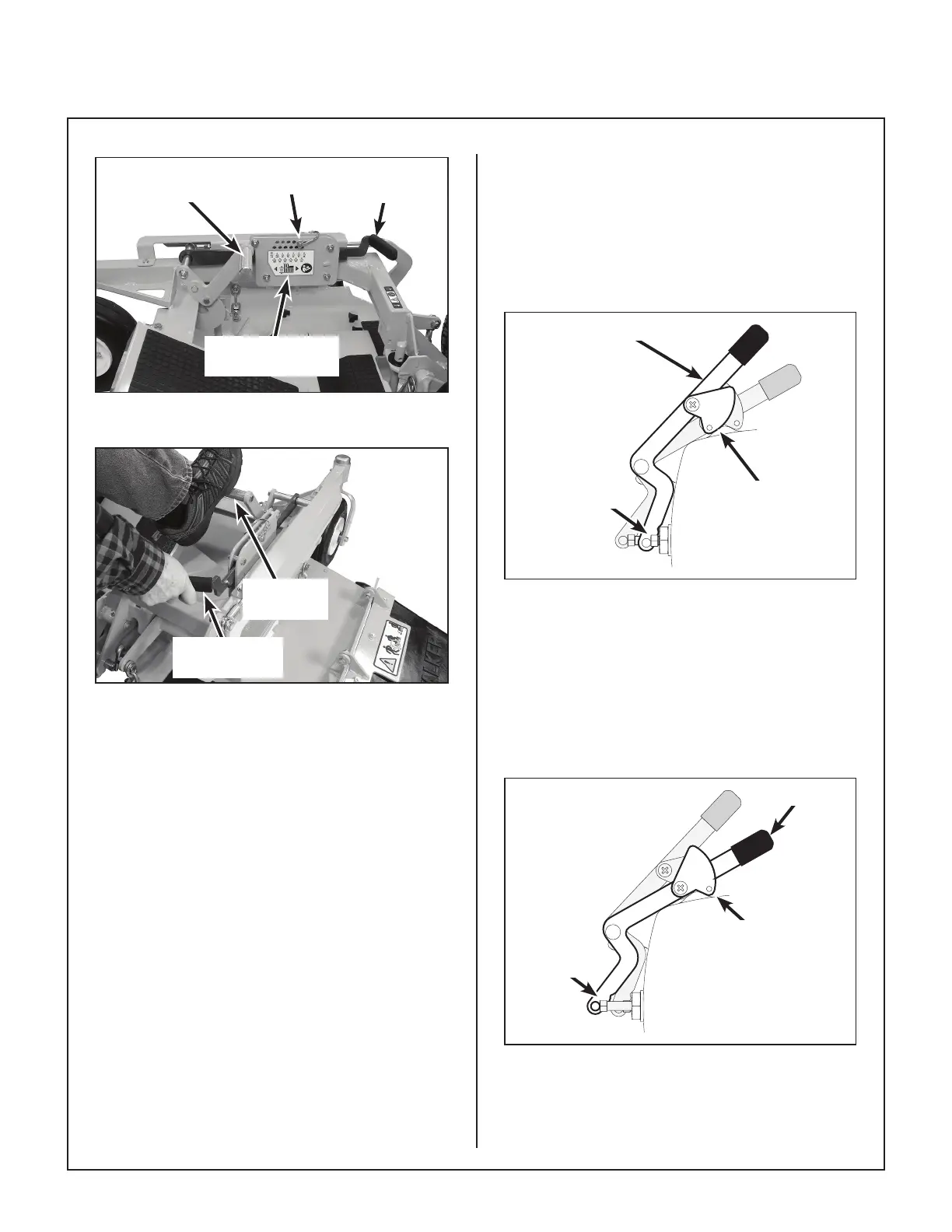

Operating Instructions
40
Height
Adjustment Decal
Deck Lift Pedal
Cutting Height
Release Lever
Hitch Pin
Cutting Height Adjustment (DS60-3)
Raise Release
Lever
Push Deck
Lift Pedal
Lowering Deck to Selected
Cutting Height (DS60-3)
DS60-3 Transport Position
1. Disengage the PTO.
2. Push down on deck lift pedal until it latches in
the full up (transport) position.
TRANSMISSION LOCKOUT
IMPORTANT: DO NOT TOW this mower with the
transmission lockout engaged. Towing can produce
excessive internal pressure and damage the trans-
mission.
To move the mower with the engine NOT running
(dead battery, maintenance, etc.), the hydrostatic
transmissions are unlocked (released).
1. Raise the body.
2. Lift the transmission lockout lever on both the
RH and LH transmissions and secure into place
with the locking cam.
3. The mower will “freewheel” with the levers in the
LOCKOUT position. The levers must be in the
highest position to completely unlock the trans-
missions.
Lockout Lever
Plunger
Depressed
Cam in
LOCKOUT
Position
Lockout Lever - Freewheel Position
4. After moving the mower, release the locking
cam, placing the lever DOWN in the normal OP-
ERATING position. Make sure the transmis-
sion lockout plunger on the side of the transmis-
sion case (activated by the lockout lever) is
com pletely released, otherwise the transmis-
sion operation will be erratic.
Lockout Lever
Plunger
Released
Cam in
UNLOCKED
Position
Lockout Lever - Normal Operating Position
To Next Page
