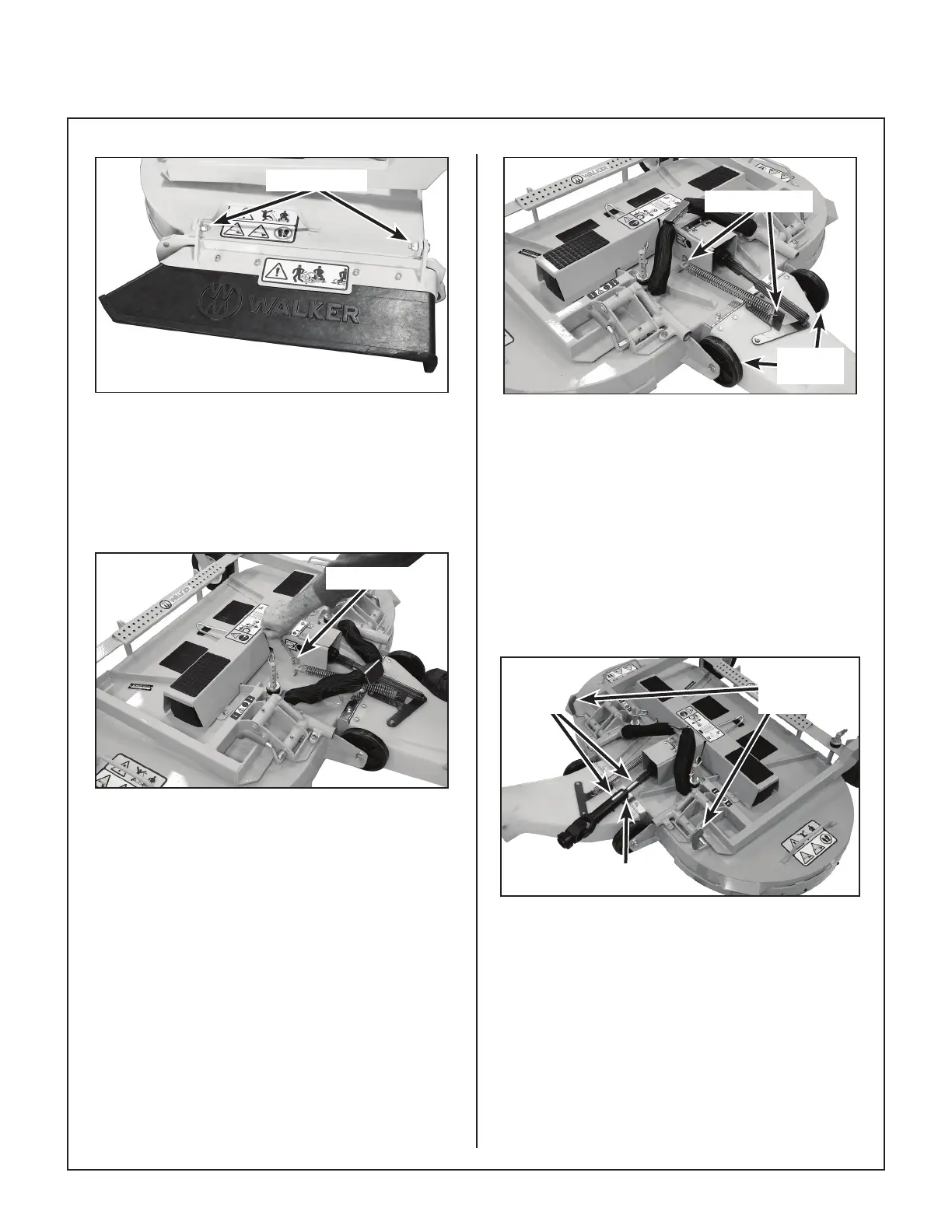

Assembly Instructions

Attach Shield

Discharge Shield Installation

on Side Discharge Deck

PTO Shaft Guard Installation

Position the shaft guard as shown and mount with

two (2) 1/4-20 x 1/2 in. bolts.

Attach Guard

PTO Shaft Guard Installation

Tilt-Up Roller Wheel Installation

Mount the two (2) tilt-up roller wheels on the brack-

ets on the rear skirt of the deck housing using the

P/N 8490 axle bolt, 3/8 in. plain washer, 3/8 in.

wave spring washer (between bracket and wheel)

and 3/8-16 Whiz locknut. Tighten the axle bolt until

the wheel rolls freely, but is not loose.

Roller

Wheels

Attach Spring

Tilt-Up Spring and Roller Wheel

Installation on Collection Deck

Mower Deck Installation on Tractor

Deck Installation

1. Unlock the deck tilt-up lock lever on each side

of the deck carrier frame. See the Install PTO

Coupler Tube photo for details.

2. Slide the PTO coupler tube onto the deck’s PTO

drive shaft making sure the arrows align.

Deck Tilt-up

Lock Levers

Unlocked

PTO Coupler

Installed

Align

Arrows

Install PTO Coupler Tube

3. Lightly grease each deck support arm (2) on the

tractor. Refer to Mower Deck Installation pho-

to for location of deck support arm.
