CLEANING
CAUTION
If a pressure washer is used on the ex-
posed working parts, avoid water on the
electrical parts and the engine cooling
system.
Engine Air Cleaner System
Turbine Precleaner (Enginaire™)
The engine air cleaner system includes a turbine
precleaner; a spinning fan driven by the intake air-
ow separates dust from the air, giving the initial
stage of air cleaning.
Every 100 hours check the Turbine Precleaner
(located in the end cap of the air cleaner assembly)
for free movement of the internal fan. Shine light
into end cap to verify movement of fan with engine
running.
Enginaire™ VLR Air Cleaner
A remote mounted Enginaire™ air cleaner pro-
vides the air filtering function. The paper filter
element slides over an outlet tube inside the air
cleaner canister with radial sealing action, reduc-
ing the possibility of dust leaks due to improper
filter installation. Intake design and internal baf-
fling provide dust separation and automatic pre-
cleaning action. Daily or frequent servicing of the
air cleaner is not required. Use the air lter restric-
tion gauge connected to the air cleaner outlet to in-
dicate when the air lter needs servicing–a yellow
indicator will show when the lter is overly restricting
airow into the engine.
Engine
Hose
Clamp
Primary Filter
Element
Safety
Filter
Mounting
Band
Enginaire VLR ™
Air Cleaner
Enginaire™
Air Cleaner Cover
Air Intake
Hose
Air Filter
Restriction Gauge
Turbine
Precleaner
Hose
Clamp

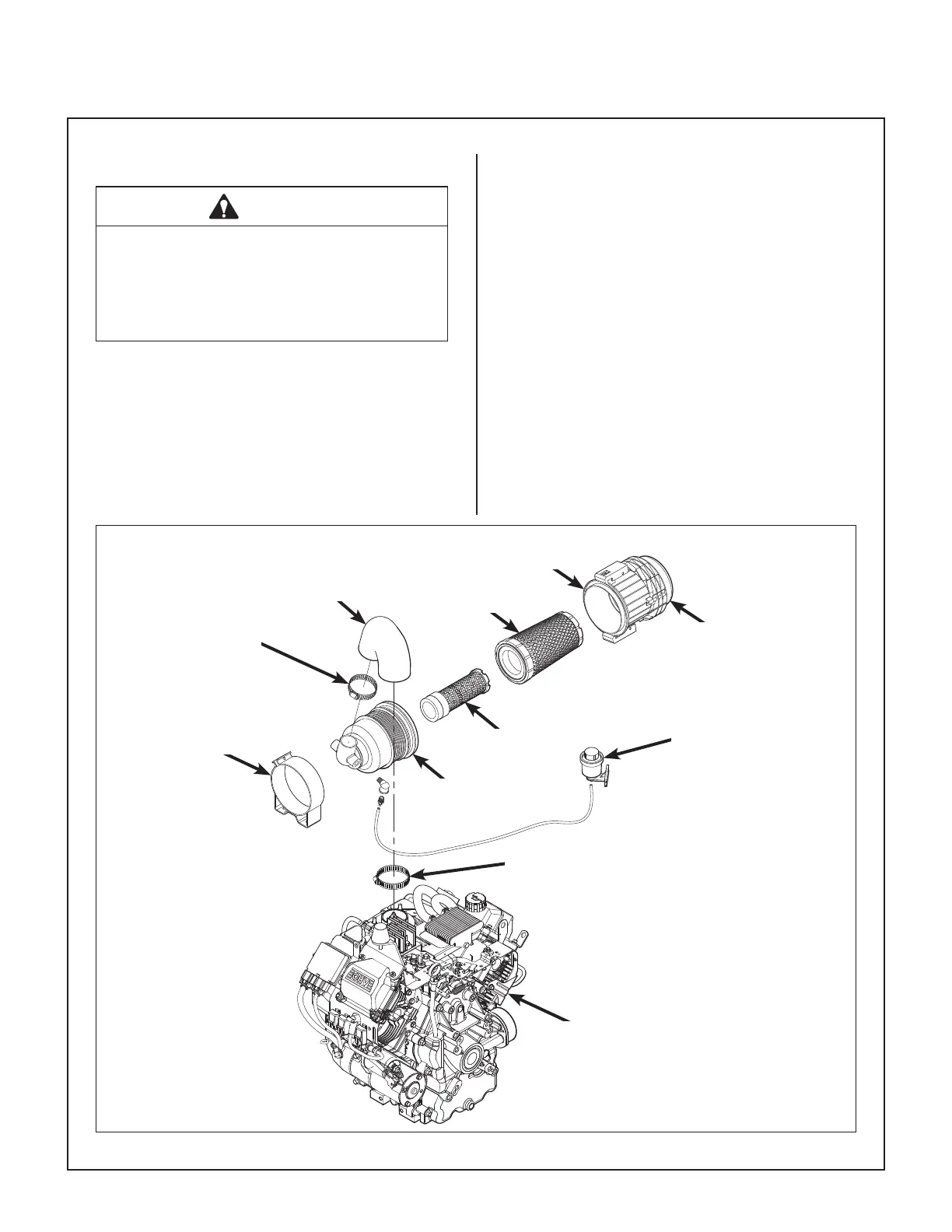

Engine Air Cleaner System Components
