Assembly Instructions
23

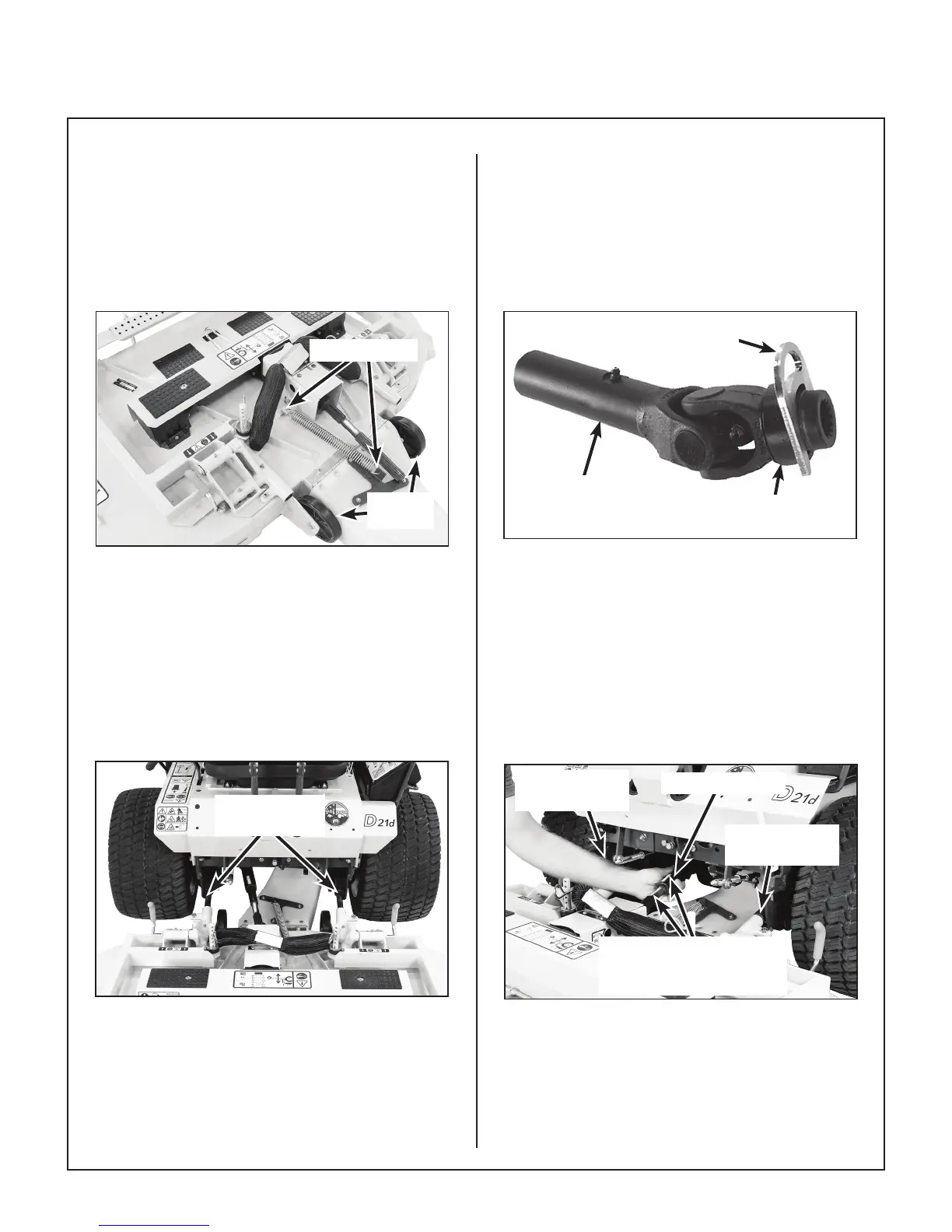

Tilt-Up Roller Wheel Installation
Mount the two (2) tilt-up roller wheels on the brack-
ets on the rear skirt of the deck housing using the
P/N F543 axle bolt, 3/8 in. plain washer, 3/8 in.
wave spring washer (between bracket and wheel)
and 3/8-16 Whiz locknut. Tighten the axle bolt until
the wheel rolls freely, but is not loose.
Roller
Wheels
Attach Spring
Tilt-Up Spring and Roller Wheel
Installation on Collection Deck
Mower Deck Installation on Tractor
Deck Installation
1. Lightly grease each deck support arm (2) on the
tractor. Refer to Mower Deck Installation
photo for location of deck support arm.
Deck Support
Arms
Mower Deck Installation
2. Engage the deck carrier frame tube sockets on
the tractor support arms (refer to Discharge
Chute Installation photo for socket location),
slide the deck onto the support arms approxi-
mately 3 in. (76 mm).
3. Retract the spring-loaded quick disconnect ring
on the PTO Coupler and insert the Coupler In-
stallation Tool (provided in Owner’s Packet) as
shown in the photo below.
NOTE: The Coupler Installation Tool is provid-
ed for convenience, but is not required for in-
stallation.
PTO Coupler
Tube
Coupler
Installation Tool
Retract Spring-Loaded
Quick Disconnect Ring
PTO Coupler Installation Tool
4. Reaching under the tractor, slide the PTO cou-
pler tube onto the deck drive shaft (align arrow
decals), then install the coupler quick discon-
nect onto the tractor PTO drive shaft.
IMPORTANT: When installing the DS52 or
DS62 Mower decks, make sure to retract the
dolly wheel after mounting the deck on the trac-
tor.
Grease Deck
Support Arm
PTO Connection
Grease Deck
Support Arm
Arrows on Shaft and Tube
(Used to Align When
Sliding Together)
PTO Shaft Connection
5. Remove Installation Tool from quick disconnect
ring and make sure the ring has “snapped” se-
curely on the spline shaft.
IMPORTANT: DO NOT operate tractor with
Coupler Installation Tool installed.
