Maintenance Instructions REPLACING/REPAIRING
REPLACING/REPAIRING
DANGER
To prevent accidental starting of the en-
gine when replacing parts or repairing the
machine, remove the key from the ignition
switch and disconnect the electrical plug
on the fuel shut-o solenoid.
IMPORTANT: ALWAYS use genuine factory re-
placement parts. Substitute parts CAN result in
product malfunction and possible injury to the op-
erator and/or others.
Drive Belts
There are ve (5) individual belts on GHS models
or four (4) belts on SD models:
● Jackshaft Drive Belt
● Engine PTO Drive Belt (3 Groove Power Band)
● GHS Blower Drive Belt (GHS Model Only)
● Hydrostatic Ground Drive Belt
● Engine Alternator Belt
The belts may be removed and replaced using the
procedures described on the following pages.

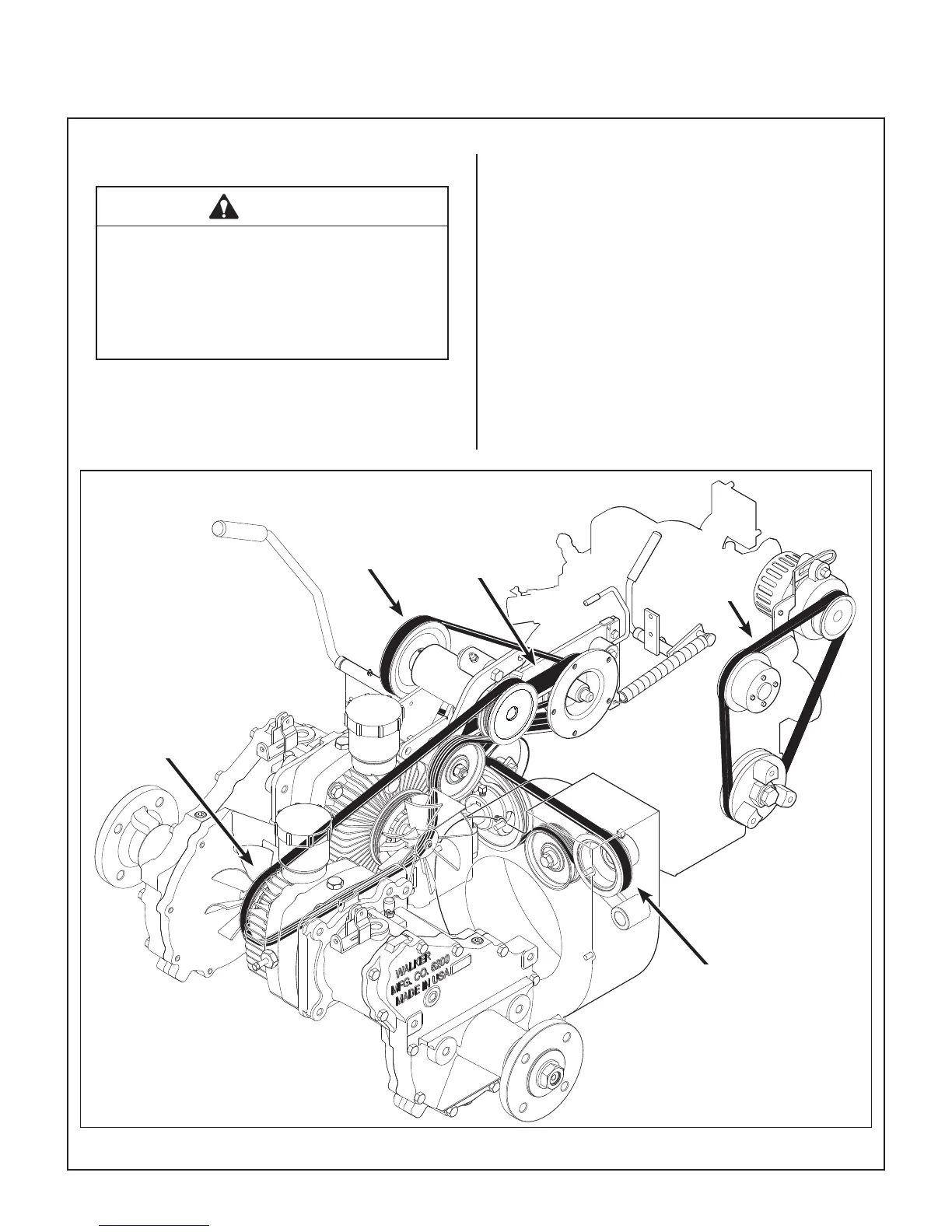

Belt Locations
Jackshaft
Drive Belt
Engine
Alternator Belt
GHS Blower Belt
(GHS Model Only)
Engine PTO
Belt
Hydrostatic Ground
Drive Belt
To Next Page
