Maintenance Instructions REPLACING/REPAIRING
Hydrostatic Ground Drive Belt
1. To remove the hydrostatic ground drive belt:
a. Push down on the spring-loaded belt tight-
ener arm and idler pulley to relax belt.
b. Slide belt o󰀨 pulleys, then release the idler.

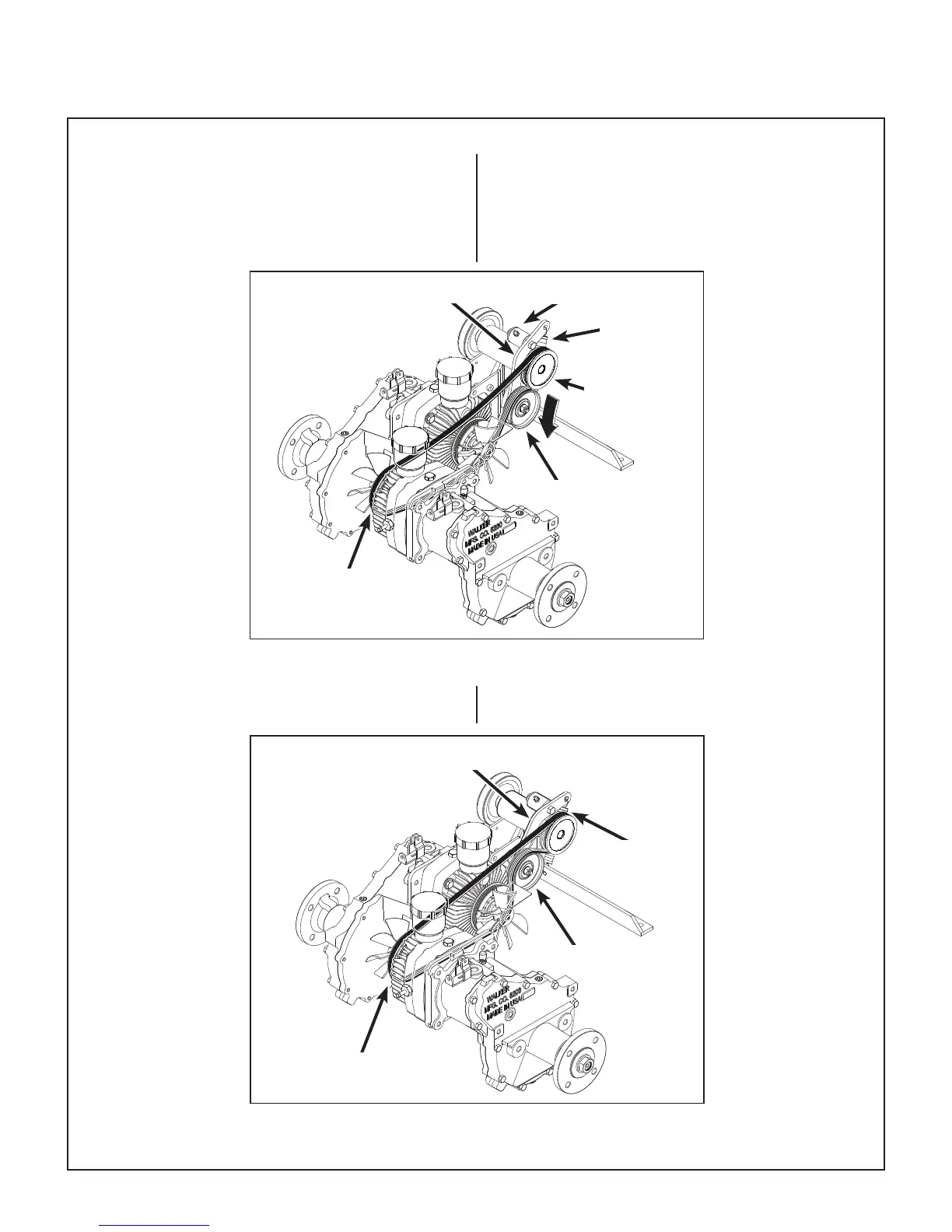

Hydrostatic Ground Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the hydrostatic
ground drive belt.
Hydrostatic Ground Drive Belt Assembly (Engaged)
Idler Pulley
Spring
Belt Tightener Arm
Hydrostatic
Ground Drive Belt
Transmission
Drive Pulley
Spring
Idler Pulley
Jackshaft
Belt Tightener Arm
Hydrostatic
Ground Drive Belt
