Maintenance Instructions REPLACING/REPAIRING
Engine Alternator Belt
1. To remove the alternator belt:
a. Loosen the alternator mounting pivot bolt
and the alternator bracket tensioner bolt.
b. Pivot the alternator as shown to relax and
remove belt.

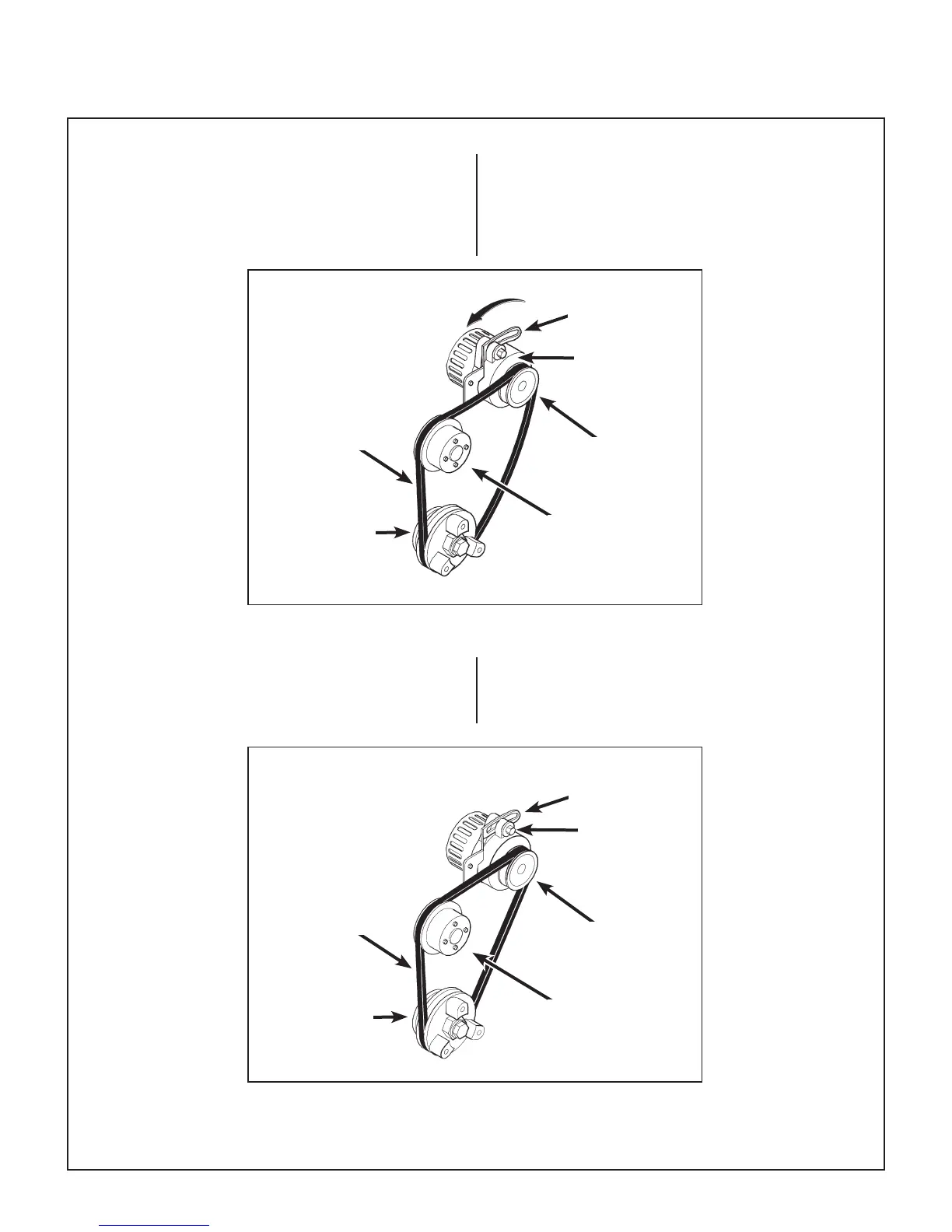

Engine Alternator Belt (Loose)
Engine Alternator Belt (Tight)
2. Reverse the procedure to install the belt. Adjust
and check the belt tension by referring to
CHECKING/SERVICING the Alternator Belt
Tension in this section.
Alternator
Bracket
Crankshaft
Pulley
Engine
Alternator Belt
Alternator
Tensioner
Bolt
Water Pump
Pulley
Alternator
Bracket
Tensioner
Bolt
Crankshaft
Pulley
Engine
Alternator Belt
Alternator
Water Pump
Pulley
