Walker D21d User Manual

78
Maintenance Instructions REPLACING/REPAIRING
Jackshaft Drive Belt
1. To remove the jackshaft drive belt:
a. Relax the belt by releasing spring tension
from the jackshaft drive idler arm using
the cold start lever.
b. Slide the idler arm release down to unlock
the idler arm from the spring lever. Then
pivot the arm up and away from the belt.
c. Roll the belt o󰀨 the jackshaft pulley and
remove.

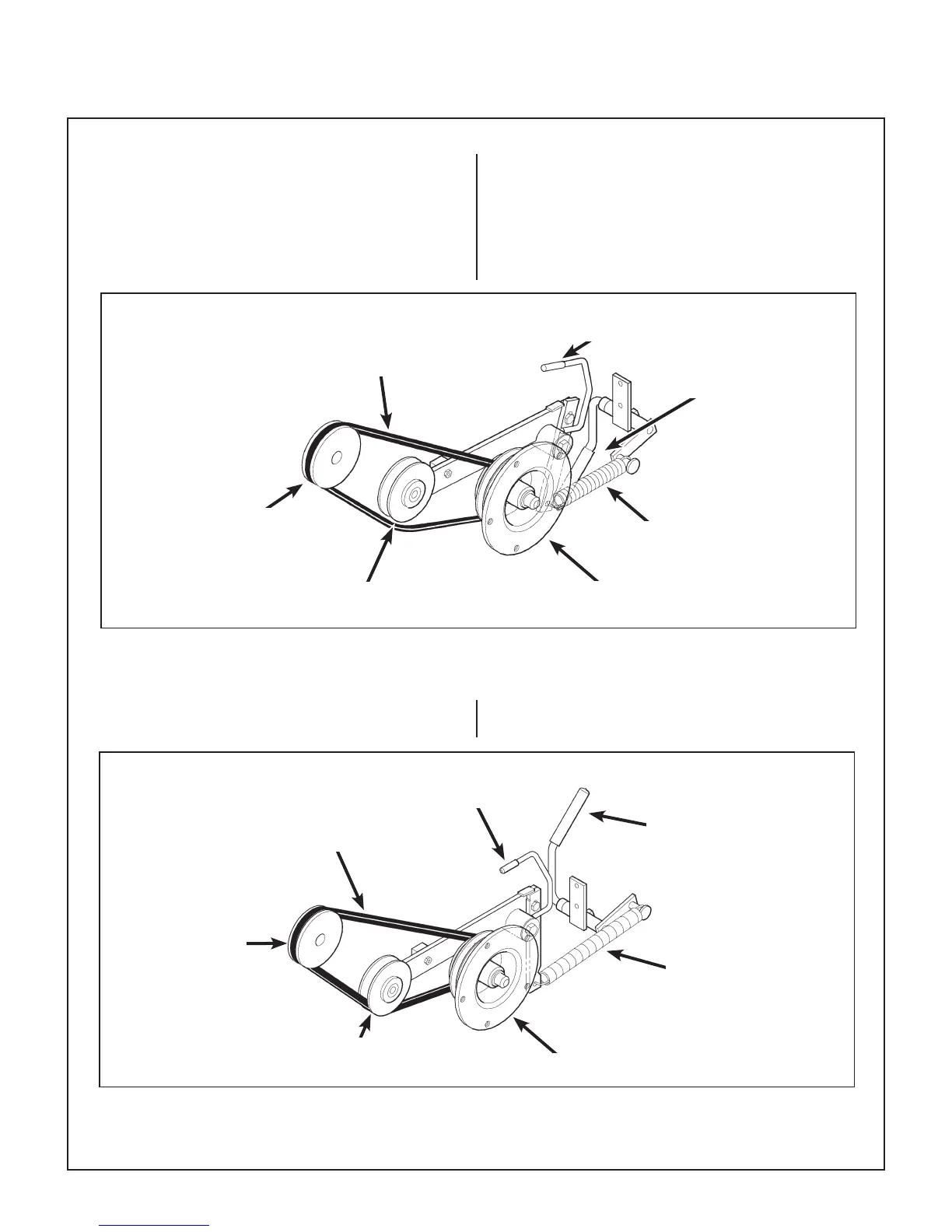

Jackshaft Drive Belt (Disengaged)
2. Reverse the removal procedure to replace the
jackshaft drive belt.
Jackshaft Drive Belt (Engaged)
Jackshaft
Pulley
Jackshaft
Drive Belt
Idler Arm
Release
Spring Tension
(Engaged)
Engine Pulley
Cold Start Lever
(Engaged)
Ground Drive
Idler Pulley (Engaged)
Jackshaft
Pulley
Jackshaft
Drive Belt
Idler Arm
Release
Spring Tension
(Released)
Engine Pulley
Cold Start Lever
(Released)
Ground Drive
Idler Pulley (Disengaged)
