Walker D21d User Manual

Maintenance Instructions LUBRICATION
60
Ident Lubrication No.
No. Location Type Places
Ident Lubrication No.
No. Location Type Places
1 Deck Caster Wheel Fork Pivot Grease 2
2 Deck Caster Wheel Bearing Grease 2
3 Blade Spindle Grease
Δ
3
4 Pivot Assembly, Tilt-Up Deck Grease 4
5 Deck Support Arm Socket Grease 2
6 Right Angle Gearbox Oil*
Δ
1
7 Universal Joint Shaft Assembly Grease** 1(2
Δ
)
8 Dolly Wheel Retract Oil
Δ
1
Lever and Linkage
9 Dolly Wheel Pivot Grease
Δ
1
10 Idler Arm Pivot Grease
Δ
1
11 Blade Drive Gearbox Oil* 2
12 Tee Gearbox, Deck Oil* 1
13 Body Hinge Point Oil 2
14 Steering Lever Pivot Grease 4
15 FSC Actuator Rod Pivot Pins Oil 2
16 (FSC) Friction Body Pivot Grease 1
17 FSC Lever Pivot Grease 1
18 Deck-to-PTO Coupling Grease 1
(Grease Spline Slide Area)
19 Deck Support Arm Pivot Grease 2
20 Gear Axle Oil*** 2
21 Universal Joint Tube Assembly Grease** 1
22 Parking Brake Lever Grease 1
23 Universal Joint Quick Connect Grease 1
Spline (Grease Slide Area)
24 Belt Tightener Pivot, Grease 1
Ground Drive
25 PTO Clutch Lever Pivot Grease 1
26 Clutch Actuator Push Rod Grease 2
27 Brake Band Pivot Pin (Clevis) Oil 1
28 Belt Tightener Pivot, Grease 1
PTO Clutch
29 Throttle Control Cable Ends Oil 2
30 Belt Tightener Pivot, Grease 1
Jackshaft Drive
31 Cold Start Lever Grease 1
32 Catcher Hinge Point Oil 2
33 Rear Wheel Bearing Grease 2
34 Engine Dipstick / Oil Filler Oil*** 1
35 Belt Tightener Pivot, Grease 1
Blower Drive (GHS Model Only)
36 PTO Gearbox Dipstick Oil*** 1
37 Hydrostatic Drive Oil*** 2
38 Throttle Control Pivot Oil 1
* Gearboxes are permanently lubricated and sealed re-
quiring no scheduled lubrication. Oil level should be
checked only when an oil leak is noted. Refer to Mower
Deck Gear box Lubrication in this section.
** Grease every twenty-ve (25) hours.
*** Refer to Gear Axle Lubrication, Engine Oil, Tractor
PTO Gearbox Lubrication, and Hydrostatic Trans-
mission Fluid in this sec tion.
Δ
Belt Driven Decks Only
NOTE: DC42 and DS62 Tilt-Up Decks are shown for reference.
For other Deck Lubrication Points, Refer to Deck and
Carrier Frame Illustrated Parts Manual.

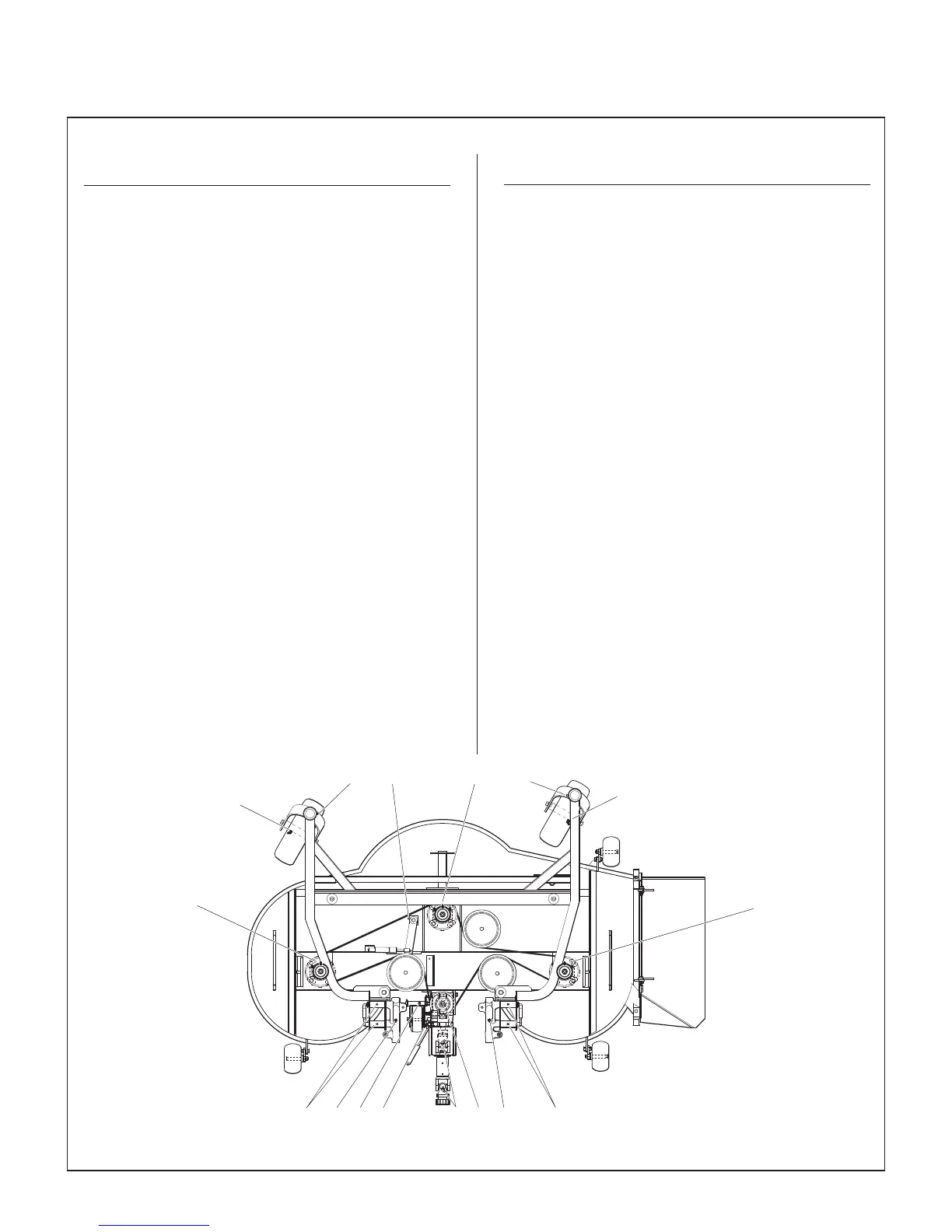

Lubrication Points for Optional Belt Driven Decks (DS62 Shown)
3
4 895 7 6 5 4
1
3
2
1
2
3
10
