Assembly Instructions
21

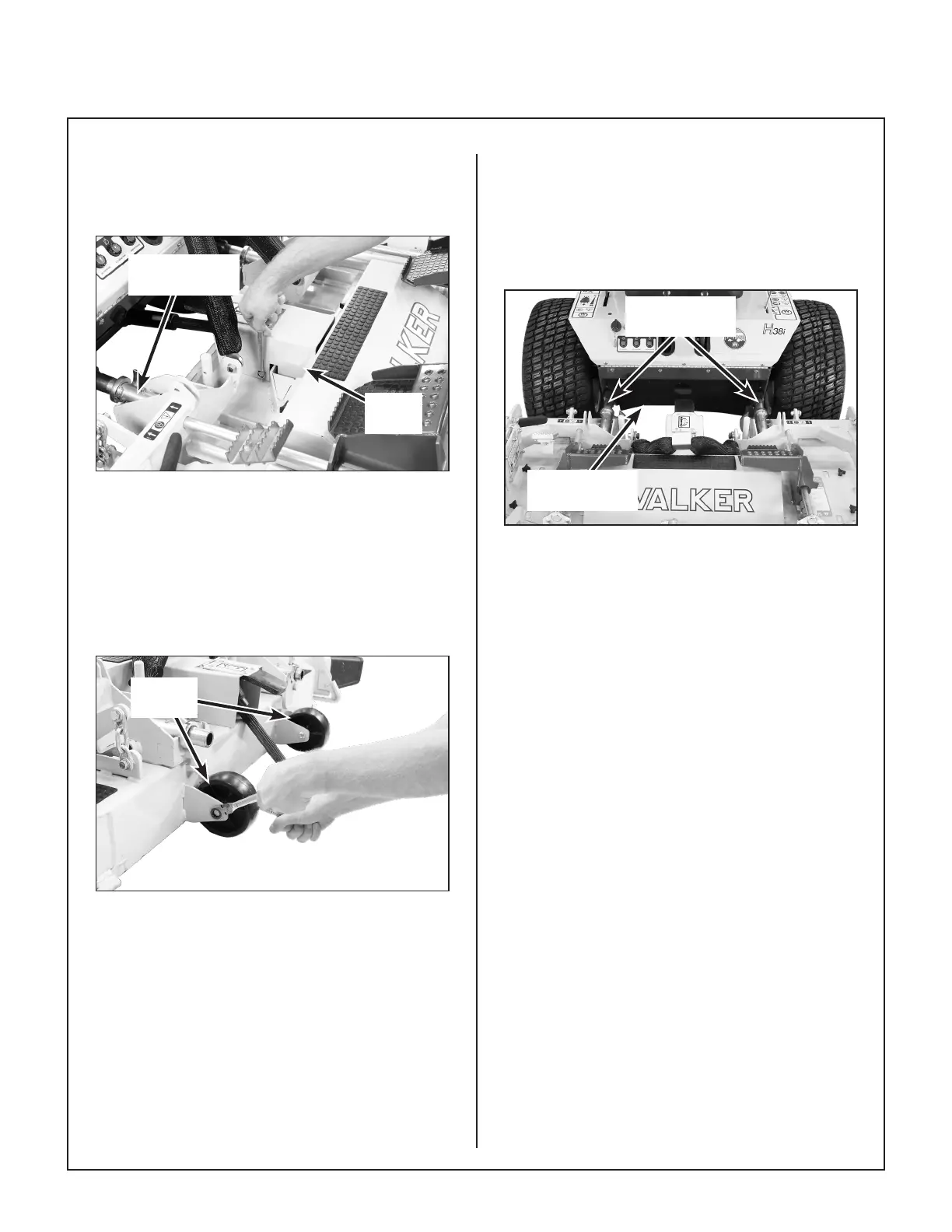

PTO Shaft Guard Installation
Position the shaft guard as shown and mount with
two (2) 1/420 x 1/2 in. bolts.
Attach
Guard
Carrier Frame
Tube Socket
PTO Shaft Guard Installation
Tilt-Up Roller Wheel Installation
Mount the two (2) tiltup roller wheels on the brack
ets on the rear skirt of the deck housing using the
axle spacer tube, 3/816 x 3 in. bolt and 3/816 Whiz
locknut. Tighten the bolt until the wheel rolls freely,
but is not loose.
Roller
Wheel
Roller Wheel Installation (Typical, DS60 Shown)
Mower Deck Installation on Tractor
Deck Installation
1. Lightly grease each deck support arm (2) on the
tractor. Refer to Mower Deck Installation
photo for location of deck support arm.
Deck Support
Arms
Rubber Debris
Guard
Mower Deck Installation
2. First, engage the LH deck carrier frame tube
socket on the LH tractor support arm and then
the RH arm into the RH tube socket. Slide the
deck onto the support arms and install lynch
pins to secure deck. Two (2) lynch pins are in
cluded in Owner’s Packet of materials.
3. Retract the springloaded quick disconnect ring
on the PTO Coupler and insert the Coupler
Installation Tool (provided in Owner’s Packet)
as shown in the following photos.
NOTE: The Coupler Installation Tool is provided
for convenience, but is not required for installa
tion.
4. Unhook lower edge of rubber debris guard and
raise for access to the tractor PTO shaft. Refer
to Mower Deck Installation photo for location
of debris guard.
