Operating Instructions
28

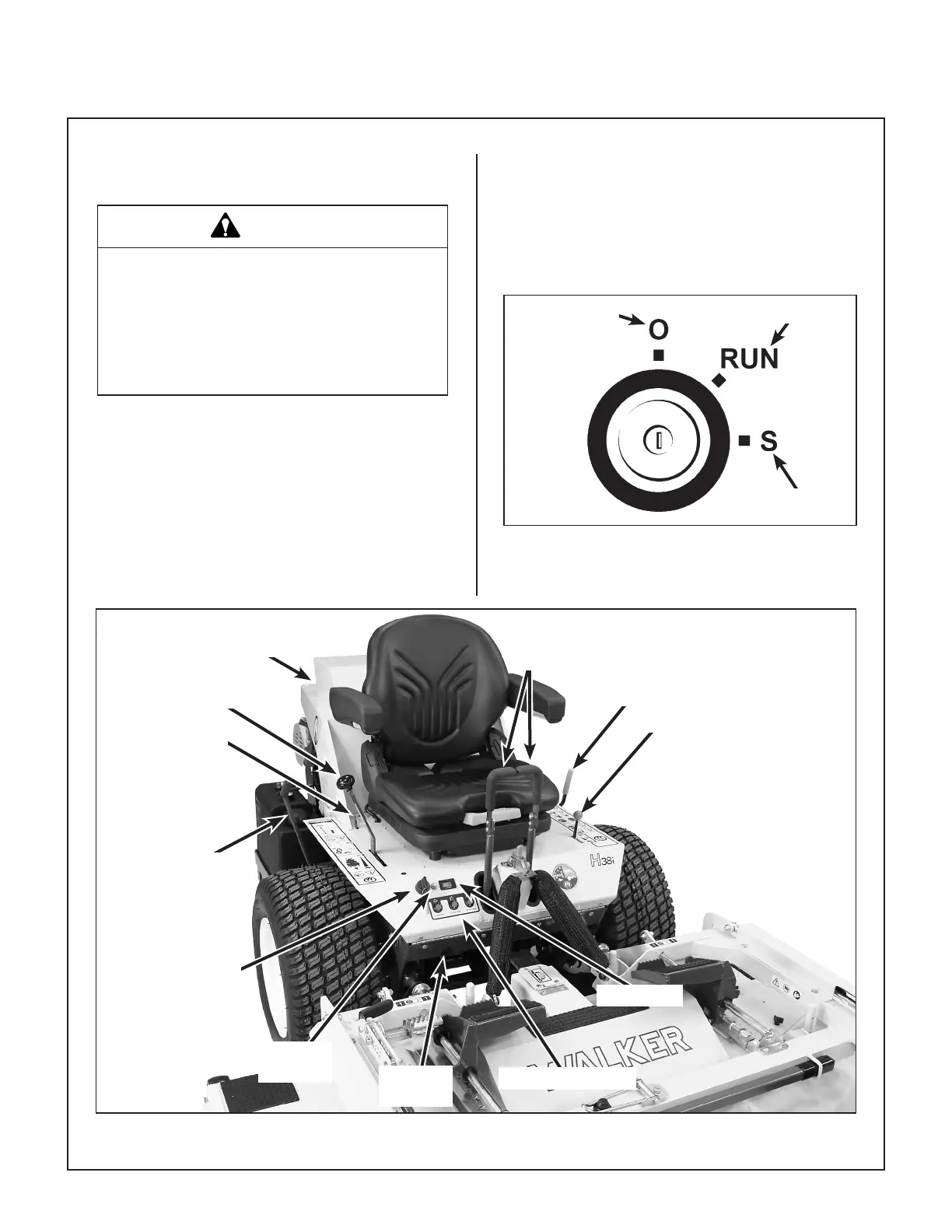

CONTROL IDENTIFICATION, LOCATION, AND
FUNCTION
CAUTION
Before operating the mower, become fa-
miliar with the location and function of all
operator controls. Knowing the location,
function, and operation of these controls
is important for safe and efcient opera
tion of the mower.
Ignition Switch
The ignition switch is located on the right front of the
body and is used to start and stop the engine. The
switch has three positions: “O” is the OFF position,
ON (RUN) is the position the key returns to after
starting, and “S” is the START position. When start
ing the engine, turn the key clockwise to the “S”
position. Do not hold the key in the “S” position
longer than 10 seconds.
If the engine does not start, return the key to the “O”
position for at least 60 seconds before making a re
start attempt. Prolonged cranking can damage the
starter motor and shorten battery life. Release the
key when the engine starts, and it will return to the
ON (RUN) position. To stop the engine, rotate the
key counterclockwise to the “O” position.
OFF
ON
START
Ignition Switch
Operating Controls
Parking
Brake
Blade Clutch
(PTO)
Throttle
Steering
Levers
Body Lift Handle
(Not Visible)
Ignition
Switch
Forward Speed
Control (FSC)
Body
Latch
Warning
Horn
Warning Lights (3)
Hourmeter
Circuit
Breaker
