Maintenance Instructions REPLACING/REPAIRING
REPLACING/REPAIRING
DANGER
To prevent accidental starting of the
engine when replacing parts or repairing
the machine, remove the key from the
ignition switch and disconnect the spark
plug wires.
IMPORTANT: ALWAYS use genuine factory re
placement parts. Substitute parts CAN result in
product malfunction and possible injury to the oper
ator and/or others.
Drive Belts
There are ve (5) individual drive belts on the ma
chine:
● Engine/PTO Belt (Matched Set of 3)
● Ground Drive Belt
● Mower Blade Drive
The belts may be removed and replaced using the
procedures described on the following pages.

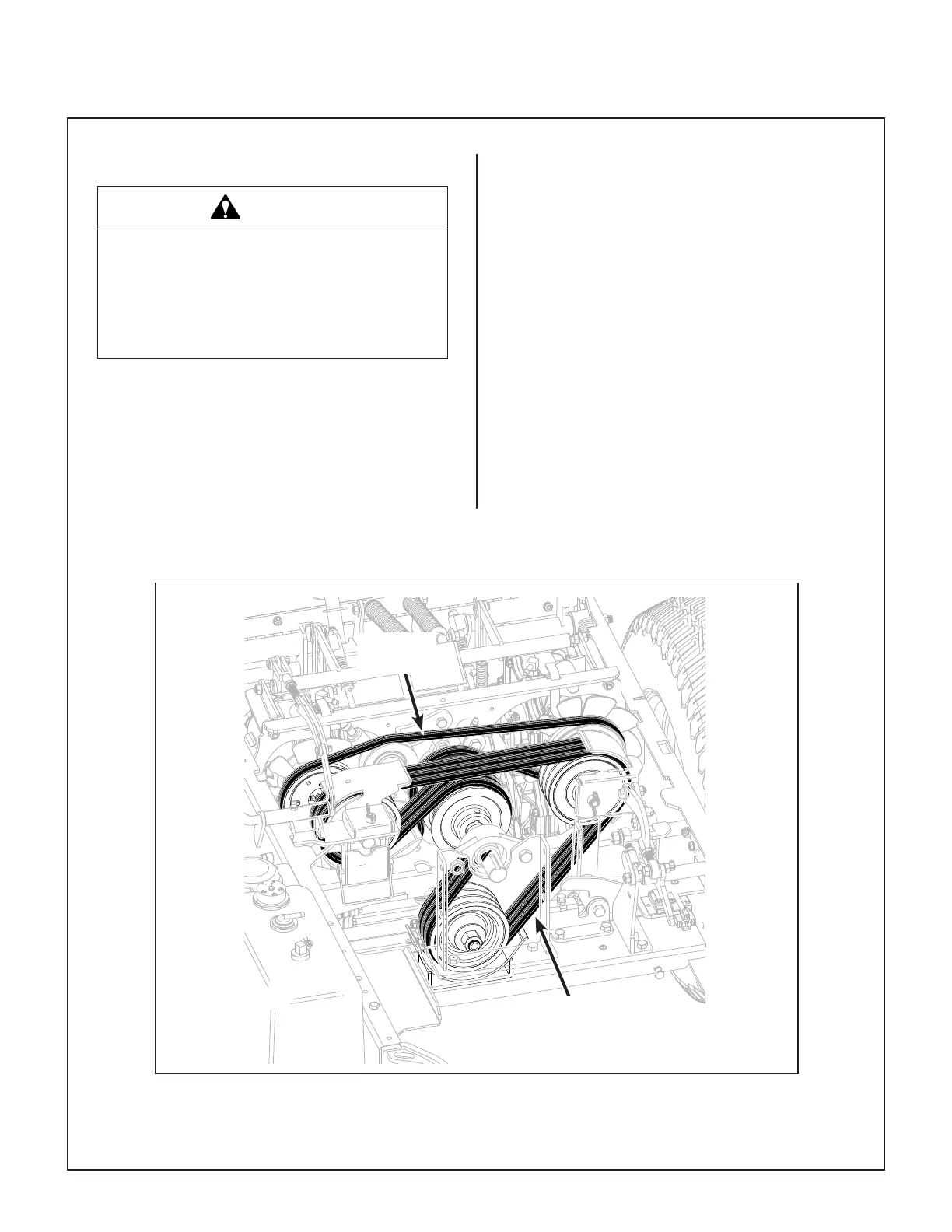

Belt Locations (Engine Hidden for Clarity)
Ground
Drive Belt
Engine/PTO Belts
(Matched Set of 3)
To Next Page
