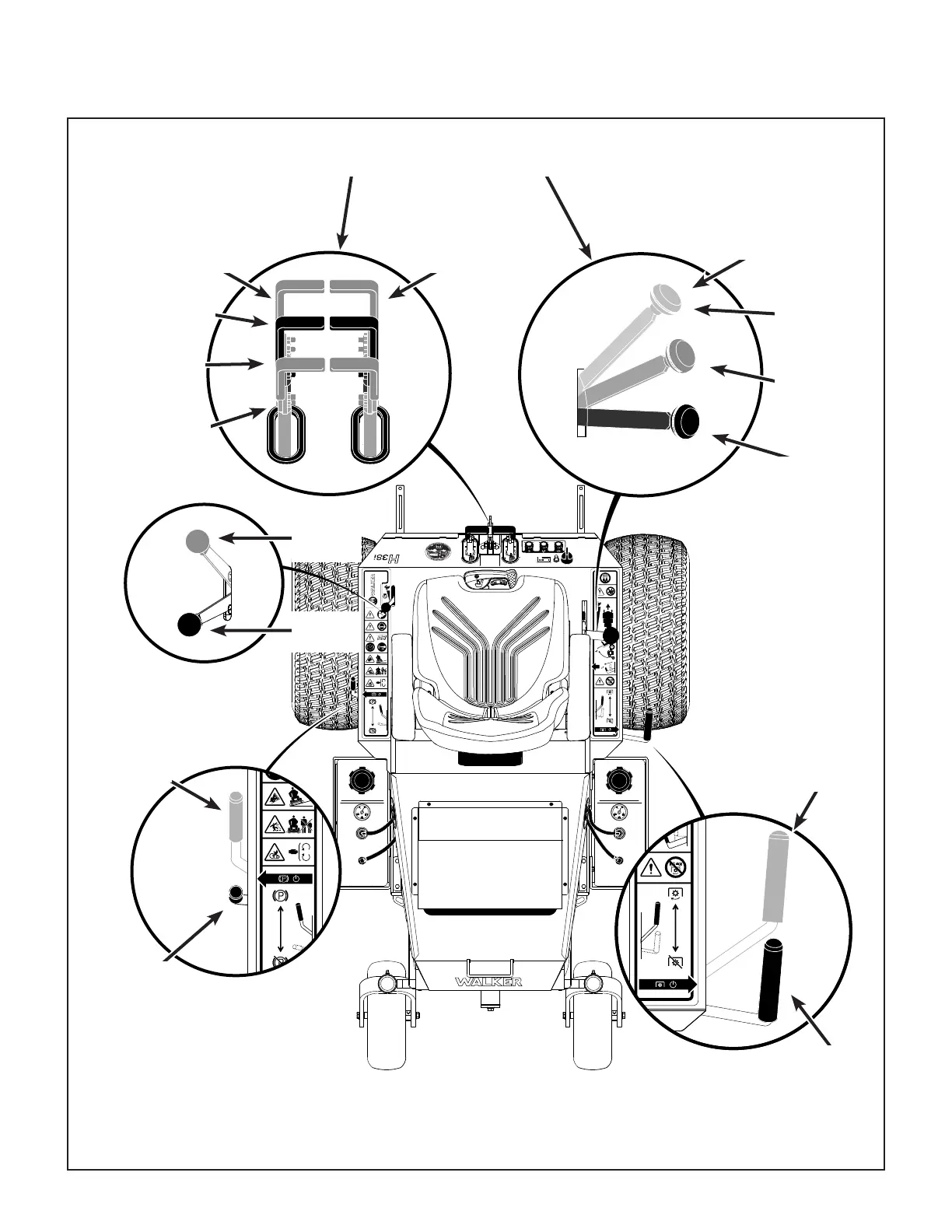

Operating Controls (Top View from Drivers Point of View)
BLADE CLUTCH
(PTO)
PARKING BRAKE
THROTTLE
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
RIGHT WHEEL
STEERING LEVER
LEFT WHEEL
STEERING LEVER
Forward Position
(No Control Change)
NeutralPark
Position
Reverse Drive
Wheel Motion
Position
Idle
Position
Fast
Throttle
Position
Engaged
Position
Disengaged
Position
Disengaged
Position
Engaged
Position
FORWARD SPEED
CONTROL LEVER (FSC)
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
NeutralPark
Position
