Quick Start Guide

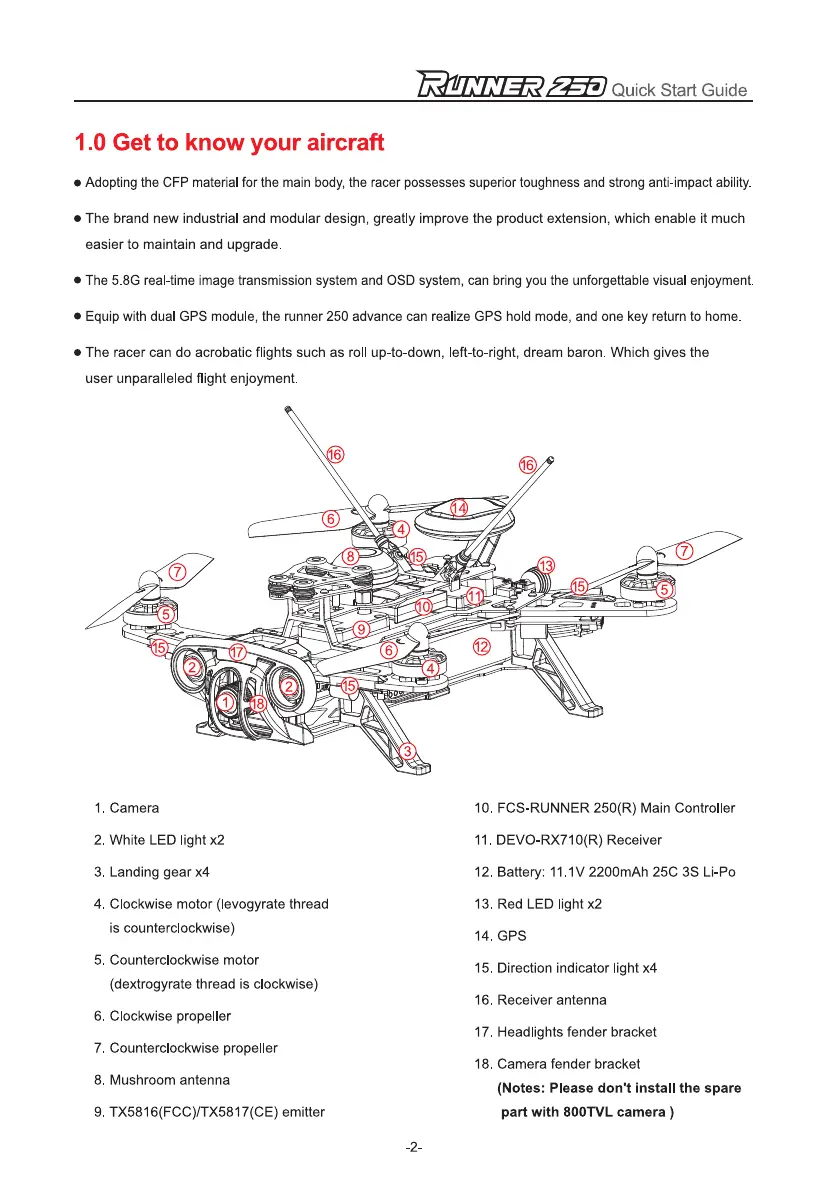

1.0 Get to know your aircraft
•
Adopting the CFP material for the main body, the racer possesses superior toughness and strong anti-impact ability.
•
The brand new industrial and modular design, greatly improve the product extension, which enable it much
easier to maintain and upgrade.
•
The 5.8G real-time image transmission system and OSD system, can bring you the unforgettable visual enjoyment.
•
Equip with dual GPS module, the runner 250 advance can realize GPS hold mode, and one key return to home.
•
The racer can do acrobatic flights such as roll up-to-down, left-to-right, dream baron. Which gives the
user unparalleled flight enjoyment.
1. Camera
10. FCS-RUNNER 250(R) Main Controller
2. White LED light x2
11. DEVO-RX710(R) Receiver
3. Landing gear x4
12. Battery: 11.1V 2200mAh 25C 3S Li-Po
4. Clockwise motor (levogyrate thread
13. Red LED light x2
is counterclockwise)
14. GPS
5. Counterclockwise motor
15. Direction indicator light x4
(dextrogyrate thread is clockwise)
16. Receiver antenna
6. Clockwise propeller
17. Headlights fender bracket
7. Counterclockwise propeller
18. Camera fender bracket
8. Mushroom antenna
(Notes: Please don't install the spare
9. TX5816(FCC)/TX5817(CE) emitter
part with 800TVL camera )
