La7=45ET
Quick Start Guide

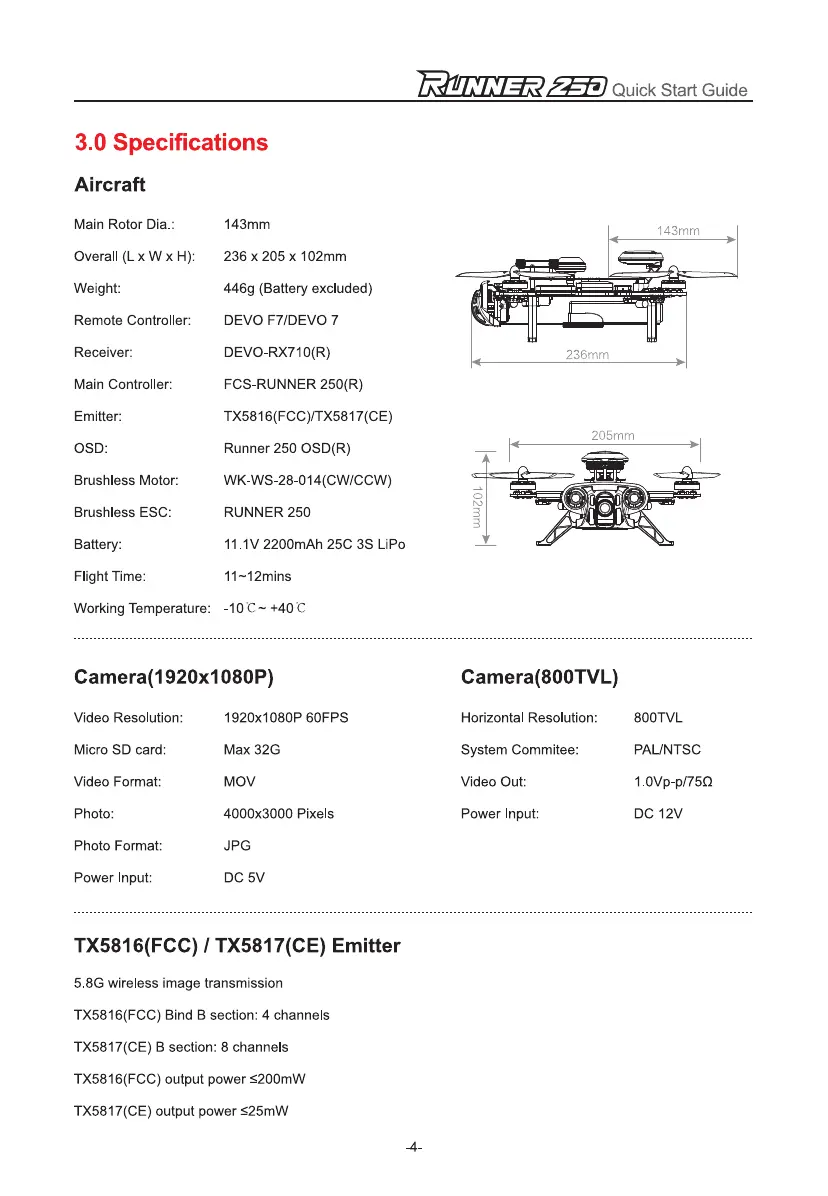

3.0 Specifications
Aircraft
Main Rotor Dia.:
143mm
143mm
Overall (L x W x H):
Weight:
Remote Controller:
Receiver:
Main Controller:
Emitter:
OSD:
Brushless Motor:
Brushless ESC:
Battery:
Flight Time:
Working Temperature:
236 x 205 x 102mm
446g (Battery excluded)
DEVO F7/DEVO 7
DEVO-RX710(R)
FCS-RUNNER 250(R)
TX5816(FCC)/TX5817(CE)
Runner 250 OSD(R)
WK-WS-28-014(CW/CCW)
RUNNER 250
11.1V 2200mAh 25C 3S LiPo
11-12mins
-iot-+4or
236mm
Camera(1920x1080P)
Camera(800TVL)
Video Resolution:
1920x1080P 60FPS
Horizontal Resolution:
800TVL
Micro SD card:
Max 32G
System Commitee:
PAUNTSC
Video Format:
MOV
Video Out:
1.0Vp-p/750
Photo:
4000x3000 Pixels
Power Input:
DC 12V
Photo Format:
JPG
Power Input:
DC 5V
TX5816(FCC) / TX5817(CE) Emitter
5.8G wireless image transmission
TX5816(FCC) Bind B section: 4 channels
TX5817(CE) B section: 8 channels
TX5816(FCC) output power 5200mW
TX5817(CE) output power 525mW
-4-
