11

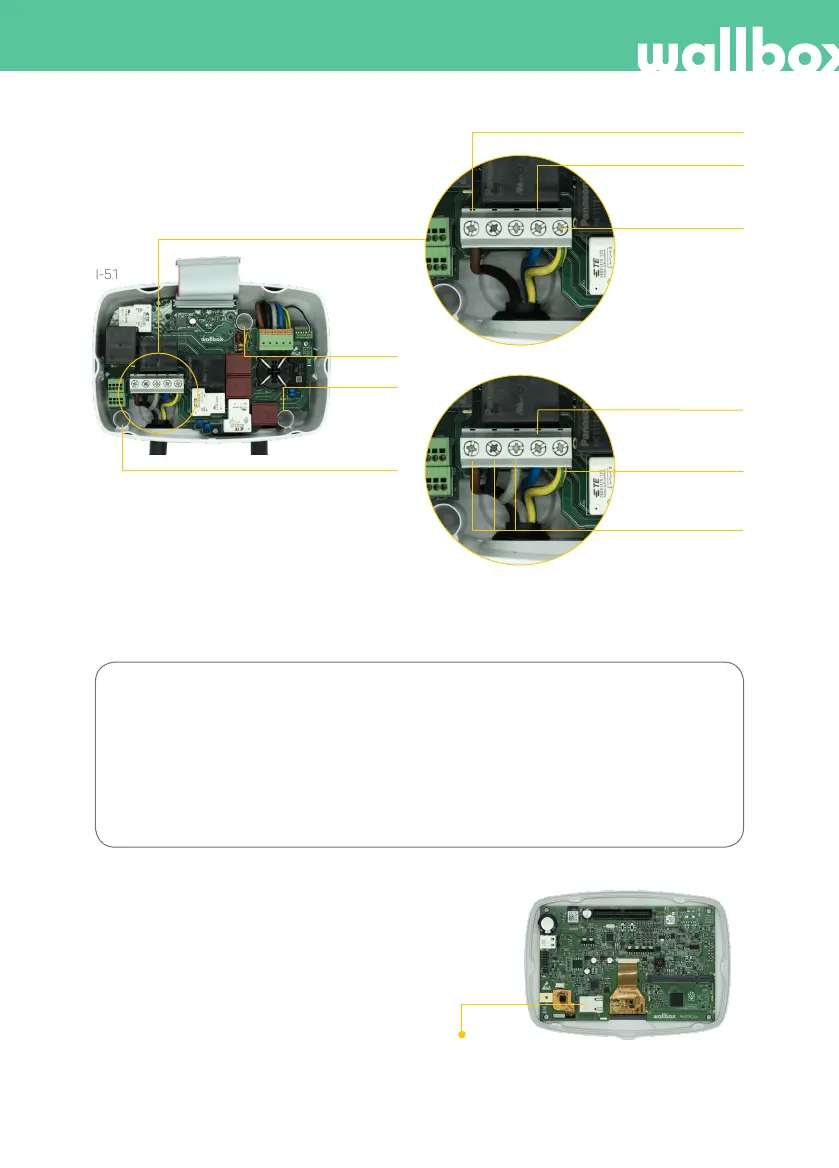

I-5.1
I-5.3: Three-phase setup (3P)
I-5.2: Single-phase setup (1P)
The colours shown are not subject to international
standards. Always check the correct connection.
L1 (Current line)
N (Neutral line)
N (Neutral line)
Protective earth
Protective earth
L1, L2, L3
(Current lines)
2. Screw
1. Screw
3. Screw
In the event that the supply scheme does not include a neutral line connection with a voltage lower than
145V, follow the next configuration steps:
Bi-phase setup (2P)
From left to right:
L1 (Current line)
N (Current line)
Protective earth
4. Ethernet conncetion (I-6)
The charger can be connected to the internet
using a built-in Ethernet port installed on the
module cover.
Step 4.1: Insert the Ethernet cable through
the bushing.
Step 4.2: Connect the cable to the Ethernet port.
I-6: Ethernet port
