Walter Surfox 203 - D) Connecting the Air Supply; E) Plugging in the Power Cord; F) Plugging in the Ground Clamp

D) CONNECTING AIR SUPPLY
Connect the air supply at the back of the machine. Note that the maximum allowed pressure is 150 PSI max.,
80 PSI min. (1000KPa). If the air supply is not plugged into the machine, the machine will still work but there
will not be any fume elimination.
E
) PLUGGING IN THE POWER CORD
When an ext
ension cord is needed, use w
ire size 14 (AWG) for up to 50 feet (1
5 meters) and size 12 (AWG)
for 50 to 100 feet (15 to 30 meters).
F) PLUGGING IN THE GROUND CLAMP
Plug the ground clamp at the
front of the unit. Attach the clamp to the work piece being cleaned. The cleaning
and passivating process will not work if the part is not properly grounded.
12
V
-
V- V
START-UP PROC
EDURE
START-UP PROCEDURESTART-UP PROC

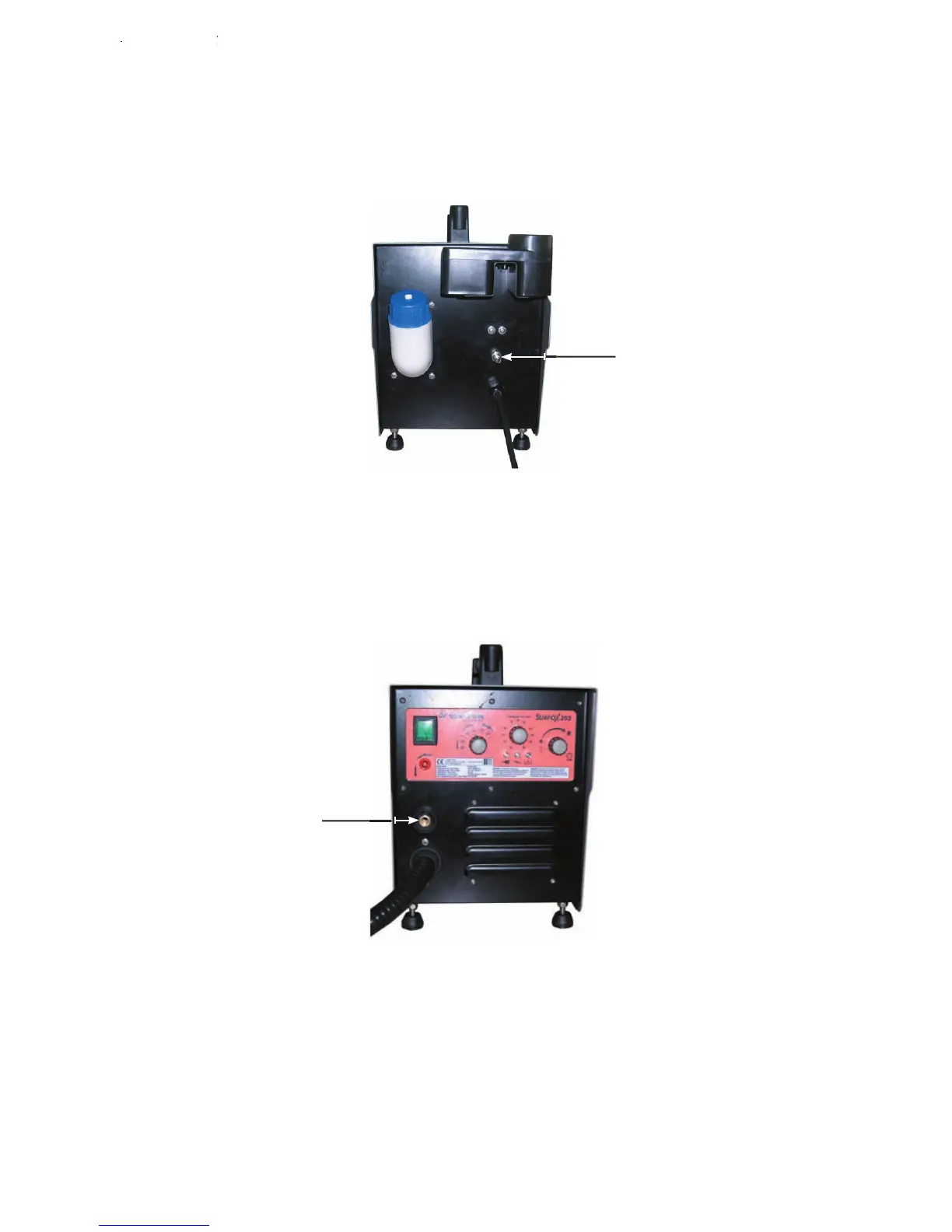

Air supply connector
Ground clamp
