Walther Systemtechnik S11 series User Manual

Rev. 1.4
Assembly Instructions – Spray Valve SMS-11
Page 25 of 28
Walther Systemtechnik GmbH – D 76726 Germersheim
Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91
http://www.walther-2000.de – info@walther-2000.de
2.1

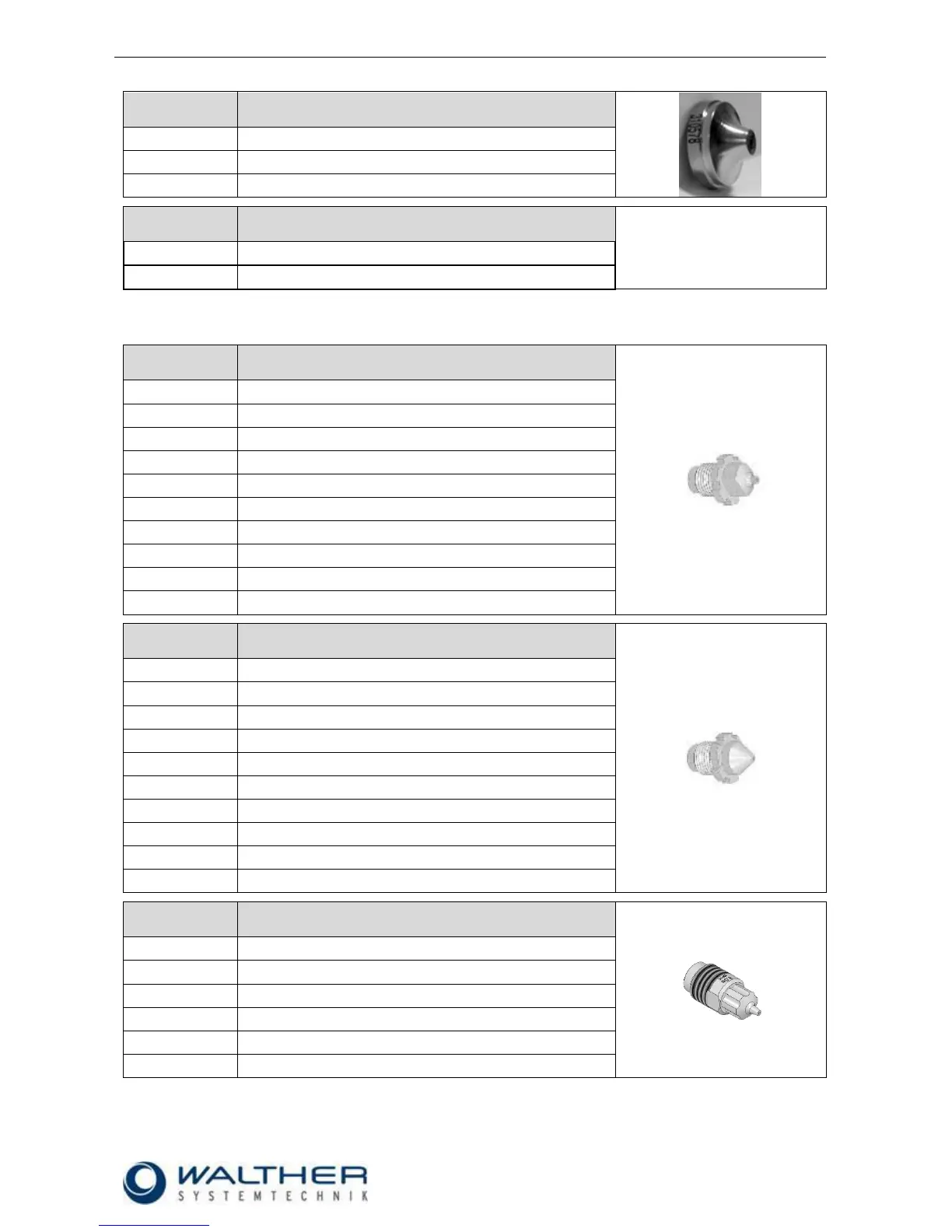

Marking Air cap, Round jet 8° (Ø20x18mm)
Article-No.
Description
97310578
Marking air cap, 0.2-0.5mm
97310727
Marking air cap, 0.8-1.0mm
2.1
Special spin air cap, round jet
Article No.
Description
97310197
Special spin 0.2-2.0mm
9.6 Article Numbers for Nozzles
3.0
Nozzle, Standard, stainless steel (Ø12x18mm)
Article-No.
Description
97210110
Nozzle, Standard, 0.2mm
97210111
Nozzle, Standard, 0.3mm
97210112
Nozzle, Standard, 0.5mm
97210113
Nozzle, Standard, 0.8mm
97210114
Nozzle, Standard, 1.0mm
97210115
Nozzle, Standard, 1.2mm
97210116
Nozzle, Standard, 1.5mm
97210117
Nozzle, Standard, 2.0mm
97210118
Nozzle, Standard, 2.5mm
3.0
Nozzle, KLS, stainless steel (Ø12x17.2mm)
Article-No.
Description
97210119
Nozzle, KLS, 0.2mm
97210120
Nozzle, KLS, 0.3mm
97210121
Nozzle, KLS, 0.5mm
97210122
Nozzle, KLS, 0.8mm
97210123
Nozzle, KLS, 1.0mm
97210124
Nozzle, KLS, 1.2mm
97210125
Nozzle, KLS, 1.5mm
97210126
Nozzle, KLS, 2.0mm
97210564
Nozzle, KLS, 2.5mm
3.0
Marking nozzle, stainless steel 8°(Ø8x18mm)
Article-No.
Description
97212055
Marking nozzle 0.2mm
97211875
Marking nozzle 0.3mm
97212025
Marking nozzle 0.4mm
97211461
Marking nozzle 0.5mm
97212146
Marking nozzle 0.8mm
