Introduction
15
Waltron User Manual 101-016-B.3
3041 Silica Analyzer
2 INTRODUCTION
2.1 ANALYZER DESCRIPTION
The Waltron 3041 is an on-line analyzer for batch analysis (sequence of sampling, analysis and
result processing), using a colorimetric method. The analyzer is assembled in an enclosure with a
lockable door. The LIQUIDS enclosure includes all the components involved in sample and
reagent flows as well as mixing and reaction stages (sampling pump, colorimetric reaction cell,
reagent micropumps). The ELECTRICAL enclosure includes the main power supply, the
controller PCB assembly, and the touchscreen interface.

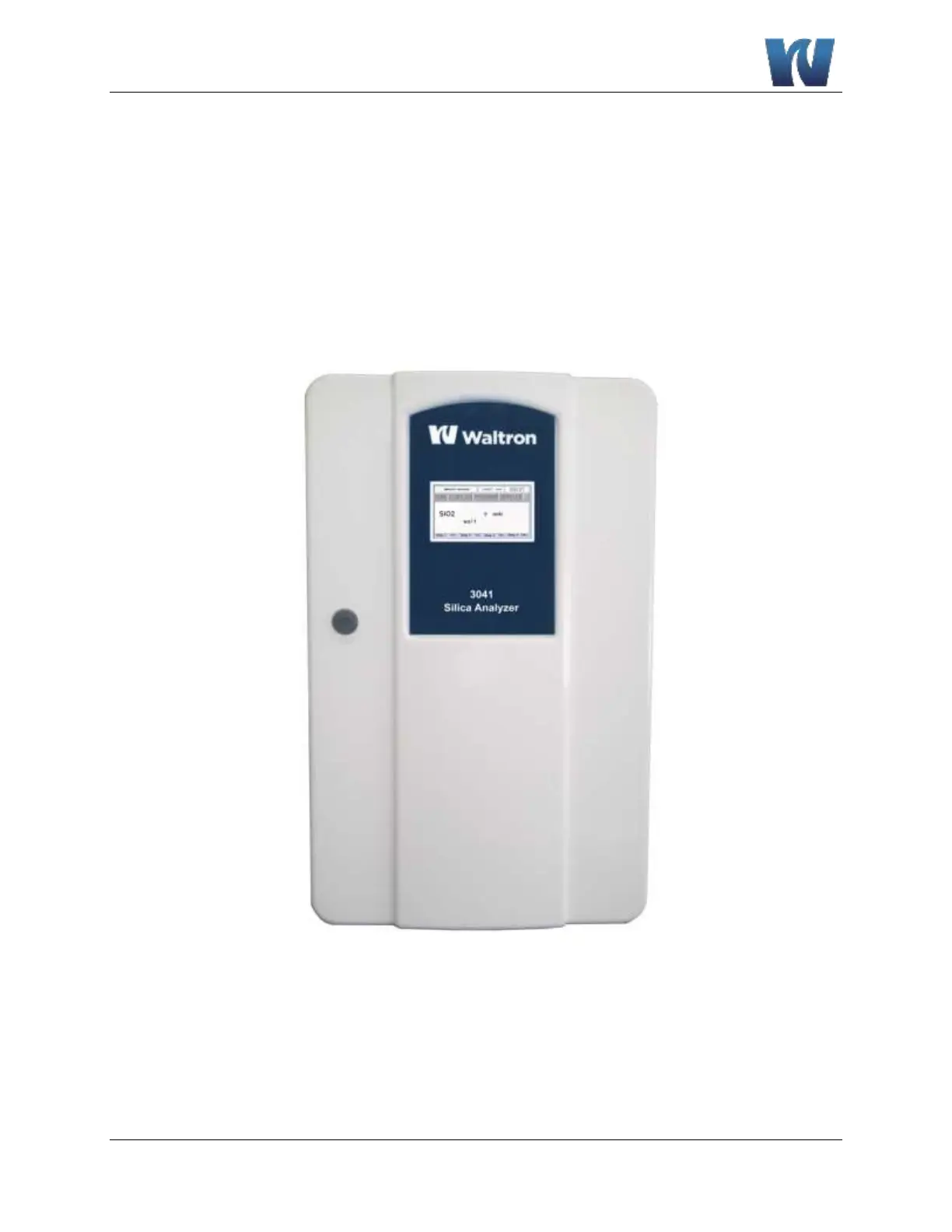

Figure 2.1: Waltron 3041 Analyzer front view.
