3.7 REAGENT INFORMATION
The Waltron 3041 Silica Analyzer uses 3 reagents for the colorimetric measurement.
 Reagent 1: Molybdate Reagent
 Reagent 2: Oxalic Reagent
 Reagent 3: Reducing Reagent
3.8 REAGENT HOLDING BRACKET
Use the drawing below to mount the reagent bracket below the analyzer.
NOTE:
Mount the bracket below the analyzer so that the base of
the bracket is at least 14 inches (40 cm) below the analyzer,
but no more than 30 inches (75 cm) below the analyzer. If
space is limited, the reagent shelf can be mounted to either
side of the analyzer up to the limit of the tubing length from
the pumps.

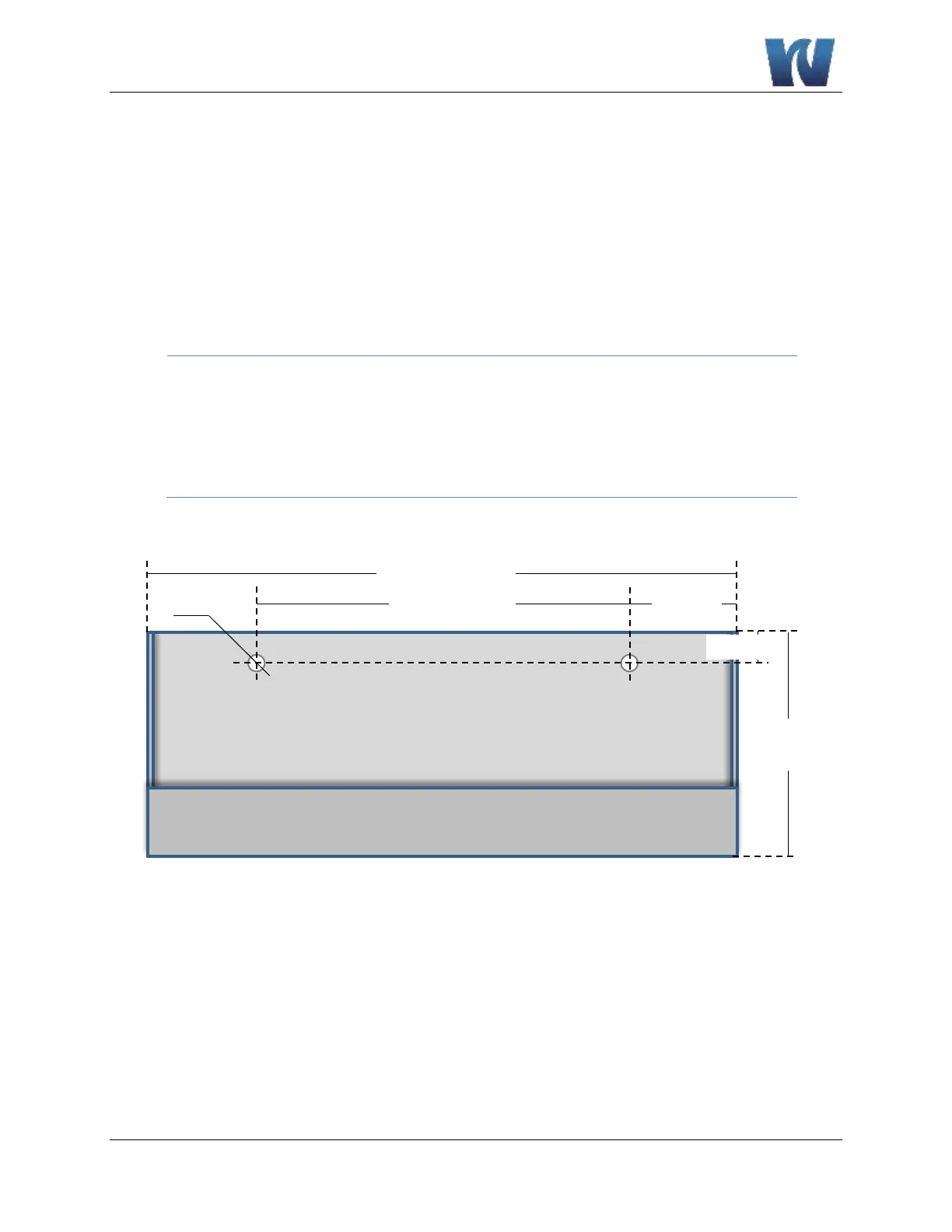

Figure 3.4: Mounting schematics for the reagent holding bracket.
19.50” (496 mm)
Ø 0.48”
(12 mm)
1.0” (25 mm)
7.00”
(178 mm)
4.00”
(102 mm)
11.50” (292 mm)
