Waltron 3041 - Figure 2.6: Mounting Dimensions for the Fast Loop Reservoir

55 pages

Save Page as PDF

To Next Page

To Previous Page

Introduction

Waltron User Manual 101-016-B.3

3041 Silica Analyzer

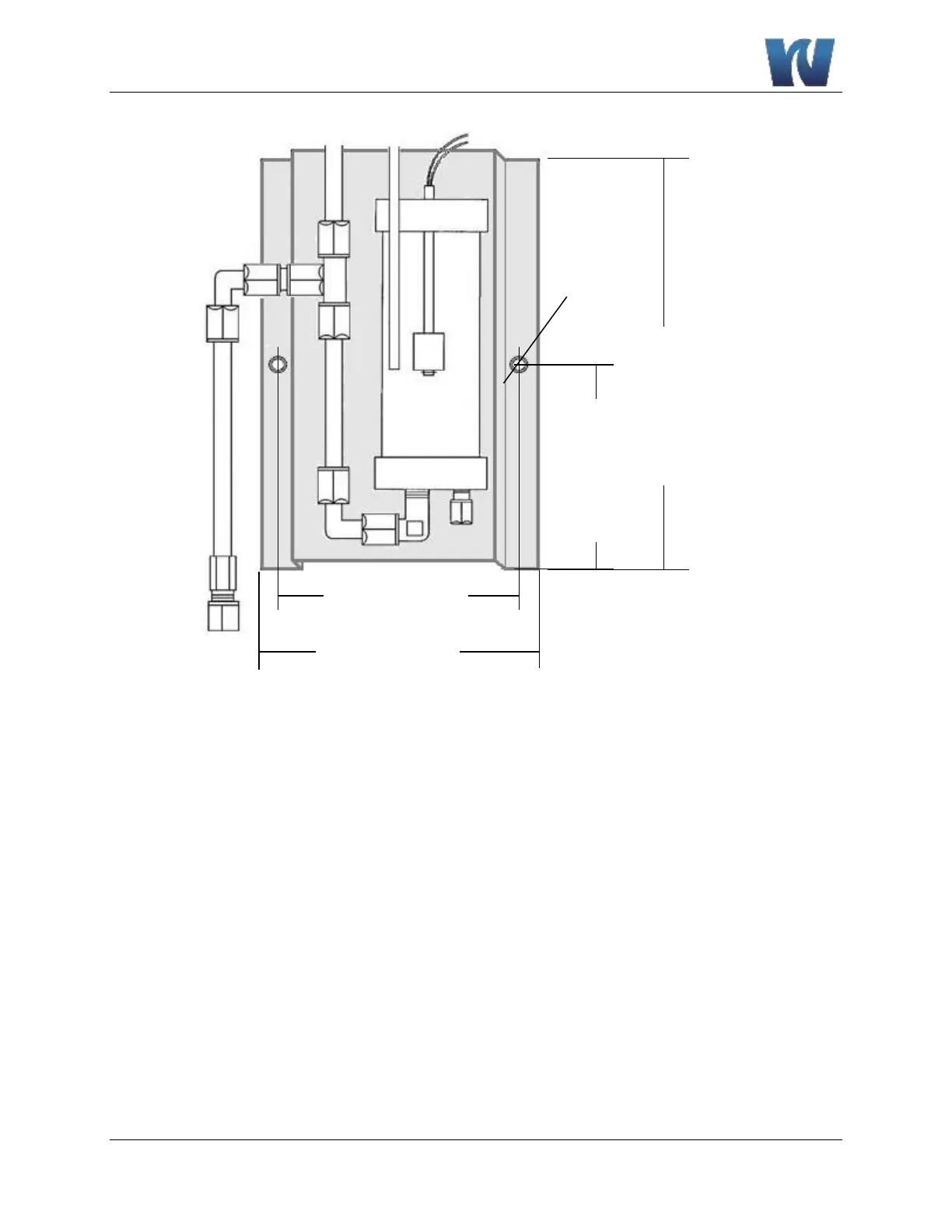

Figure 2.6: Mounting dimensions for the fast loop reservoir.

10.36” (259 mm)

5.84” (146 mm)

5.24” (131 mm)

5.20” (130 mm)

Ø 0.26”

(6.5 mm)
