2.1
FUNCTIONAL
OVERVIEW
CHAPTER
2
THEORY
OF
OPERATION
3402
Workstation
logic
resides
on
two
circuit
boards,
PCA
210-7545 and
PCA
210-7744
(figure
2-1).
The
major
logic
functions
for
each
board
are:
210··7545-2
PCA
o
Instruction/Bus
control(CPU)
o Video
Display
Logic
o
CRT
M1~mory
o Keyboard Logic
210-7744
PCA
(Models
A,
lA,
2A
and
3A
depending
on
memory
size)
o Main
Memory
o Data Link
These
functions
are
interconnected
by
the
System Address
Bus
and
the
System
Data
Bus
.
If
the
workstation
contains
the
TC
option,
a
third
PCA
--
210-7541--
will
be
located
in
slot
number 3
of
the
motherboard.
See
section
2.4
for
more
information
on
the
TC
option.
ZBOA
CPU
TIMING
15 9 4
4MHz
PARITY
GENtCHK
IEVENI
KEYBOARO
INTERFACE C
1
I
KEYBOARD
ADDRESS
BUS
AO
A
15
BEEP
CLICK
TO
CR1
DATA
00·07
OUT
DECODE
MEMORY
CONFIG
IDIPSW I
~
\,.
r ...;:w:'.. l
I I
I
~1
1
~.~~~~~
I
I
~:~·~
I
I
..
~
..
I I
I I
I
""'
?
MAIN
MEMORY
48K
OR
•••
OMA ·
CONTROL

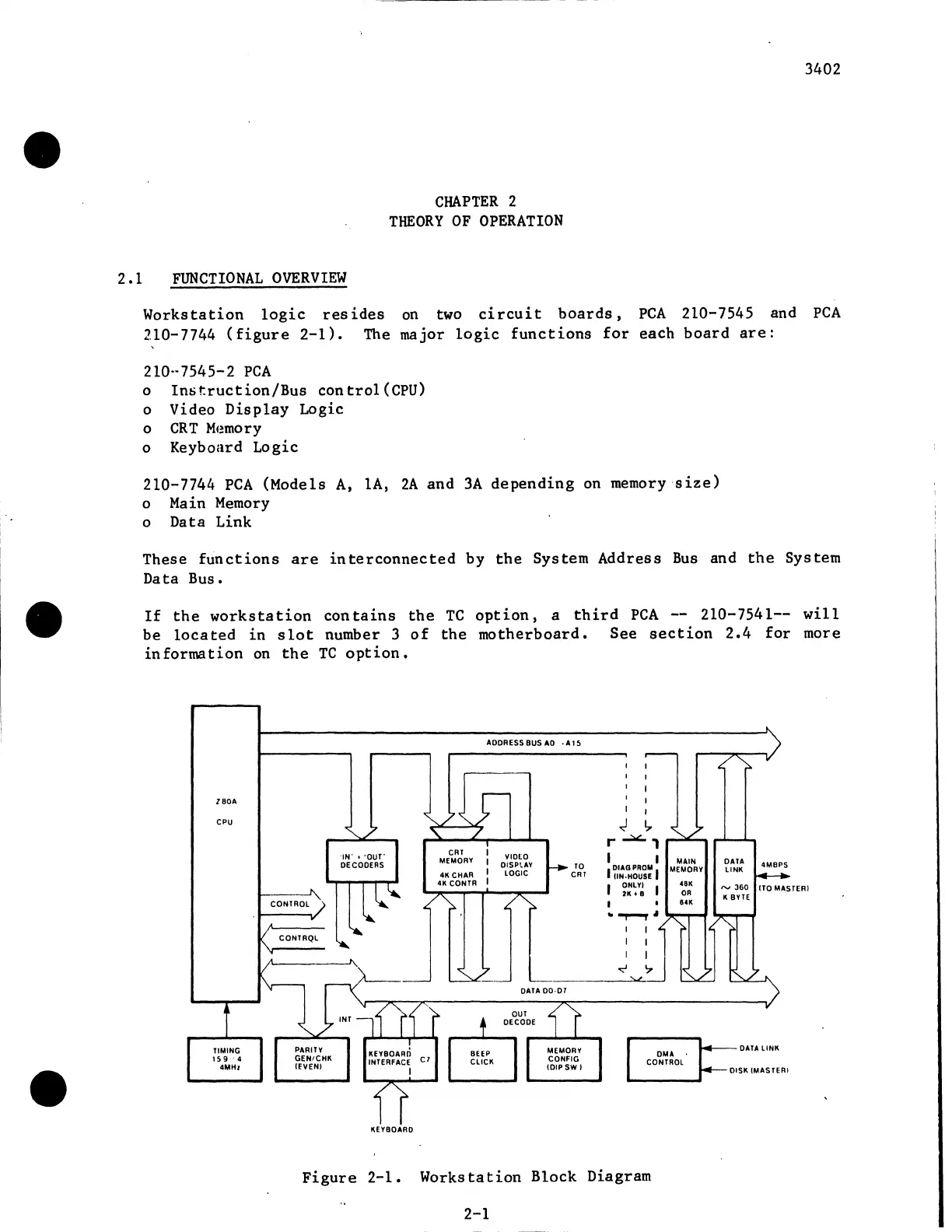

Figure
2-1.
Workstation
Block Diagram
2-1
DATA
LINK
,.....,
J60
K
BYTE
4MBPS
ITO MASTER!
