3402

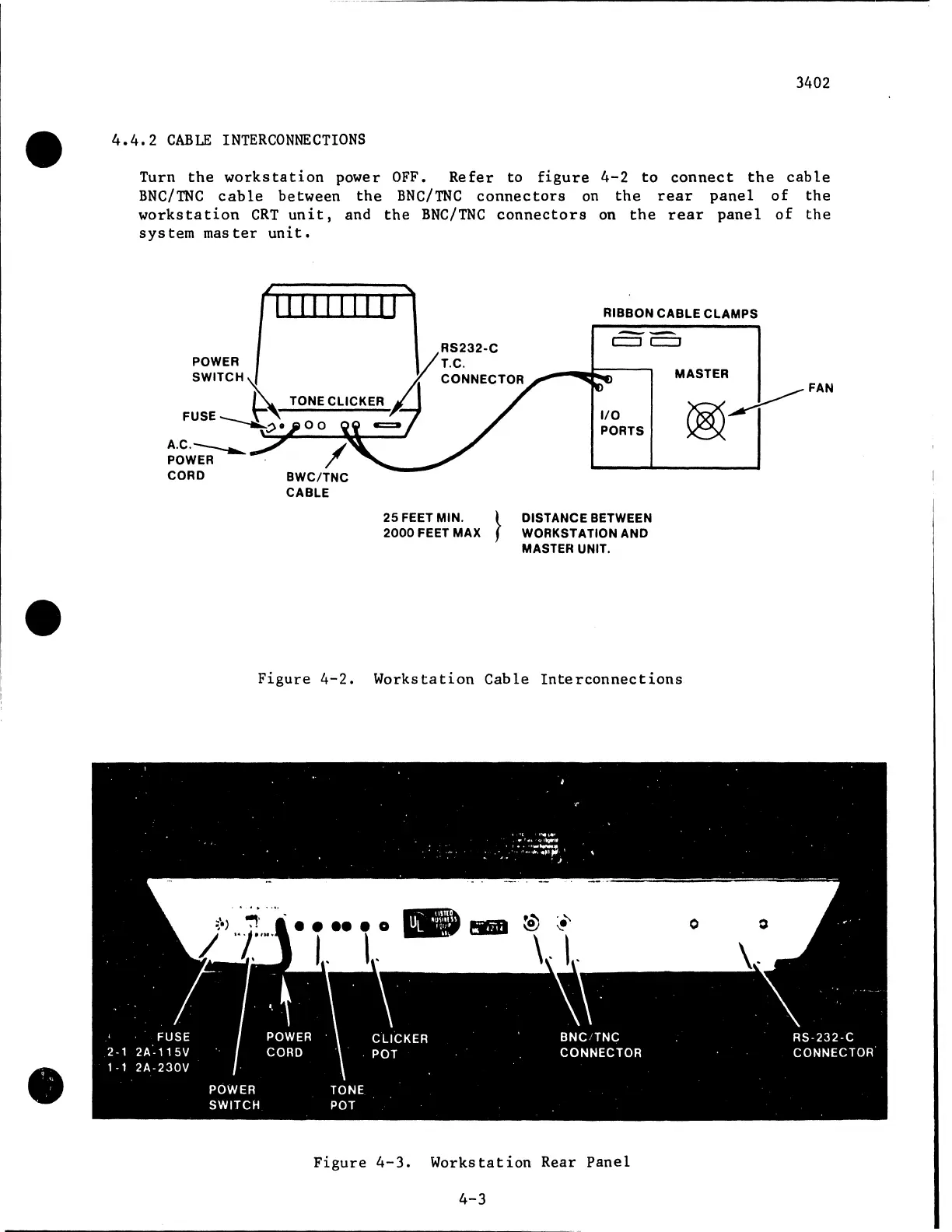

4.4.2 CABLE INTERCONNECTIONS
Turn the workstation power OFF. Refer to figure 4-2 to connect the cable
BNC/TNC cable between the BNC/TNC connectors on the rear panel of the
workstation CRT unit, and the BNC/TNC connectors on the rear panel of the
system master unit.
25 FEET MIN. }
2000 FEET MAX
RIBBON CABLE CLAMPS
1/0
PORTS
DISTANCE BETWEEN
WORKSTATION AND
MASTER UNIT .
MASTER
~FAN
®
Figure 4-2. Workstation Cable Interconnections
Figure 4-3. Workstation Rear Panel
4-3
