3.1
INDICATORS
AND
CONTROLS
CHAPTER
3
OPERATION
3402
The
adjustment
controls
for
the
5536
workstations
are
located
on
the
front
and
rear
of
the
cabinet.
Th£
function
and
location
of
each
control
is
defined
below.
Front
of
workstation
-
on
front
panel
(figure
3-1)
BRIGHTNESS
left
(Brightness
can
also
be
adjusted
with
INTENSITY
GAIN,
on
top
of
PCA
210-7545.)
CONTRAST
right
Rear
of
workstation
-
next
to ac
line
(figure
3-2)
--SPEAKER (Tone)
le
ft
CLICKER
right

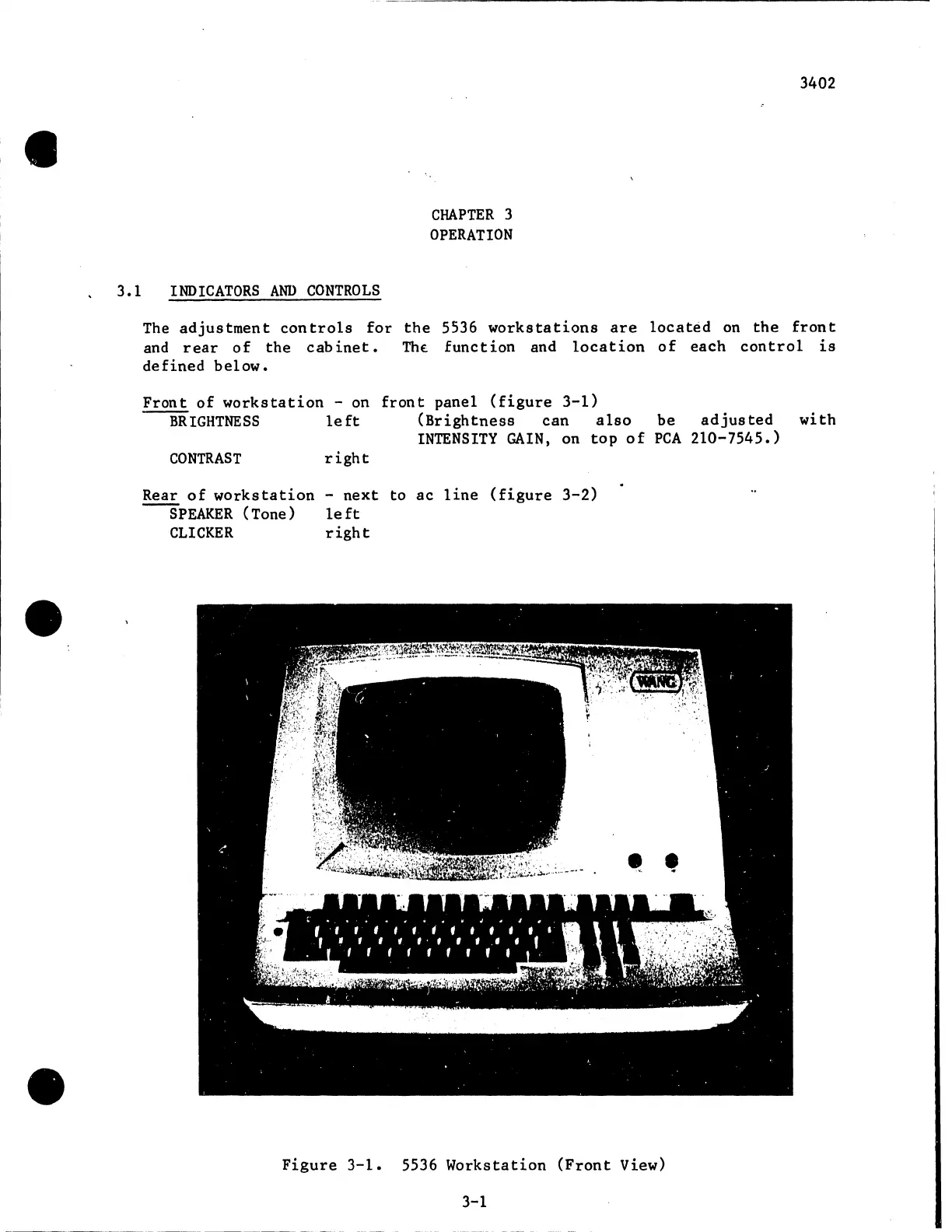

Figure
3-1.
5536
Workstation
(Front
View)
3-1
