8.4 TC TROUBLESHOOTING
The troubleshooting flowchart provided on these three pages is intended as
an aid for systematic investigation, diagnosis, and repair of the Tele-
communications workstations described in this manual.
SfART
REFER TO
WORKSTATION YES
TROUBLESHOOTING
FIGUREB-1.
1.
2.
CHECK SWITCH
SETTINGS W.S. + T.C .
W.S.SWITCH
YES
SETTINGS
SECTION 4.4.3
T.C.SWITCH
SETTINGS
SECTION 4.4.3
1. ~ PCA SEATING
2. RS-232 CABLING
3. MODEM CONNECTIONS
4. MODEM "ON"
5. MODEM CABLING

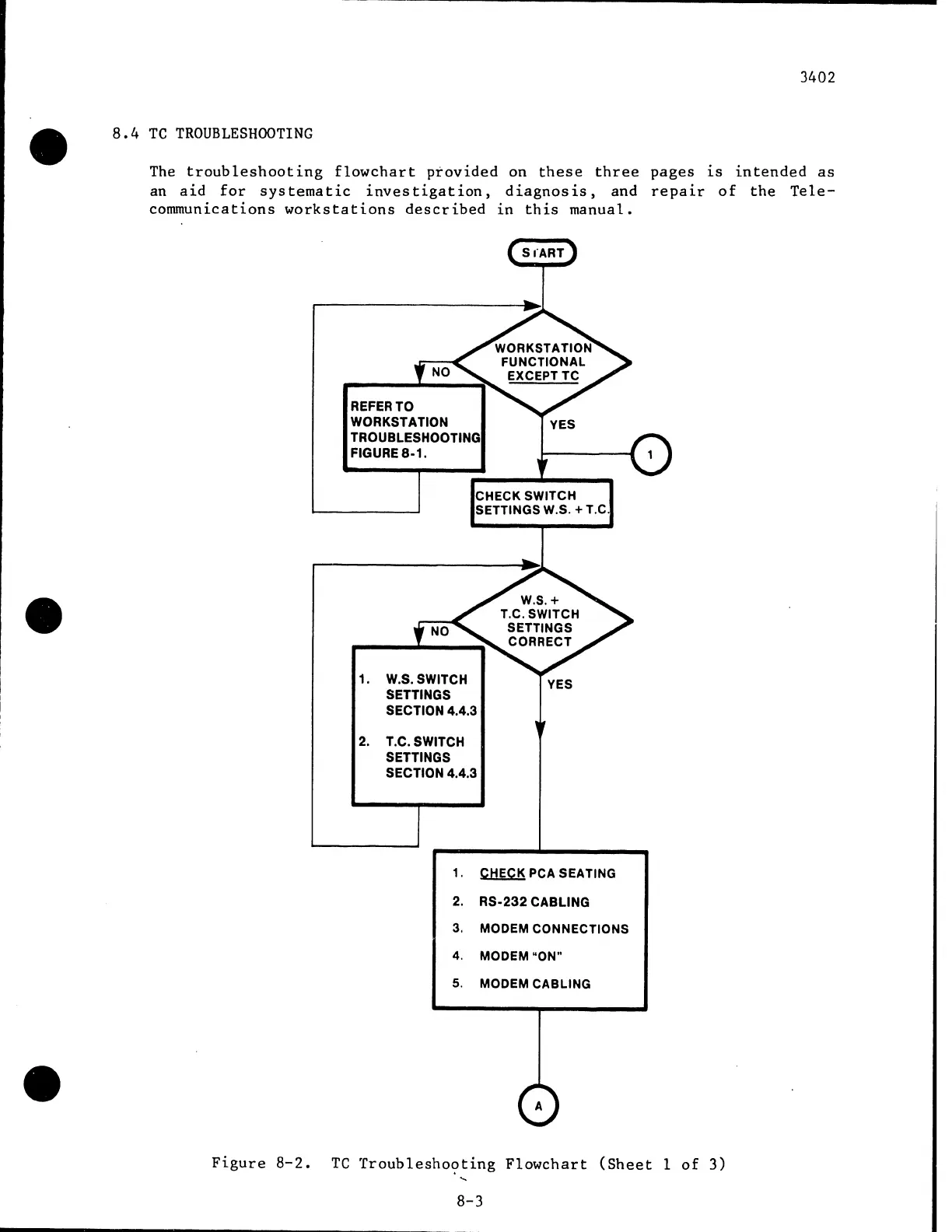

Figure 8-2. TC Troublesho?ting Flowchart (Sheet 1 of 3)
