4.4.3 SWITCH SETTINGS
o The CPU/CRT PCA ( 210-7545-2) has two DIP type switches, labeled SWl and
SW2. SWl is the scan select switch described in section 4.4.1. SW2 is
the device type switch. Set the switches for the appropriate application
as shown in figure.4-4.

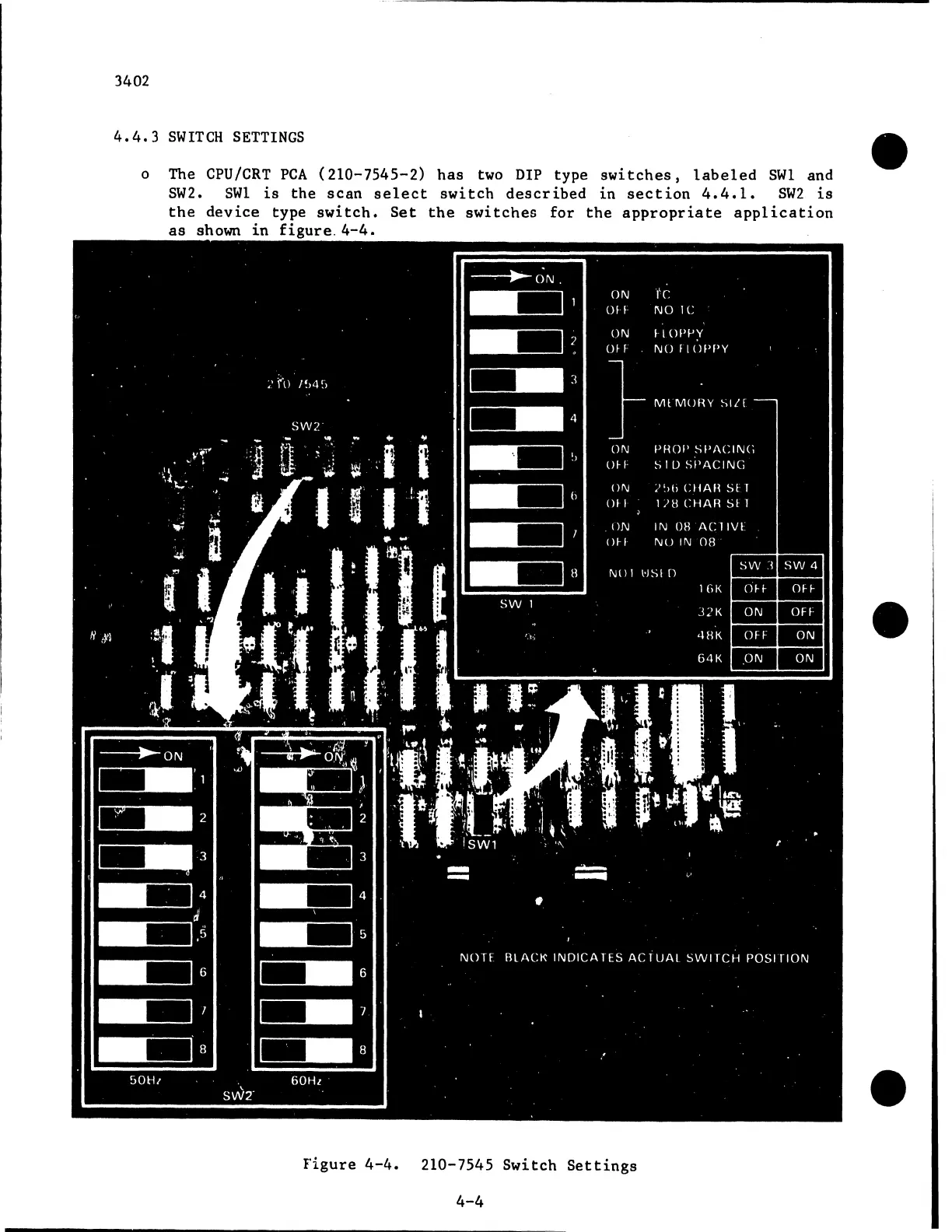

Figure 4-4. 210-7545 Switch Settings
